GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

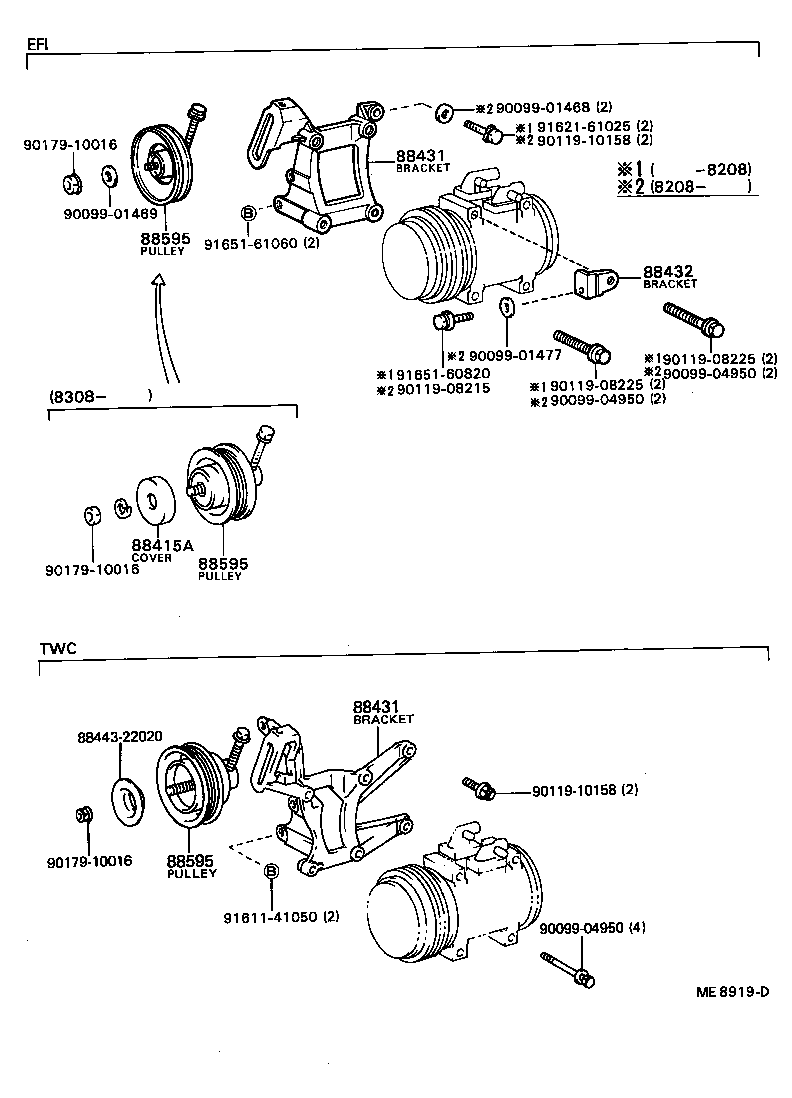

ILLUST NO. 3 OF 3(8003- )GX5#,61

Click highlighted areas on diagram

diagram 88415A 88431 88431 88432 8844322020 88595 88595 88595 9009901468 9009901469 9009901477 9009904950 9009904950 9009904950 9011908215 9011908225 9011908225 9011910158 9011910158 9017910016 9017910016 9017910016 9161141050 9162161025 9165160820 9165161060
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22140

GX5#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-22140

GX5#

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88437-22040

GX5#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

GX5#,MX51,TX50

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

GX5#,MX51,TX50

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

GX5#,MX51,TX50

 1
Common parts
88443-22020
90099-01468
90099-01469
90099-01477
90099-04950
90119-08215
90119-08225
90119-10158
90179-10016
91611-41050
91621-61025
91651-60820
91651-61060

ILLUST NO. 2 OF 3(8003- )

Click highlighted areas on diagram

diagram 88301 88301 88302 88310A 88320 88330 88330B 88330B 88330B 88330C 88330C 88403 8889914030
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-26010

GX5#,MX51

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-26010

GX5#,MX51

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22020

GX5#,MX51

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00920

GX5#

 1
99322-00880

GX5#..SDX,STR

 1
88320 - COMPRESSOR ASSY, COOLER
88320-22200

GX5#

 1
88330 - CLUTCH ASSY, MAGNET
88410-22030

GX5#,MX51

 1
88330B - BEARING, MAGNET CLUTCH
90099-10117

GX5#,TX50

 2
90099-10117

GX5#,MX51

 2
88330B - BEARING, MAGNET CLUTCH
90099-10117

GX5#,TX50

 2
90099-10117

GX5#,MX51

 2
88330B - BEARING, MAGNET CLUTCH
90099-10117

GX5#,TX50

 2
90099-10117

GX5#,MX51

 2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07113

GX5#,MX51

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07113

GX5#,MX51

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-22010

GX5#,MX51

 1
Common parts
88899-14030

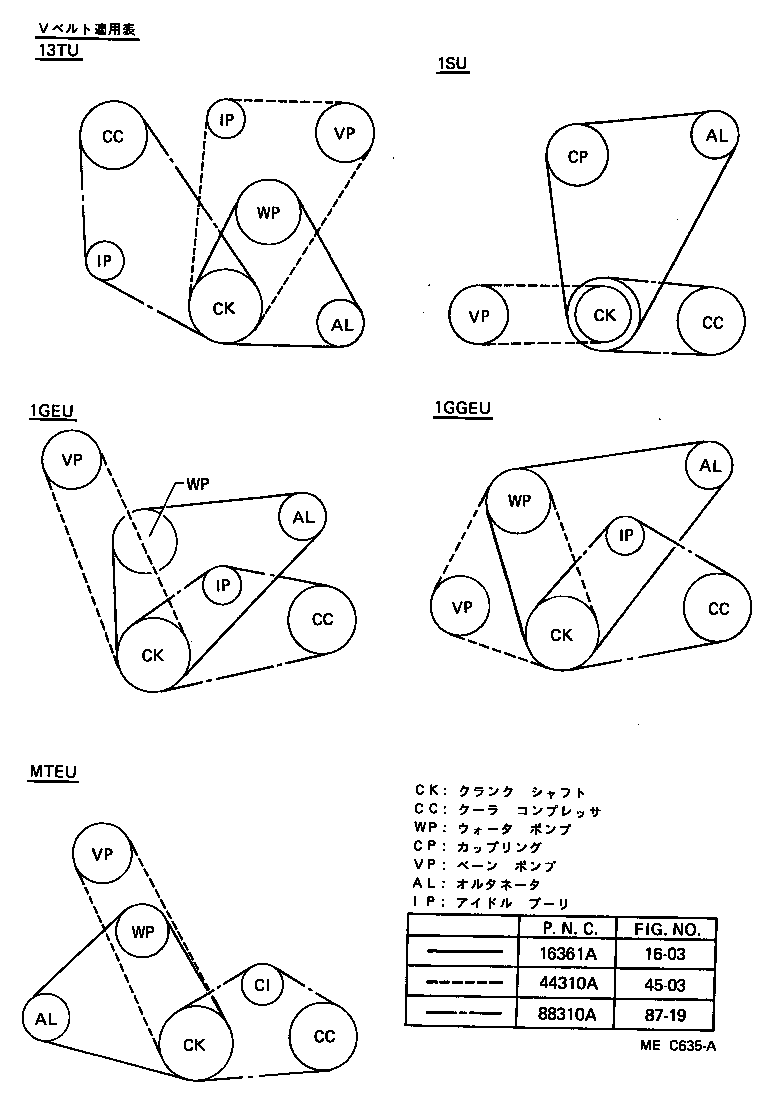

ILLUST NO. 1 OF 3(8003- )

Click highlighted areas on diagram

diagram 1603 16361A 44310A 4503 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99332-51130

1GEU..GX5#,61

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02092

GX5#,61..EFI

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00920

GX5#

 1
99322-00880

GX5#..SDX,STR

 1
Linked diagrams
1603
4503
8719
