GX50-YTMFE (1980)
Toyota Cresta
ILLUST NO. 1 OF 2(8003- )EFI,TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-22030 |
GX5#,61..EFI |
1 | ||
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-22030 |
GX5#,61..EFI |
1 | ||
| 88683A - HOSE (ENGINE TO MAGNET VALVE) | ||||
| 88689-22030 |
GX5#,61..EFI |
1 | ||
| 88683A - HOSE (ENGINE TO MAGNET VALVE) | ||||
| 88689-22030 |
GX5#,61..EFI |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22170 |
GX5#,61..EFI |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22170 |
GX5#,61..EFI |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19930 |
GX5#,61..EFI *H,L=160,ﾏｰｸ=#* |
1 | ||
| 95411-10030 |
GX5#,61..EFI *H,L=180,ﾏｰｸ=#0 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19930 |
GX5#,61..EFI *H,L=160,ﾏｰｸ=#* |
1 | ||
| 95411-10030 |
GX5#,61..EFI *H,L=180,ﾏｰｸ=#0 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19930 |
GX5#,61..EFI *H,L=160,ﾏｰｸ=#* |
1 | ||
| 95411-10030 |
GX5#,61..EFI *H,L=180,ﾏｰｸ=#0 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-19930 |
GX5#,61..EFI *H,L=160,ﾏｰｸ=#* |
1 | ||
| 95411-10030 |
GX5#,61..EFI *H,L=180,ﾏｰｸ=#0 |
1 | ||
| Common parts | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 93385-18014 | ||||
| 96132-30600 | ||||

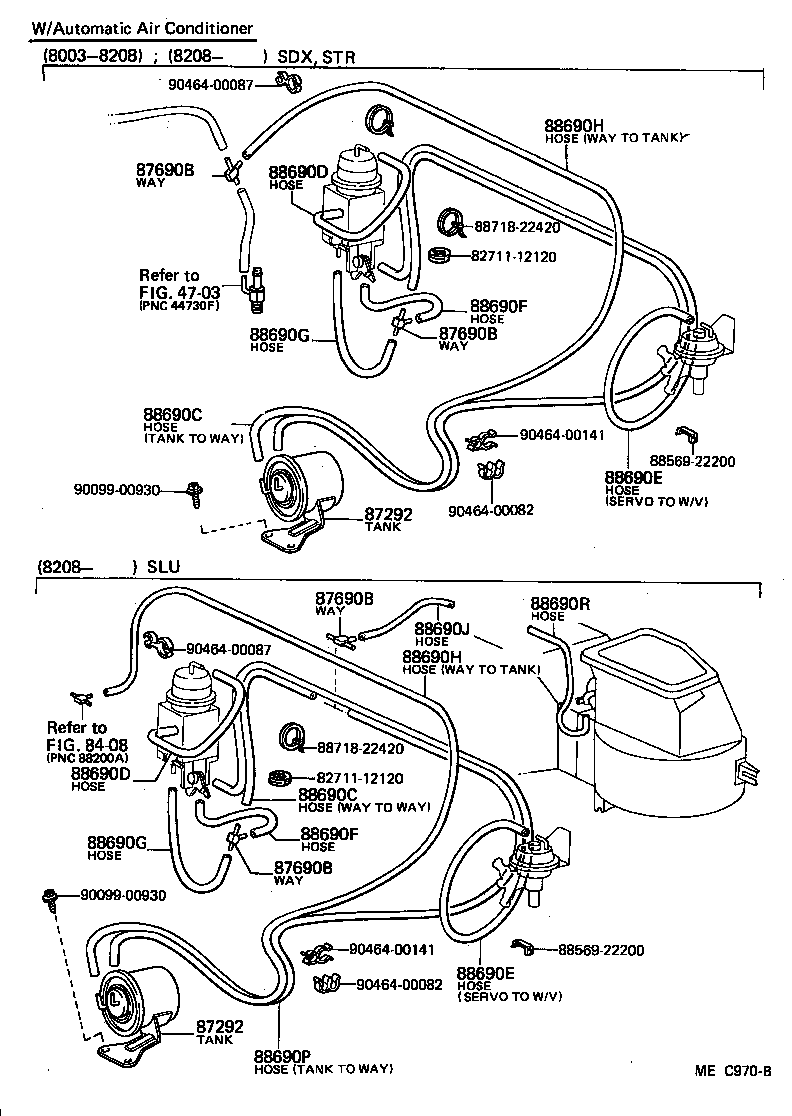

ILLUST NO. 2 OF 2(8003- )GX5#,61,MX51,61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87292 - TANK, VACUUM | ||||
| 87292-22010 |
GX5#,61,MX51,61 |
1 | ||
| 87292 - TANK, VACUUM | ||||
| 87292-22010 |
GX5#,61,MX51,61 |
1 | ||
| 87690B - WAY, 3 | ||||
| 90413-03001 |
GX5#,MX51 W/*AAC |
1 | ||
| 87690B - WAY, 3 | ||||
| 90413-03001 |
GX5#,MX51 W/*AAC |
1 | ||
| 87690B - WAY, 3 | ||||
| 90413-03001 |
GX5#,MX51 W/*AAC |
1 | ||
| 87690B - WAY, 3 | ||||
| 90413-03001 |
GX5#,MX51 W/*AAC |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06028 |
GX5#..SDX,STR L=1250,MARK=#2 |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06028 |
GX5#..SDX,STR L=1250,MARK=#2 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06054 |
GX5#,61,MX51,61 L=240,MARK=#4 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06054 |
GX5#,61,MX51,61 L=240,MARK=#4 |
1 | ||
| 88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06027 |
GX5#..SDX,STR L=1150,MARK=#3 |
1 | ||
| 88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06027 |
GX5#..SDX,STR L=1150,MARK=#3 |
1 | ||
| 88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06021 |
GX5# L=160,MARK=#2 |
1 | ||
| 88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06021 |
GX5# L=160,MARK=#2 |
1 | ||
| 88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06052 |
GX5#,61,MX51,61 L=100,MARK=#2 |
1 | ||
| 88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-06052 |
GX5#,61,MX51,61 L=100,MARK=#2 |
1 | ||
| 88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-08210 |
GX5#,61..EFI *H,L=1100 |
1 | ||
| 88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER) | ||||
| 90445-08210 |
GX5#,61..EFI *H,L=1100 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 88569-22200 | ||||
| 88718-22420 | ||||
| 90099-00930 | ||||
| 90464-00082 | ||||
| 90464-00087 | ||||
| 90464-00141 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 8408 | ||||
