GX50-YTMFE (1980)
Toyota Cresta
ILLUST NO. 1 OF 2(8003-8208) ; (8208- )CTM,SCM,SDX,STR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55903 - LEVER SUB-ASSY, HEATER CONTROL | ||||
| 88899-22100 |
GX5#,61,MX51,61..SDX,STR |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-22050 |
GX5#,61,LX60,MX51,61,SX60,TX50 L=380 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-22090 |
GX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR L=540 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-22030 |
GX5#,MX51,TX50 L=780 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-22020 |
GX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR L=590 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22170 |
GX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22070 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22070 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22070 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
4 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-22070 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
4 | ||
| 55941A - GUIDE, HEATER CONTROL | ||||
| 55941-22020 |
GX5#,MX51,TX50 |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-22030 |
GX5#,61,MX51,61 W/*AAC |
1 | ||
| Common parts | ||||
| 55937-22030 | ||||
| 55939-16010 | ||||
| 90480-13006 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

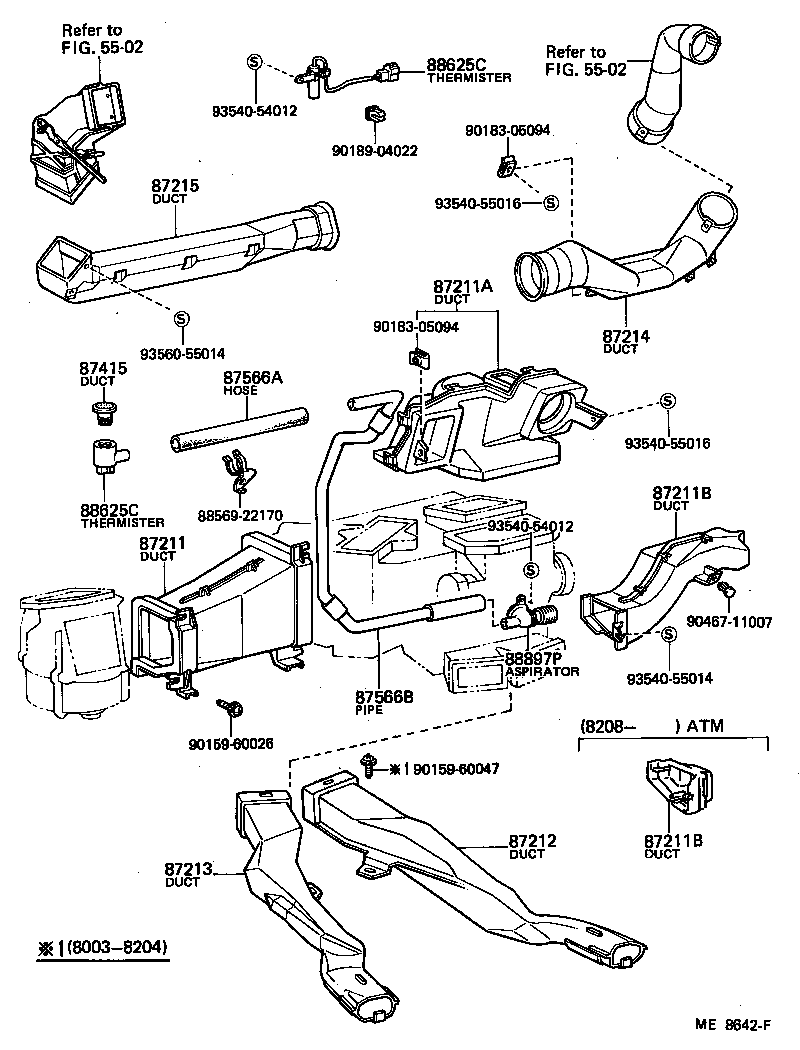

ILLUST NO. 2 OF 2(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-22060 |
GX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 55088-22030 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-22070 |
GX5#,MX51,TX50 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-22070 |
GX5#,MX51,TX50 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-22011 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87203-22021 |
GX5#,MX51,TX50 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-22030 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55845-22050 |
GX5#,MX51,TX50 |
1 | ||
| 87415 - DUCT, AIR | ||||
| 88566-2203004 |
GX5#,MX51 BLUE,W/*AAC,BLUE,TRIM8# |
1 | ||
| 88566-2203001 |
GX5#,MX51 BLACK,W/*AAC,BLACK,TRIM2# |
1 | ||
| 88566-2203006 |
GX5#,61,MX51,61 DARK BROWN,W/*AAC,BROWN,TRIM4# |
1 | ||
| 87566A - HOSE, AIR DUCT | ||||
| 88894-22140 |
GX5#,61,MX51,61 W/*AAC |
1 | ||
| 87566B - PIPE, AIR DUCT | ||||
| 88567-22010 |
GX5#,61,MX51,61 W/*AAC |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30463 |
GX5# OUTER,W/*AAC |
1 | ||
| 88625-22080 |
GX5#,MX51 OUTER,W/*AAC |
1 | ||
| 88625-22070 |
GX5# OUTER,W/*AAC |
1 | ||
| 88625-22020 |
GX5#,61,MX51,61 INNER,W/*AAC |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30463 |
GX5# OUTER,W/*AAC |
1 | ||
| 88625-22080 |
GX5#,MX51 OUTER,W/*AAC |
1 | ||
| 88625-22070 |
GX5# OUTER,W/*AAC |
1 | ||
| 88625-22020 |
GX5#,61,MX51,61 INNER,W/*AAC |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-22050 |
GX5#,61,MX51,61 W/*AAC |
1 | ||
| Common parts | ||||
| 88569-22170 | ||||
| 90159-60026 | ||||
| 90159-60047 | ||||
| 90183-05094 | ||||
| 90189-04022 | ||||
| 90467-11007 | ||||
| 93540-54012 | ||||
| 93540-55014 | ||||
| 93540-55016 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 5502 | ||||
