GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

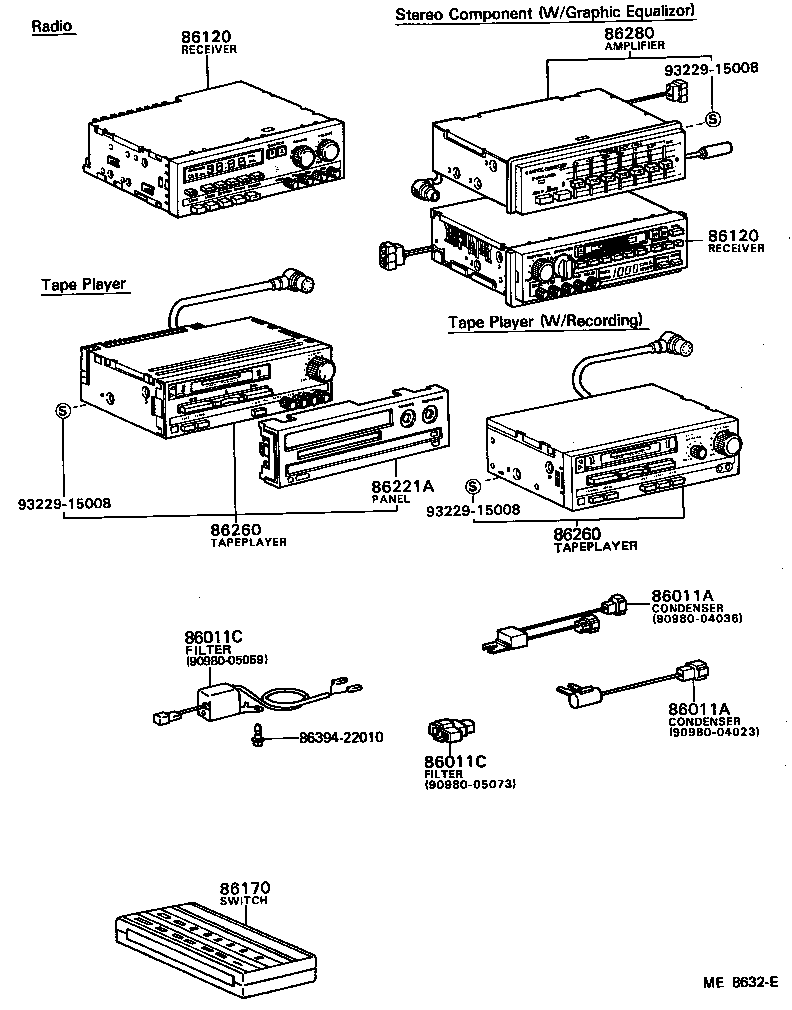

ILLUST NO. 1 OF 2(8003- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86011C 86120 86120 86170 86221A 86260 86260 86280 8639422010 9098004023 9098004036 9098005073 9322915008 9322915008 9322915008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04023

GX5#,61,LX60,MX51,61,SX60,TX50

DEFOGGER

 1
90980-04036

GX5#,61,LX60,MX51,61,SX60,TX50

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04023

GX5#,61,LX60,MX51,61,SX60,TX50

DEFOGGER

 1
90980-04036

GX5#,61,LX60,MX51,61,SX60,TX50

IGNITION COIL

 1
86011C - FILTER, NOISE
90980-05059

GX5#,61,LX60,MX51,61,SX60,TX50

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05059

GX5#,61,LX60,MX51,61,SX60,TX50

DEFOGGER

 1
86120 - RECEIVER ASSY, RADIO
86120-22240

GX5#,TX50

*18

 1
86120-22241

GX5#,MX51,TX50

*18

 1
86120-22270

GX50,TX50..SCM,SDX

*19

 1
86120 - RECEIVER ASSY, RADIO
86120-22240

GX5#,TX50

*18

 1
86120-22241

GX5#,MX51,TX50

*18

 1
86120-22270

GX50,TX50..SCM,SDX

*19

 1
86221A - PANEL, RADIO RECEIVER
86221-22010

GX50,TX50

*19

 1
86221-22030

GX50,TX50

*19(RADIO=W/LIGHTING SW)

 1
86221-22040

GX50,TX50

*25(RADIO=W/LIGHTING SW)

 1
86221-22020

GX50,TX50

*25

 1
86260 - TAPE PLAYER ASSY
86260-29015

GX50,TX50

*25

 1
86260-29055

GX50,TX50

*25(RADIO=W/LIGHTING SW)

 1
86260-29035

GX50,TX50

*19

 1
86260-29045

GX5#,MX51,TX50

*17,*18,RECORDING

 1
86260-29046

GX5#,MX51,TX50

*17,*18,RECORDING

 1
86260-29065

GX50,TX50

*19(RADIO=W/LIGHTING SW)

 1
86260 - TAPE PLAYER ASSY
86260-29015

GX50,TX50

*25

 1
86260-29055

GX50,TX50

*25(RADIO=W/LIGHTING SW)

 1
86260-29035

GX50,TX50

*19

 1
86260-29045

GX5#,MX51,TX50

*17,*18,RECORDING

 1
86260-29046

GX5#,MX51,TX50

*17,*18,RECORDING

 1
86260-29065

GX50,TX50

*19(RADIO=W/LIGHTING SW)

 1
Common parts
86394-22010
90980-04023
90980-04036
90980-05073
93229-15008

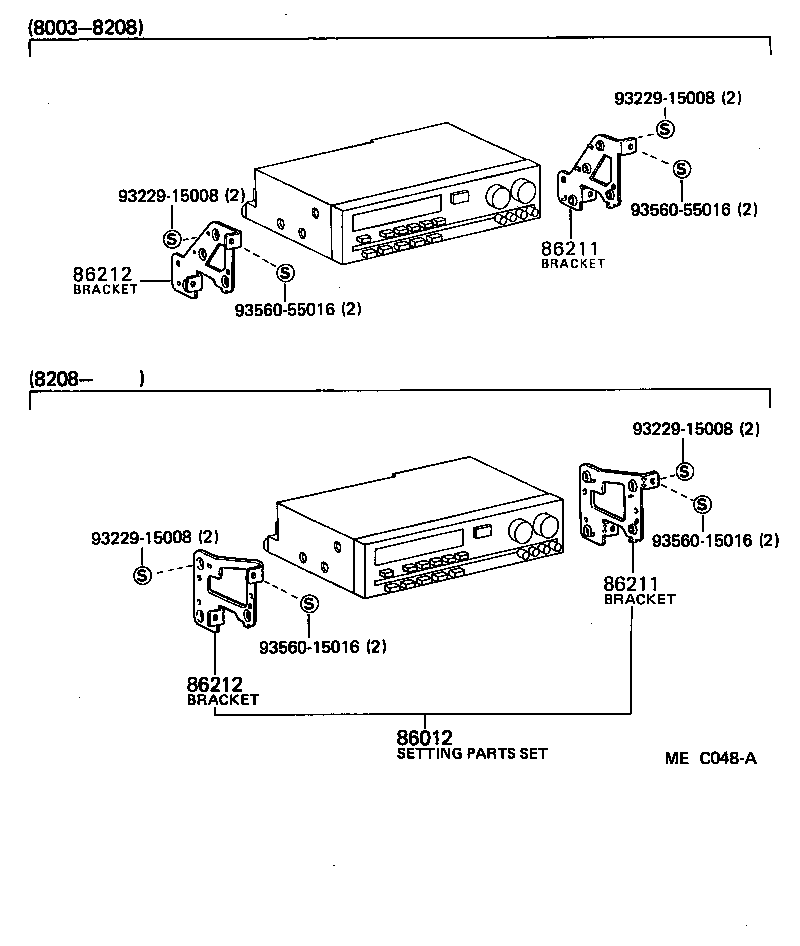

ILLUST NO. 2 OF 2(8003- )

Click highlighted areas on diagram

diagram 86012 86211 86211 86212 86212 9322915008 9322915008 9322915008 9322915008 9356015016 9356015016 9356055016 9356055016
Part # Description Qty Price
86211 - BRACKET, RADIO, NO.1
86211-22050

GX5#,MX51,TX50

 1
86211 - BRACKET, RADIO, NO.1
86211-22050

GX5#,MX51,TX50

 1
86212 - BRACKET, RADIO, NO.2
86212-22030

GX5#,MX51,TX50

 1
86212 - BRACKET, RADIO, NO.2
86212-22030

GX5#,MX51,TX50

 1
Common parts
93229-15008
93560-15016
93560-55016
