GX50-YTMFE (1980)
Toyota Cresta

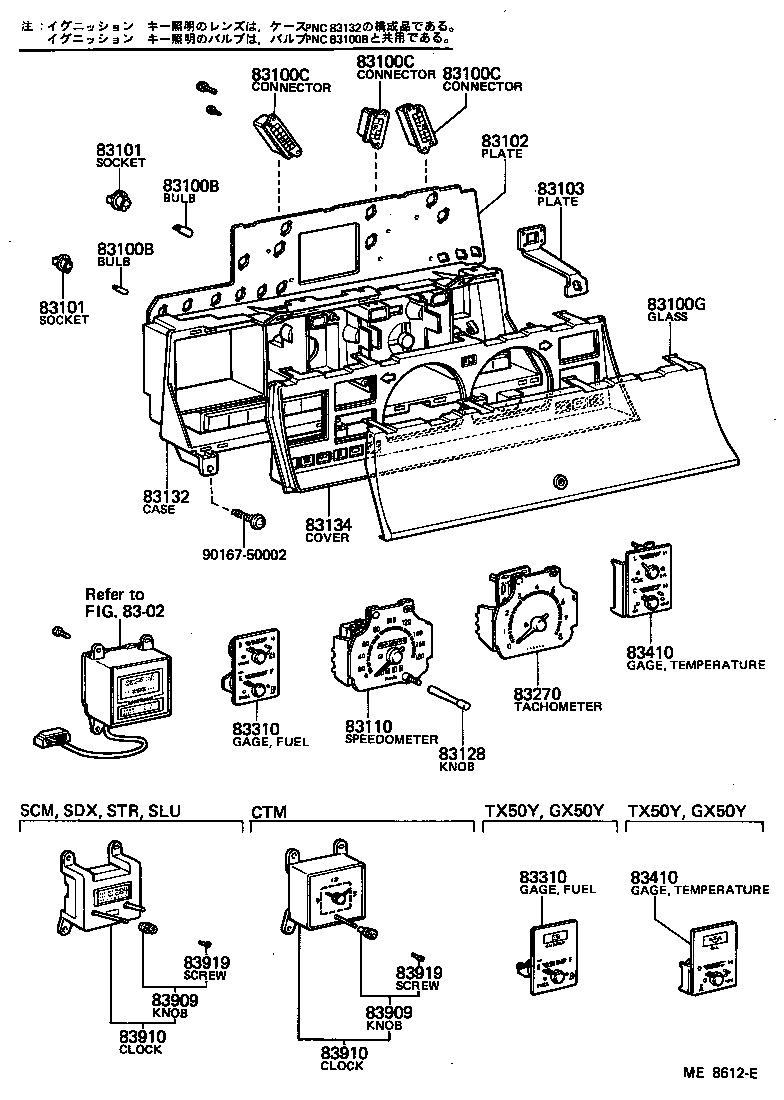

ILLUST NO. 1 OF 3(8003-8208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GX5#,61,LX60,MX51,61,SX60,TX50 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
19 | ||
| 99132-12034 |
GX5#,61,LX60,MX51,61,SX60,TX50 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GX5#,61,LX60,MX51,61,SX60,TX50 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
19 | ||
| 99132-12034 |
GX5#,61,LX60,MX51,61,SX60,TX50 12V 3.4W,12V 3.4W |
9 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX5#,61,LX60,MX51,61,SX60,TX50 13-POLE |
2 | ||
| 90980-08208 |
GX5#,61,LX60,MX51,61,SX60,TX50 7-POLE |
1 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX5#,61,LX60,MX51,61,SX60,TX50 13-POLE |
2 | ||
| 90980-08208 |
GX5#,61,LX60,MX51,61,SX60,TX50 7-POLE |
1 | ||
| 83100C - CONNECTOR, COMBINATION METER | ||||
| 90980-08209 |
GX5#,61,LX60,MX51,61,SX60,TX50 13-POLE |
2 | ||
| 90980-08208 |
GX5#,61,LX60,MX51,61,SX60,TX50 7-POLE |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-2A080 |
GX5#,MX51,TX50..SCM,SDX,SLU,STR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX5#,61,LX60,MX51,61,SX60,TX50 12V 1.4W |
19 | ||
| 83101-20040 |
GX5#,61,LX60,MX51,61,SX60,TX50 12V 3.4W |
9 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GX5#,61,LX60,MX51,61,SX60,TX50 12V 1.4W |
19 | ||
| 83101-20040 |
GX5#,61,LX60,MX51,61,SX60,TX50 12V 3.4W |
9 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22140 |
GX50,TX50..SCM,SDX |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-22160 |
GX5#,61,LX60,MX51,61,SX60,TX50..SCM,SDX,SLU,STR W/*AS |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-22430 |
GX5#,TX50 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-2A010 |
GX5#,61,LX60,MX51,61,SX60,TX50 W/*AS |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A070 |
GX50,TX50..SCM,SDX |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2A010 |
GX50,TX50 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22120 |
GX5#,MX51 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22160 |
GX50,TX50 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22160 |
GX50,TX50 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22060 |
GX50,TX50 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22060 |
GX50,TX50 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX5#,61,LX60,MX51,61,SX60,TX50..SCM,SDX,SLU,STR DIGITAL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
GX5#,61,LX60,MX51,61,SX60,TX50..SCM,SDX,SLU,STR DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX5#,MX51,TX50..SCM,SDX,SLU,STR DIGITAL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22180 |
GX5#,MX51,TX50..SCM,SDX,SLU,STR DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX5#,61,LX60,MX51,61,SX60,TX50..SCM,SDX,SLU,STR DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
GX5#,61,LX60,MX51,61,SX60,TX50..SCM,SDX,SLU,STR DIGITAL |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
| Linked diagrams | ||||
| 8302 | ||||

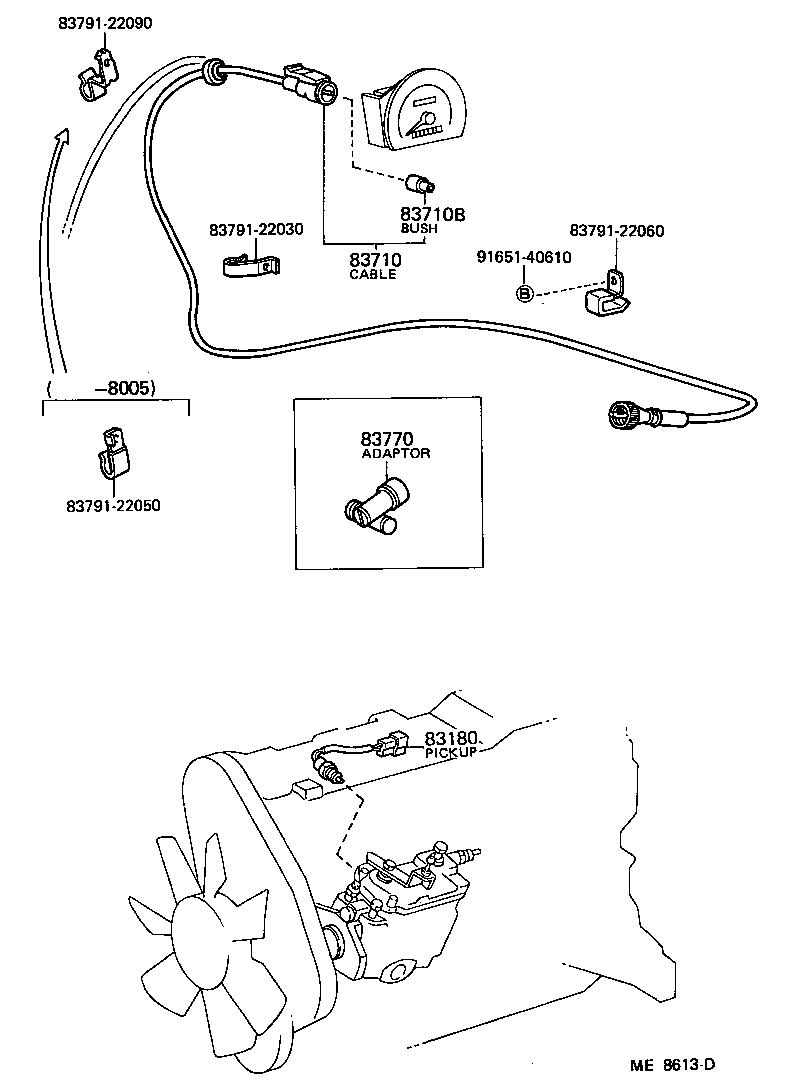

ILLUST NO. 3 OF 3(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-29228 |
GX5#,TX50..MTM |
1 | ||
| 83710-29685 |
GX5#..5F |
1 | ||
| 83710-22490 |
GX5#..5F |
1 | ||
| 83710B - BUSH, SPEEDOMETER DRIVE CABLE | ||||
| 90389-02001 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| Common parts | ||||
| 83791-22030 | ||||
| 83791-22050 | ||||
| 83791-22060 | ||||
| 83791-22090 | ||||
| 91651-40610 | ||||

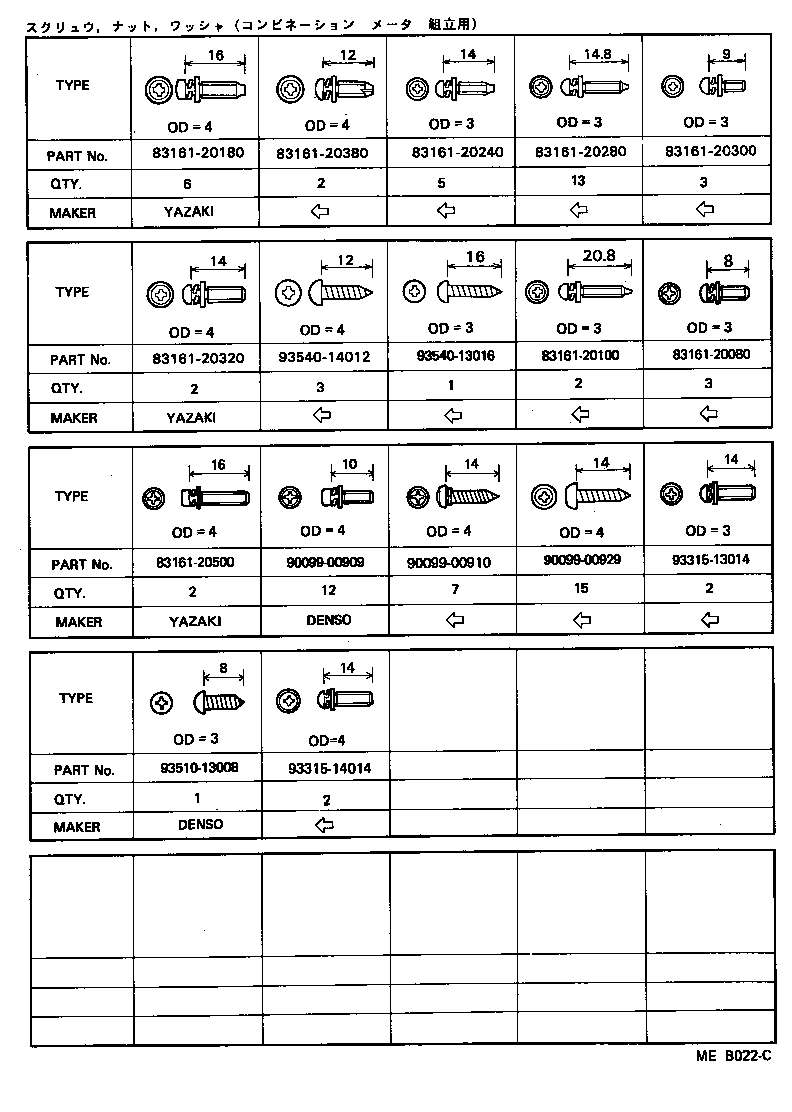

ILLUST NO. 2 OF 3(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20180 | ||||
| 83161-20240 | ||||
| 83161-20280 | ||||
| 83161-20300 | ||||
| 83161-20320 | ||||
| 83161-20380 | ||||
| 83161-20500 | ||||
| 90099-00900 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93315-13014 | ||||
| 93315-14014 | ||||
| 93510-13008 | ||||
| 93540-13016 | ||||
| 93540-14012 | ||||
