GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )GX5#,61,MX51,61,SX60,TX50

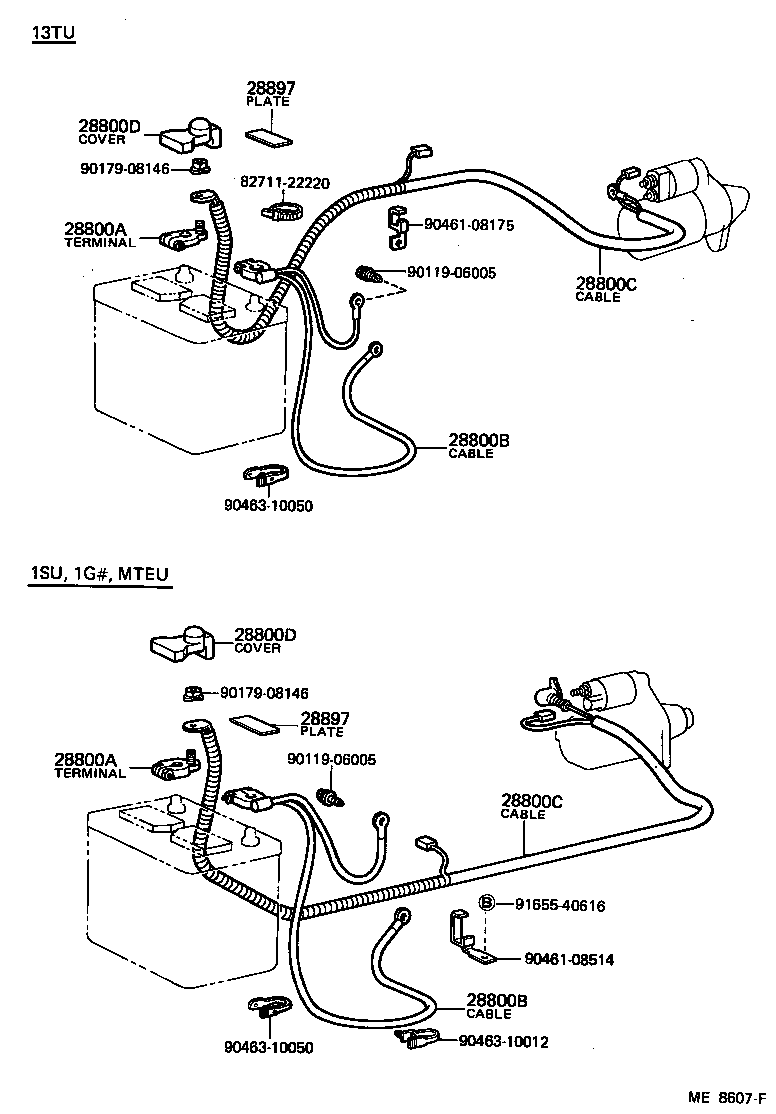

Click highlighted areas on diagram

diagram 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 28897 28897 8271122220 9011906005 9011906005 9017908146 9017908146 9046108175 9046108514 9046310012 9046310050 9046310050 9165540616
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,1GEU..GX5#,TX50

NS40ZAL-MF,NS40ZAL

 1
90982-05005

13TU,1GEU..GX5#,TX50

N50ZL-MF

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,1GEU..GX5#,TX50

NS40ZAL-MF,NS40ZAL

 1
90982-05005

13TU,1GEU..GX5#,TX50

N50ZL-MF

 1
28800B - CABLE, BATTERY TO GROUND
90982-02194

1G#..GX5#,61

N50ZL-MF,50D20L-MF,55D23L-MF

 1
90982-02193

1GEU..GX5#

NS40ZAL-MF,NS40ZAL

 1
28800B - CABLE, BATTERY TO GROUND
90982-02194

1G#..GX5#,61

N50ZL-MF,50D20L-MF,55D23L-MF

 1
90982-02193

1GEU..GX5#

NS40ZAL-MF,NS40ZAL

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01339

1GEU..GX5#

W/12V 0.8KW STARTER

 1
90982-01371

1G#..GX5#,61

W/12V 1.0KW STARTER

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01339

1GEU..GX5#

W/12V 0.8KW STARTER

 1
90982-01371

1G#..GX5#,61

W/12V 1.0KW STARTER

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22100

1GEU..GX5#

 1
82821-22100

13TU,1GEU,MTEU..GX5#,MX51,TX50

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22100

1GEU..GX5#

 1
82821-22100

13TU,1GEU,MTEU..GX5#,MX51,TX50

 1
28897 - PLATE, BATTERY CAUTION
28897-18020

13TU,1GEU..GX5#,TX50

YUASA

 1
28897-18010

13TU,1GEU..GX5#,TX50

GS

 1
28897-18040

13TU,1GEU..GX5#,TX50

MATSUSHITA

 1
28897-18030

13TU,1GEU..GX5#,TX50

KOBE

 1
28897-18050

13TU,1GEU..GX5#,TX50

 1
28897 - PLATE, BATTERY CAUTION
28897-18020

13TU,1GEU..GX5#,TX50

YUASA

 1
28897-18010

13TU,1GEU..GX5#,TX50

GS

 1
28897-18040

13TU,1GEU..GX5#,TX50

MATSUSHITA

 1
28897-18030

13TU,1GEU..GX5#,TX50

KOBE

 1
28897-18050

13TU,1GEU..GX5#,TX50

 1
Common parts
82711-22220
90119-06005
90179-08146
90461-08175
90461-08514
90463-10012
90463-10050
91655-40616
