GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

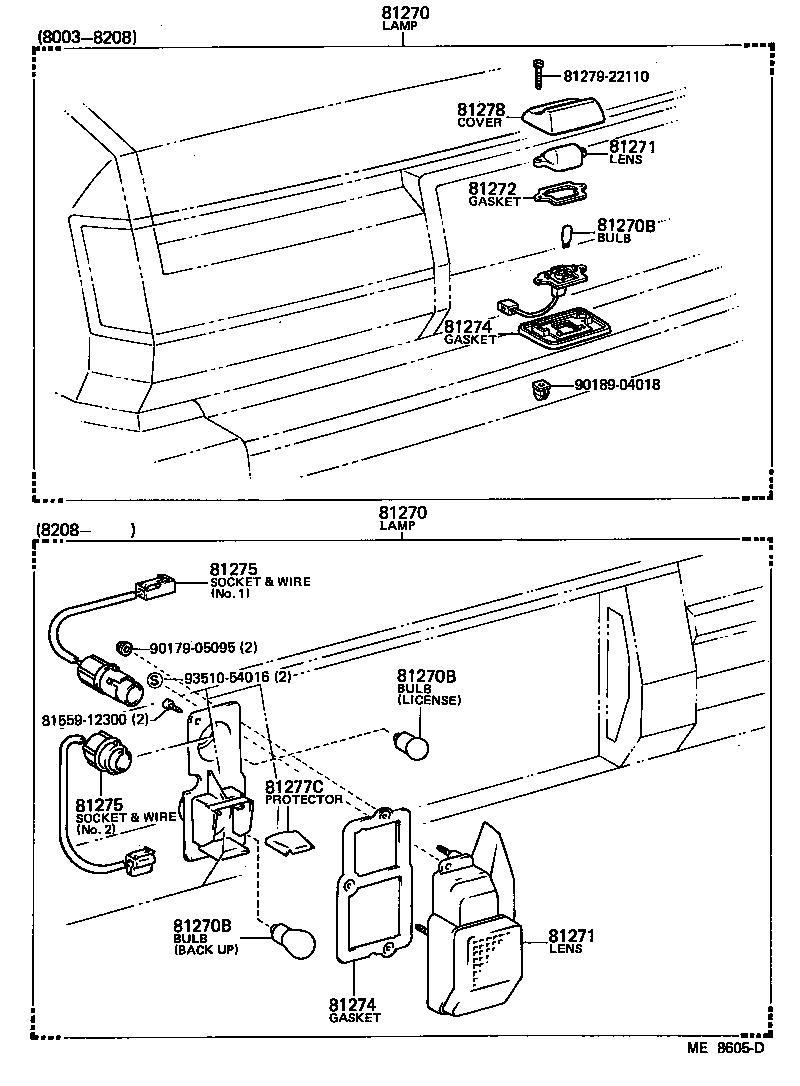

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81272 81274 81274 81275 81275 81277C 81278 8127922110 8155912300 9017905095 9018904018 9351054016
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29535

GX5#,MX51,TX50

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-29535

GX5#,MX51,TX50

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GX5#,MX51,TX50

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GX5#,MX51,TX50

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GX5#,MX51,TX50

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-22110

GX5#,MX51,TX50

 2
81271 - LENS, LICENSE PLATE LAMP
81271-22110

GX5#,MX51,TX50

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22110

GX5#,MX51,TX50

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-22110

GX5#,MX51,TX50

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-22110

GX5#,MX51,TX50

 2
81278 - COVER, LICENSE PLATE LAMP
81276-22110

GX5#,MX51,TX50

 2
Common parts
81279-22110
81559-12300
90179-05095
90189-04018
93510-54016
