GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8208)GX5#,MX51

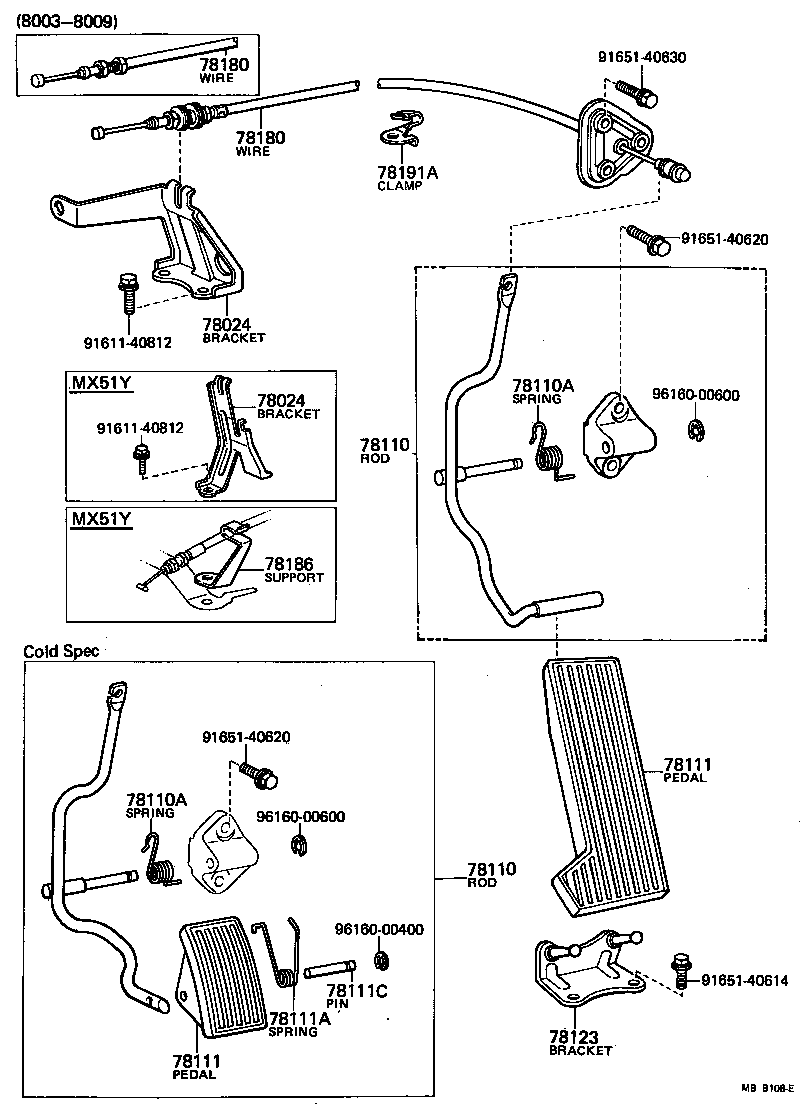

Click highlighted areas on diagram

diagram 78024 78024 78110 78110 78110A 78110A 78111 78111 78111A 78111C 78123 78180 78180 78186 78191A 9161140812 9161140812 9165140614 9165140620 9165140620 9165140630 9616000400 9616000600 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-22040

GX5#

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78184-22040

GX5#

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22090

GX5#,MX51

COLD SPEC

 1
78120-22070

GX5#,MX51

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22090

GX5#,MX51

COLD SPEC

 1
78120-22070

GX5#,MX51

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23037

GX5#,MX51

 1
90508-18006

GX5#,MX51

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23037

GX5#,MX51

 1
90508-18006

GX5#,MX51

 1
78111 - PEDAL, ACCELERATOR
78111-30080

GX5#,MX51,TX50

 1
78111-12100

GX5#,MX51,TX50

COLD SPEC

 1
78111 - PEDAL, ACCELERATOR
78111-30080

GX5#,MX51,TX50

 1
78111-12100

GX5#,MX51,TX50

COLD SPEC

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

GX5#,MX51,TX50

COLD SPEC

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-22040

GX5#,MX51,TX50

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22090

GX5#,TX50

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22090

GX5#,TX50

 1
Common parts
91611-40812
91651-40614
91651-40620
91651-40630
96160-00400
96160-00600
