GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

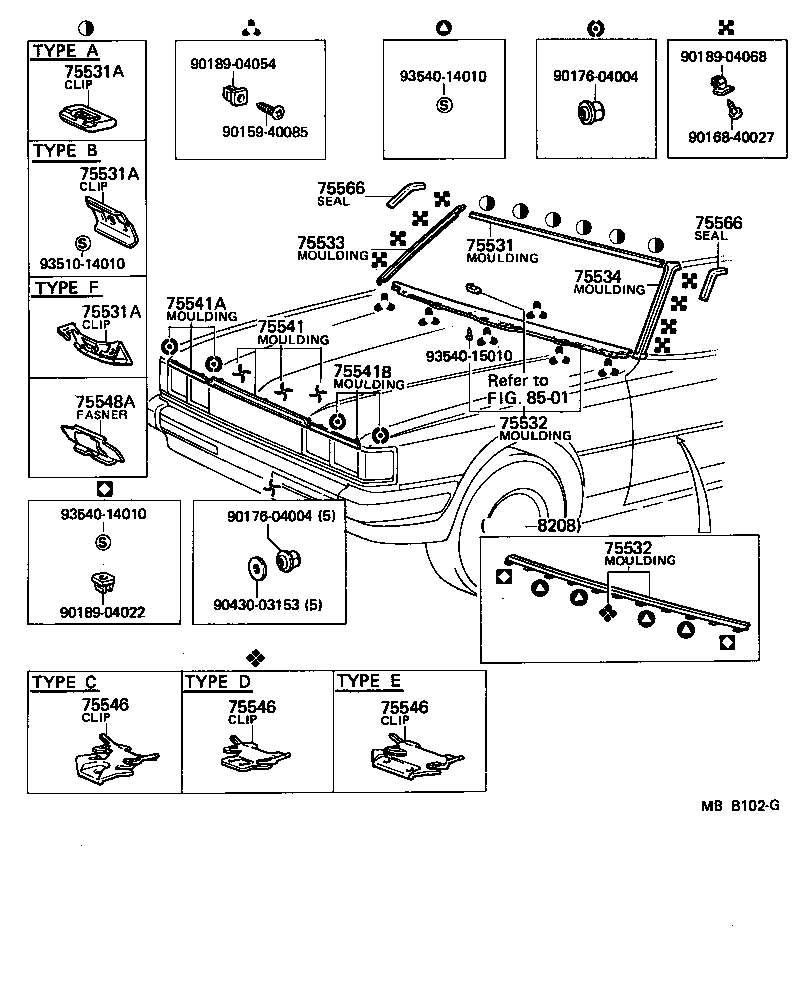

Click highlighted areas on diagram

diagram 75531 75531A 75531A 75531A 75532 75532 75533 75534 75541 75541A 75541B 75546 75546 75546 75548A 75566 75566 8501 9015940085 9016840027 9017604004 9017604004 9018904022 9018904054 9018904068 9043003153 9351014010 9354014010 9354014010 9354015010
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-22060

GX5#,61,LX60,MX51,61,SX60,TX50

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30040

GX5#,61,LX60,MX51,61,SX60,TX50

TYPE B

 6
75545-30021

GX5#,MX51,TX50

TYPE A

 6
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30040

GX5#,61,LX60,MX51,61,SX60,TX50

TYPE B

 6
75545-30021

GX5#,MX51,TX50

TYPE A

 6
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30040

GX5#,61,LX60,MX51,61,SX60,TX50

TYPE B

 6
75545-30021

GX5#,MX51,TX50

TYPE A

 6
75532 - MOULDING, WINDSHIELD, LOWER
75504-22020

GX5#,MX51,TX50

 1
75532 - MOULDING, WINDSHIELD, LOWER
75504-22020

GX5#,MX51,TX50

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-22080

GX5#,MX51,TX50

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-22070

GX5#,MX51,TX50

 1
75541 - MOULDING, HOOD, FRONT
75770-29065

GX5#,MX51,TX50

 1
75541A - MOULDING, HOOD, FRONT RH
75780-29025

GX5#,MX51,TX50

 1
75541B - MOULDING, HOOD, FRONT LH
75790-29015

GX5#,MX51,TX50

 1
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-22020

GX5#,MX51,TX50

TYPE D

 5
75961-22020

GX5#,MX51,TX50

TYPE E

 2
75546-22030

GX5#,MX51,TX50

TYPE C

 4
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-22020

GX5#,MX51,TX50

TYPE D

 5
75961-22020

GX5#,MX51,TX50

TYPE E

 2
75546-22030

GX5#,MX51,TX50

TYPE C

 4
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-22020

GX5#,MX51,TX50

TYPE D

 5
75961-22020

GX5#,MX51,TX50

TYPE E

 2
75546-22030

GX5#,MX51,TX50

TYPE C

 4
75566 - SEAL, ROOF DRIP SIDE FINISH MOULDING, FRONT
75566-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 2
75566 - SEAL, ROOF DRIP SIDE FINISH MOULDING, FRONT
75566-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 2
Common parts
90159-40085
90168-40027
90176-04004
90189-04022
90189-04054
90189-04068
90430-03153
93510-14010
93540-14010
93540-15010
Linked diagrams
8501
