GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

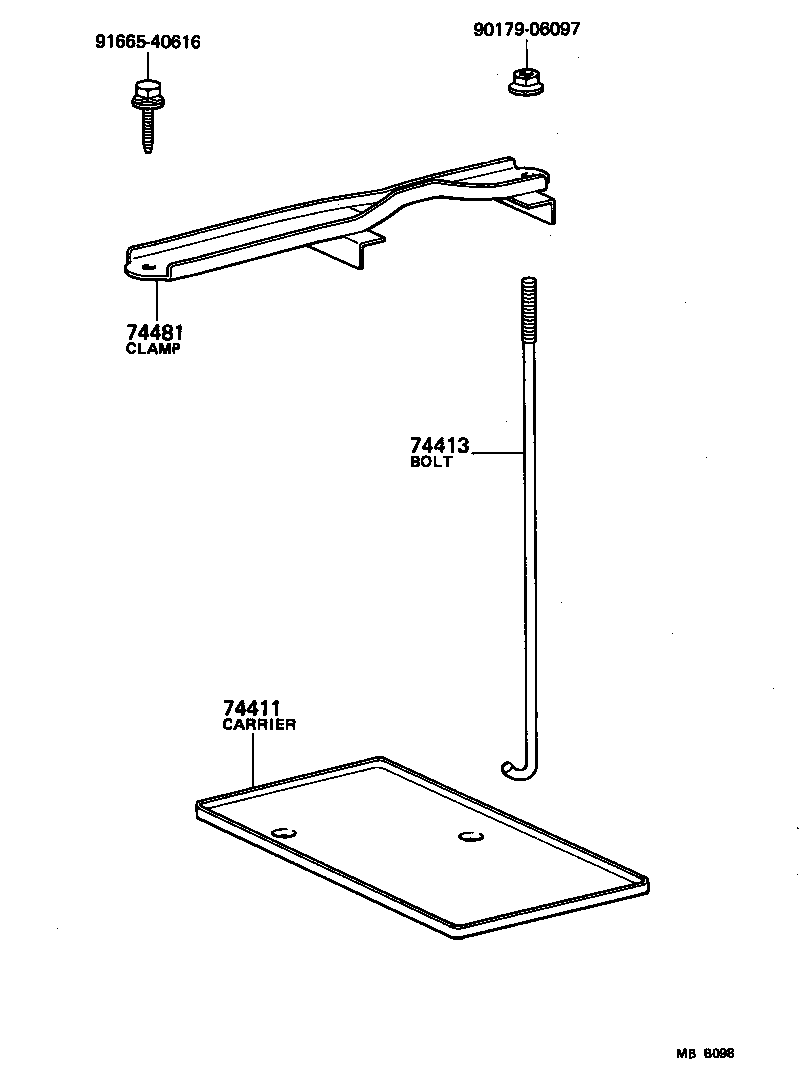

Click highlighted areas on diagram

diagram 74411 74413 74481 9017906097 9166540616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-14050

GX5#,TX50

NS40ZAL

 1
74431-14030

GX5#,61,LX60,MX51,61,SX60,TX50

N50ZL,55D23L-MF,NX110-5L

 1
74431-14010

GX5#,TX50

NS40ZAL

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-22120

GX5#,MX51,TX50

NS40ZAL,NS60L

 1
74404-22130

GX5#,61,LX60,MX51,61,SX60,TX50

N50ZL,55D23L-MF,NX110-5L

 1
Common parts
90179-06097
91665-40616
