GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

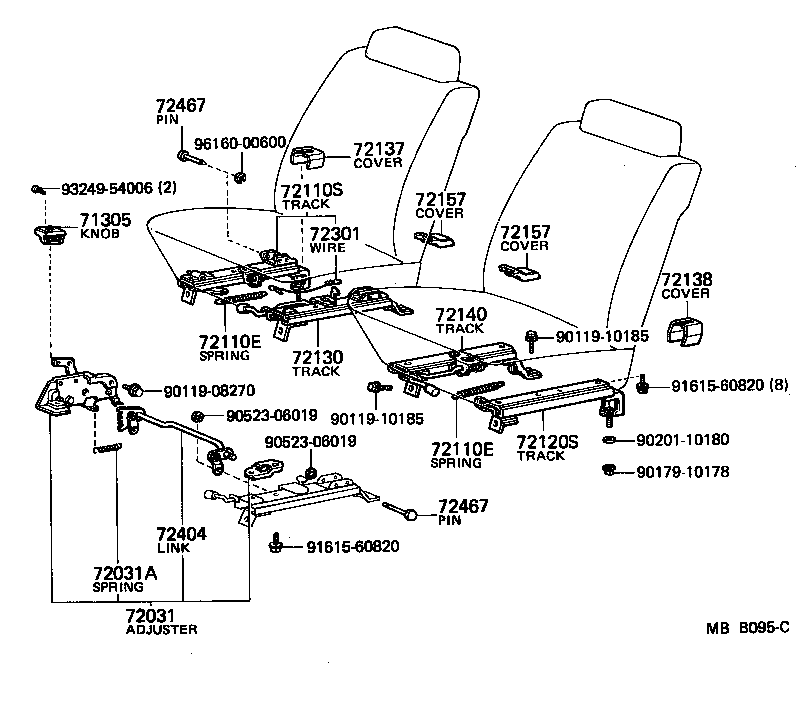

Click highlighted areas on diagram

diagram 71305 72031 72031A 72110E 72110E 72110S 72120S 72130 72137 72138 72140 72157 72157 72301 72404 72467 72467 9011908270 9011910185 9011910185 9017910178 9020110180 9052306019 9052306019 9161560820 9161560820 9324954006 9616000600
Part # Description Qty Price
71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING
72457-1401001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
72457-1401016

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 1
72457-1401004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-22030

GX5#,TX50

 1
72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER)
90506-18025

GX5#,TX50

 1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

GX5#,61,LX60,MX51,61,SX60,TX50

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

GX5#,61,LX60,MX51,61,SX60,TX50

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-22170

GX5#,MX51,TX50

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-22210

GX5#,MX51,TX50

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-22100

GX5#,MX51,TX50

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-2201201

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
72137-2201104

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
72137-2201106

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
72137-2201101

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
72137-2201204

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-2202004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
72138-2202006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 1
72138-2202001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-22090

GX5#,MX51,TX50

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-2204006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 2
72157-2204001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 2
72157-2204004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-2204006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 2
72157-2204001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 2
72157-2204004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-22070

GX5#,MX51,TX50

 1
72404 - LINK SUB-ASSY, VERTICAL SEAT
72404-20010

GX5#,TX50

 1
72467 - PIN, VERTICAL ADJUSTER
72467-20010

GX5#,61,LX60,MX51,61,SX60,TX50

 2
72467 - PIN, VERTICAL ADJUSTER
72467-20010

GX5#,61,LX60,MX51,61,SX60,TX50

 2
Common parts
90119-08270
90119-10185
90179-10178
90201-10180
90523-06019
91615-60820
93249-54006
96160-00600
