GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

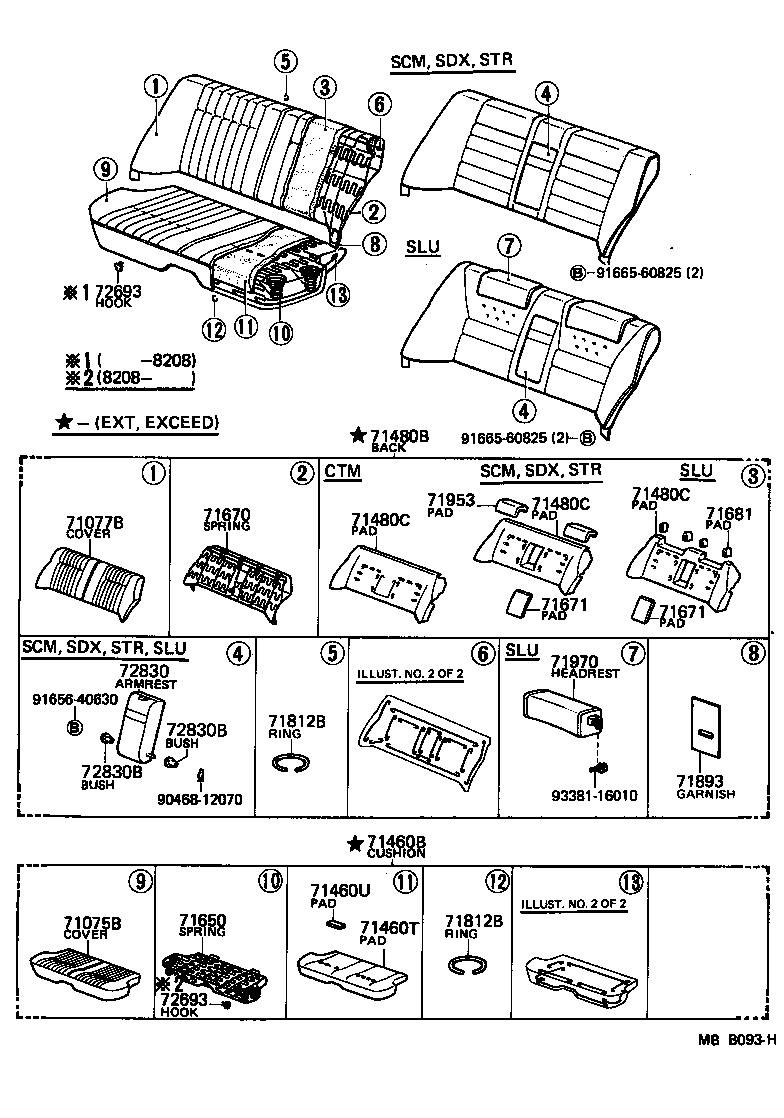

ILLUST NO. 1 OF 2(8003- )

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71460T 71460U 71480B 71480C 71480C 71480C 71650 71670 71671 71671 71681 71812B 71812B 71893 71953 71970 72693 72693 72830 72830B 72830B 9046812070 9165640630 9166560825 9166560825 9338116010
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2238004

GX50,TX50..SCM,SDX

FB,BLUE,BLUE,TRIM8#

 1
71075-2238005

GX50,TX50..SCM,SDX

FB,GREIGE,BEIGE,TRIM4#

 1
71075-2238003

GX50,TX50..SCM,SDX

FB,GRAY,GRAY,TRIM2#

 1
71075-2238105

GX50,TX50..SCM,SDX

FB,GREIGE,BEIGE,TRIM4#

 1
71075-2238103

GX50,TX50..SCM,SDX

FB,GRAY,GRAY,TRIM2#

 1
71075-2238104

GX50,TX50..SCM,SDX

FB,BLUE,BLUE,TRIM8#

 1
71075-2257005

GX50

FB,EXTRA,GREIGE,BEIGE,TRIM4#

 1
71075-2257004

GX50

FB,EXTRA,BLUE,BLUE,TRIM8#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2248003

GX50,TX50..SCM,SDX

FB,GRAY,GRAY,TRIM2#

 1
71077-2248005

GX50,TX50..SCM,SDX

FB,GREIGE,BEIGE,TRIM4#

 1
71077-2269005

GX50

FB,EXTRA,GREIGE,BEIGE,TRIM4#

 1
71077-2248105

GX50,TX50..SCM,SDX

FB,GREIGE,BEIGE,TRIM4#

 1
71077-2248004

GX50,TX50..SCM,SDX

FB,BLUE,BLUE,TRIM8#

 1
71077-2248103

GX50,TX50..SCM,SDX

FB,GRAY,GRAY,TRIM2#

 1
71077-2248104

GX50,TX50..SCM,SDX

FB,BLUE,BLUE,TRIM8#

 1
71077-2269004

GX50

FB,EXTRA,BLUE,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-2238004

GX50,TX50..SCM,SDX

FB,BLUE,BLUE,TRIM8#

 1
71460-2238003

GX50,TX50..SCM,SDX

FB,GRAY,GRAY,TRIM2#

 1
71460-2238005

GX50,TX50..SCM,SDX

FB,GREIGE,BEIGE,TRIM4#

 1
71460-2238104

GX50,TX50..SCM,SDX

FB,BLUE,BLUE,TRIM8#

 1
71460-2238103

GX50,TX50..SCM,SDX

FB,GRAY,GRAY,TRIM2#

 1
71460-2238105

GX50,TX50..SCM,SDX

FB,GREIGE,BEIGE,TRIM4#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71611-22080

GX5#,61,LX60,MX51,61,SX60,TX50

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2248004

GX50,TX50..SCM,SDX

FB,BLUE,BLUE,TRIM8#

 1
71480-2248003

GX50,TX50..SCM,SDX

FB,GRAY,GRAY,TRIM2#

 1
71480-2248005

GX50,TX50..SCM,SDX

FB,GREIGE,BEIGE,TRIM4#

 1
71480-2248104

GX50,TX50..SCM,SDX

FB,BLUE,BLUE,TRIM8#

 1
71480-2248105

GX50,TX50..SCM,SDX

FB,GREIGE,BEIGE,TRIM4#

 1
71480-2248103

GX50,TX50..SCM,SDX

FB,GRAY,GRAY,TRIM2#

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71507-22030

GX50,TX50

 1
71507-22040

GX5#,MX51,TX50..SCM,SDX,STR

 1
71507-22040

GX50

EXTRA

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71507-22030

GX50,TX50

 1
71507-22040

GX5#,MX51,TX50..SCM,SDX,STR

 1
71507-22040

GX50

EXTRA

 1
71480C - PAD SUB-ASSY, REAR SEAT BACK, NO.1 (FOR BENCH TYPE)
71507-22030

GX50,TX50

 1
71507-22040

GX5#,MX51,TX50..SCM,SDX,STR

 1
71507-22040

GX50

EXTRA

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-22050

GX5#,MX51,TX50

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-22100

GX50

EXTRA

 1
71670-22100

GX5#,MX51,TX50..SCM,SDX,STR

 1
71670-22090

GX50,TX50

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX50

EXTRA

 1
71671-22090

GX5#,MX51,TX50..SCM,SDX,SLU,STR

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-22090

GX50

EXTRA

 1
71671-22090

GX5#,MX51,TX50..SCM,SDX,SLU,STR

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX5#,61,LX60,MX51,61,SX60,TX50

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GX5#,61,LX60,MX51,61,SX60,TX50

 1
71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH
71893-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

GX5#,MX51,TX50

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-22010

GX5#,MX51,TX50

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-2203005

GX50

EXTRA,GREIGE,BEIGE,TRIM4#

 1
72830-2206004

GX50,TX50..SCM,SDX

BLUE,BLUE,TRIM8#

 1
72830-2203004

GX50

EXTRA,BLUE,BLUE,TRIM8#

 1
72830-2206003

GX50,TX50..SCM,SDX

GRAY,GRAY,TRIM2#

 1
72830-2206005

GX50,TX50..SCM,SDX

GREIGE,BEIGE,TRIM4#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GX50

EXTRA

 2
90386-06002

GX5#,MX51,TX50..SCM,SDX,SLU,STR

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

GX50

EXTRA

 2
90386-06002

GX5#,MX51,TX50..SCM,SDX,SLU,STR

 2
Common parts
90468-12070
91656-40630
91665-60825
93381-16010

ILLUST NO. 2 OF 2(8003- )

Click highlighted areas on diagram

diagram 9058020001 9058020001 9058020001 9058020001 9058020007 9058020010 9058020015 9058020052 9058020052 9058020106 9058020106 9058020111 9058020153 9058020153 9058020153 9058020153 9058020153 9058020155 9058020155 9058020155 9058020155 9058020155 9058020161
Part # Description Qty Price
Common parts
90580-20001
90580-20007
90580-20010
90580-20015
90580-20052
90580-20106
90580-20111
90580-20153
90580-20155
90580-20161
