GX50-YTMFE (1980)
Toyota Cresta

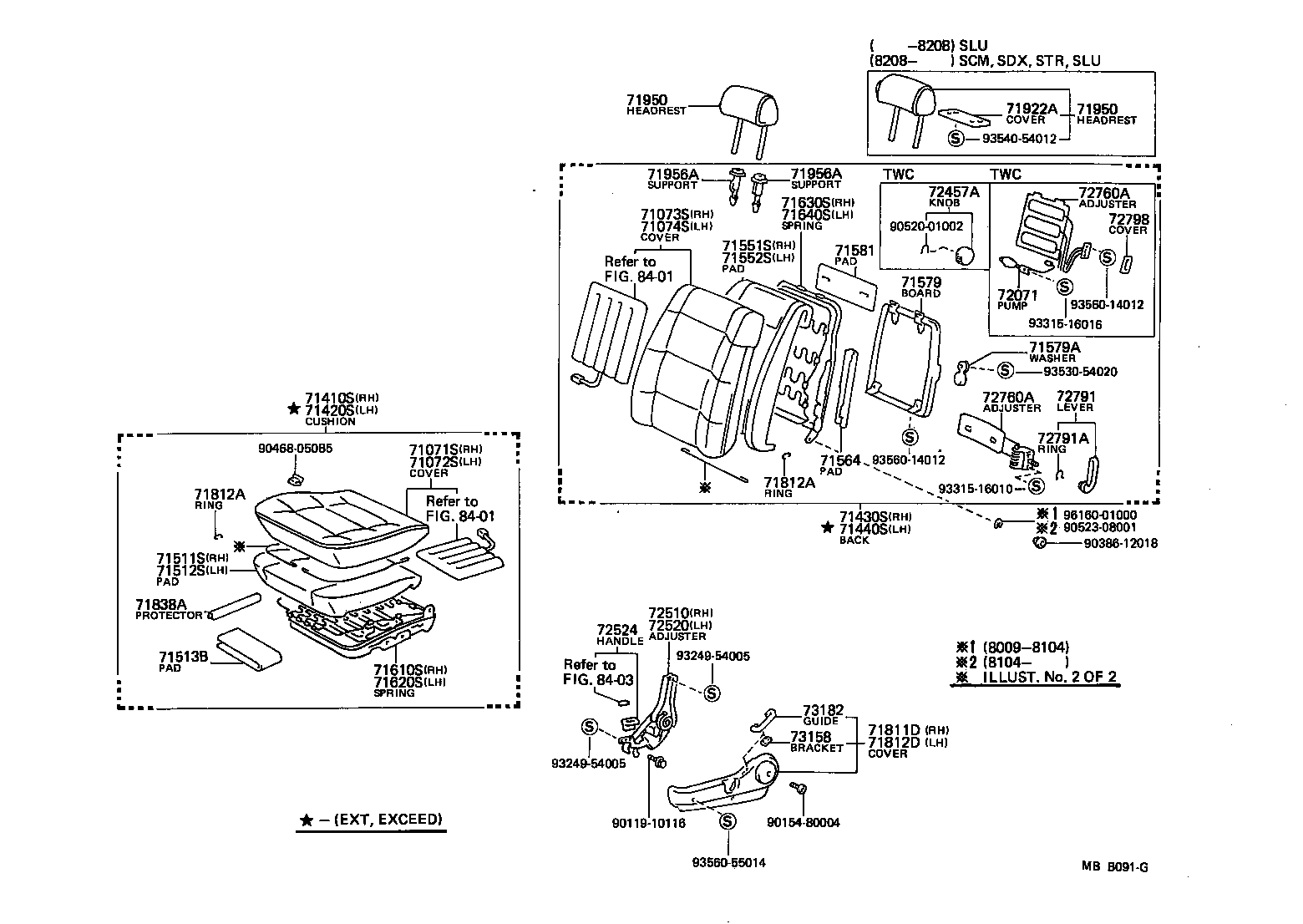

ILLUST NO. 1 OF 2(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2253005 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2253003 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-2253004 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2273005 |
GX50 FB,EXTRA,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2253105 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2253104 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2253103 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-2273004 |
GX50 FB,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2227003 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-2227004 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2227005 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2227104 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2243005 |
GX50 FB,EXTRA,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2227105 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2243004 |
GX50 FB,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2227103 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A130 |
GX50 FB,EXTRA |
1 | ||
| 71073-2278004 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2278005 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2278003 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2278103 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A17005 |
GX50 FB,EXTRA,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2278104 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A17004 |
GX50 FB,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2278105 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2278004 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2278005 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2A130 |
GX50 FB,EXTRA |
1 | ||
| 71073-2278003 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A17005 |
GX50 FB,EXTRA,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2A17004 |
GX50 FB,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2278104 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2278103 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2278105 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2258004 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2258003 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-2258105 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2258005 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71410-2258104 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2258103 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2235004 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2235003 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-2235105 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2235104 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2235005 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2235103 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2284005 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2284104 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2284003 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-2284004 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2284105 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2284103 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2273004 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2273005 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2273003 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-2273105 |
GX50,TX50..SCM,SDX FB,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2273104 |
GX50,TX50..SCM,SDX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2273103 |
GX50,TX50..SCM,SDX FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22150 |
GX50,61,LX60,SX60,TX50..CTM,SCM,SDX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22150 |
GX50,61,LX60,SX60,TX50..CTM,SCM,SDX |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22100 |
GX5#,61,LX60,MX51,61,SX60,TX50 100X750 |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22150 |
GX50,61,LX60,SX60,TX50..CTM,SCM,SDX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22150 |
GX50,61,LX60,SX60,TX50..CTM,SCM,SDX |
1 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71583-22070 |
GX50,TX50 RH |
2 | ||
| 71584-22060 |
GX50,TX50 LH |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22150 |
GX5#,TX50 |
1 | ||
| 71610-20240 |
GX5#,TX50 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20120 |
GX5#,TX50 |
1 | ||
| 71620-22070 |
GX5#,TX50 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22180 |
GX50,TX50 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22140 |
GX50,TX50 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2206001 |
GX5#,MX51,TX50 BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2206006 |
GX5#,MX51,TX50 D-BROWN,BROWN,TRIM4# |
1 | ||
| 71811-2206004 |
GX5#,MX51,TX50 BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2202001 |
GX5#,MX51,TX50 BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2202006 |
GX5#,MX51,TX50 D-BROWN,BROWN,TRIM4# |
1 | ||
| 71812-2202004 |
GX5#,MX51,TX50 BLUE,BLUE,TRIM8# |
1 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2231001 |
GX50,TX50 BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231006 |
GX50,TX50 D-BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231004 |
GX50,TX50 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2231005 |
GX50,TX50..SCM,SDX GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-2231014 |
GX50,TX50..SCM,SDX BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2231003 |
GX50,TX50..SCM,SDX GRAY,GRAY,TRIM2# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2231001 |
GX50,TX50 BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2231006 |
GX50,TX50 D-BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2231004 |
GX50,TX50 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2231005 |
GX50,TX50..SCM,SDX GREIGE,BEIGE,TRIM4# |
2 | ||
| 71910-2231014 |
GX50,TX50..SCM,SDX BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2231003 |
GX50,TX50..SCM,SDX GRAY,GRAY,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006016 |
GX5#,61,LX60,MX51,61,SX60,TX50 ﾛｯｸ付,W/LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX5#,61,LX60,MX51,61,SX60,TX50 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
GX5#,MX51,TX50 ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006004 |
GX5#,61,LX60,MX51,61,SX60,TX50 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
GX5#,61,LX60,MX51,61,SX60,TX50 ﾛｯｸ無,W/O LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006001 |
GX5#,MX51,TX50 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006016 |
GX5#,61,LX60,MX51,61,SX60,TX50 ﾛｯｸ付,W/LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX5#,61,LX60,MX51,61,SX60,TX50 ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
GX5#,MX51,TX50 ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006004 |
GX5#,61,LX60,MX51,61,SX60,TX50 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
GX5#,61,LX60,MX51,61,SX60,TX50 ﾛｯｸ無,W/O LOCK,D-BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006001 |
GX5#,MX51,TX50 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-22080 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-22080 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005001 |
GX5#,MX51,TX50 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005004 |
GX5#,MX51,TX50 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004001 |
GX5#,MX51,TX50 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005006 |
GX5#,61,LX60,MX51,61,SX60,TX50 RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2004006 |
GX5#,61,LX60,MX51,61,SX60,TX50 LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2004004 |
GX5#,MX51,TX50 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-22020 |
GX5#,MX51,TX50 |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-22020 |
GX5#,MX51,TX50 |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001001 |
GX5#,MX51,TX50 BLACK,BLACK,TRIM2# |
1 | ||
| 72791-3001006 |
GX5#,61,LX60,MX51,61,SX60,TX50..CBR,DSL,EFI,TBO D-BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3001004 |
GX5#,MX51,TX50 BLUE,BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GX5#,61,LX60,MX51,61,SX60,TX50..CBR,DSL,EFI,TBO |
1 | ||
| 73158 - BRACKET, SEAT BELT GUIDE SET | ||||
| 73158-20010 |
GX5#,MX51,TX50 |
2 | ||
| 73182 - GUIDE, FRONT SEAT LAP BELT, OUTER | ||||
| 73181-2002001 |
GX5#,MX51,TX50 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 73182-2001001 |
GX5#,MX51,TX50 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 73181-2002006 |
GX5#,MX51,TX50 RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 73182-2001004 |
GX5#,MX51,TX50 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 73181-2002004 |
GX5#,MX51,TX50 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 73182-2001006 |
GX5#,MX51,TX50 LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90154-80004 | ||||
| 90386-12018 | ||||
| 90468-05085 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54005 | ||||
| 93315-16010 | ||||
| 93315-16016 | ||||
| 93530-54020 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8403 | ||||

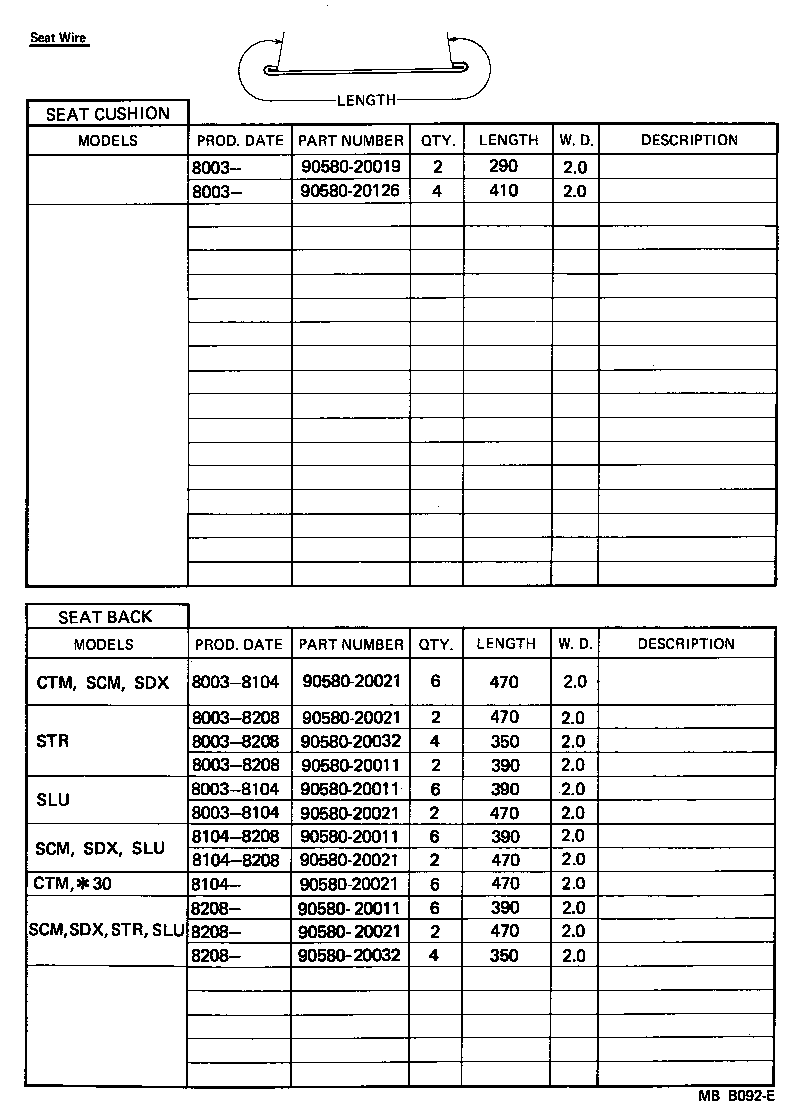

ILLUST NO. 2 OF 2(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20019 | ||||
| 90580-20021 | ||||
| 90580-20032 | ||||
| 90580-20126 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
