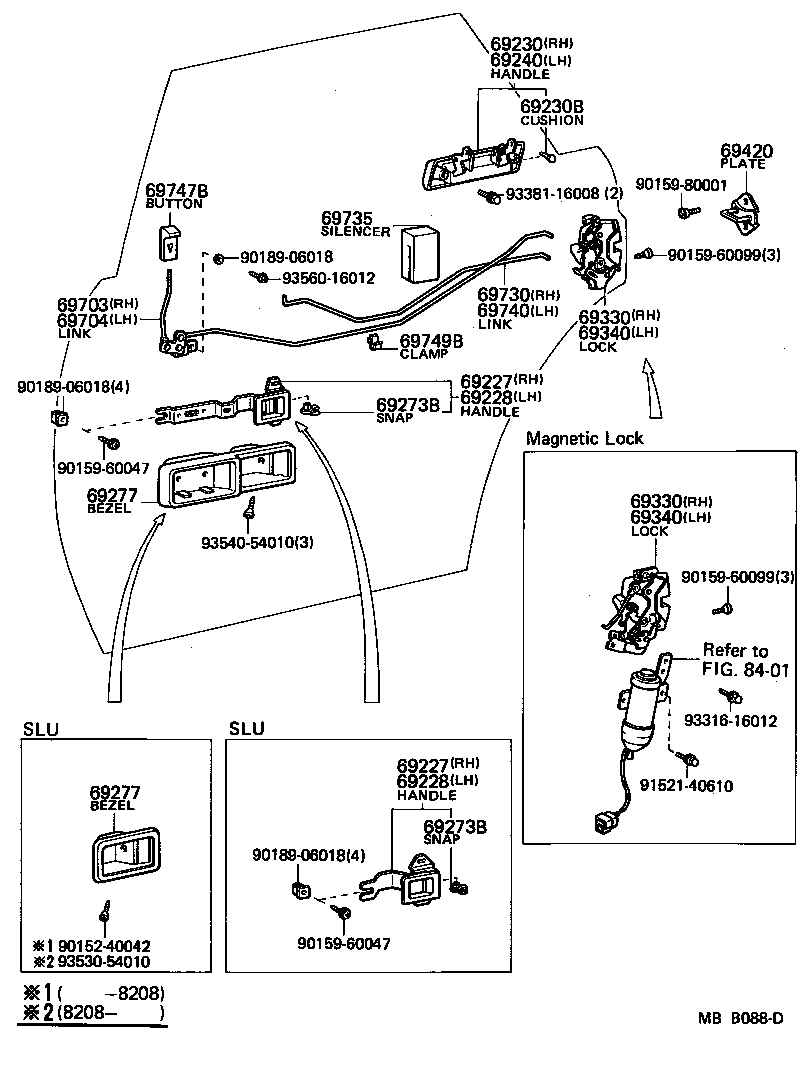

GX50-YTMFE (1980)
Toyota Cresta
(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69207-22030 |
GX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR |
1 | ||
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69207-22030 |
GX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69208-22030 |
GX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69208-22030 |
GX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-22040 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-22040 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69279-12020 |
GX5#,61,LX60,MX51,61,SX60,TX50 LH |
1 | ||
| 69288-12010 |
GX5#,61,LX60,MX51,61,SX60,TX50 RH |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69279-12020 |
GX5#,61,LX60,MX51,61,SX60,TX50 LH |
1 | ||
| 69288-12010 |
GX5#,61,LX60,MX51,61,SX60,TX50 RH |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-2204004 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR RH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277-2204001 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR RH,BLACK,BLACK,TRIM2# |
1 | ||
| 69277-2204006 |
GX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69278-2201001 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR LH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201004 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR LH,BLUE,BLUE,TRIM8# |
1 | ||
| 69278-2201006 |
GX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-2204004 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR RH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277-2204001 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR RH,BLACK,BLACK,TRIM2# |
1 | ||
| 69277-2204006 |
GX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR RH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69278-2201001 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR LH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201004 |
GX5#,MX51,TX50..CTM,SCM,SDX,STR LH,BLUE,BLUE,TRIM8# |
1 | ||
| 69278-2201006 |
GX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR LH,D-BROWN,BROWN,TRIM4# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22060 |
GX5#,TX50 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22060 |
GX5#,TX50 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22070 |
GX5#,TX50 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22070 |
GX5#,TX50 |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-22030 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-22020 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-22020 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-22020 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 69735 - SILENCER, REAR DOOR LOCK LINK | ||||
| 69759-30021 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-22020 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-3002006 |
GX5#,61,LX60,MX51,61,SX60,TX50 D-BROWN,BROWN,TRIM4# |
2 | ||
| 69741-3002001 |
GX5#,MX51,TX50 BLACK,BLACK,TRIM2# |
2 | ||
| 69741-3002004 |
GX5#,MX51,TX50 BLUE,BLUE,TRIM8# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12030 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| Common parts | ||||
| 90152-40042 | ||||
| 90159-60047 | ||||
| 90159-60099 | ||||
| 90159-80001 | ||||
| 90189-06018 | ||||
| 91521-40610 | ||||
| 93316-16012 | ||||
| 93381-16008 | ||||
| 93530-54010 | ||||
| 93540-54010 | ||||
| 93560-16012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
