GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

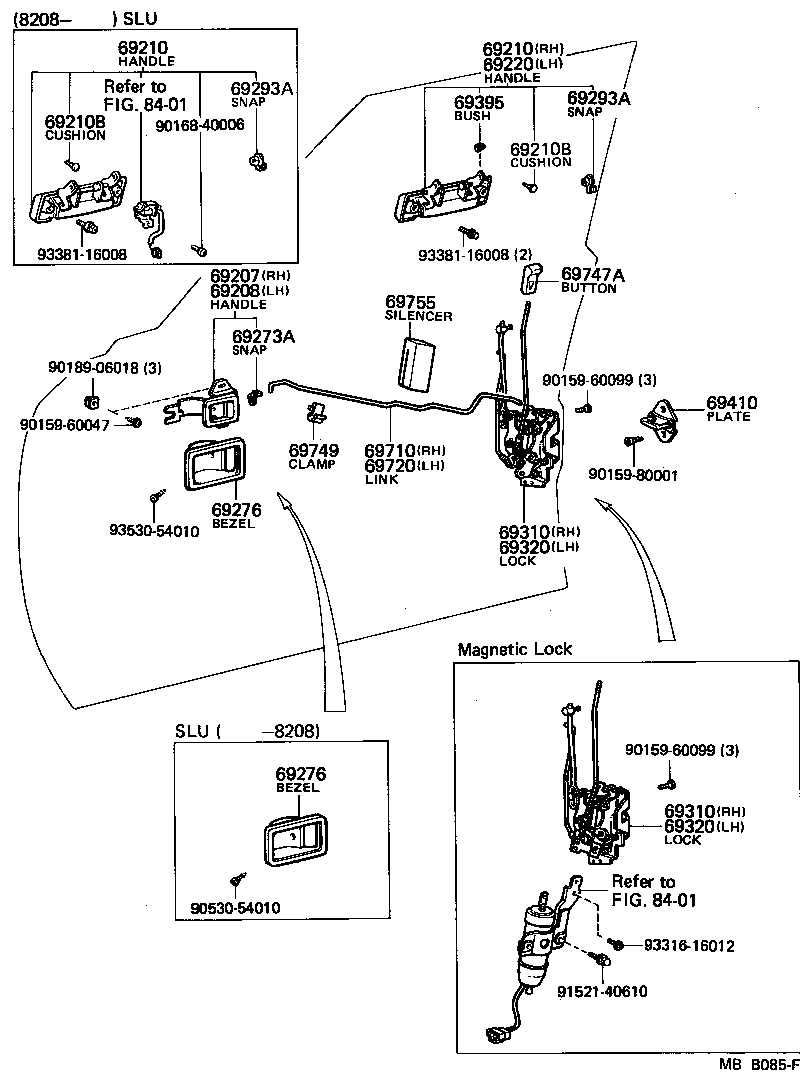

Click highlighted areas on diagram

diagram 69207 69208 69210 69210 69210B 69210B 69220 69273A 69276 69276 69293A 69293A 69310 69310 69320 69320 69395 69410 69710 69720 69747A 69749 69755 8401 8401 9015960047 9015960099 9015960099 9015980001 9016840006 9018906018 9053054010 9152140610 9331616012 9338116008 9338116008 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22040

GX5#,MX51,TX50

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22040

GX5#,MX51,TX50

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GX5#,61,LX60,MX51,61,SX60,TX50

 4
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GX5#,61,LX60,MX51,61,SX60,TX50

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-22040

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69288-12010

GX5#,61,LX60,MX51,61,SX60,TX50

LH

 1
69279-12020

GX5#,61,LX60,MX51,61,SX60,TX50

RH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604001

GX5#,MX51,TX50..CTM,SCM,SDX,STR

BLACK,BLACK,TRIM2#

 2
69277-1604014

GX5#,MX51,TX50..CTM,SCM,SDX,STR

BLUE,BLUE,TRIM8#

 2
69277-1604006

GX5#,MX51,TX50..CTM,SCM,SDX,STR

D-BROWN,BROWN,TRIM4#

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604001

GX5#,MX51,TX50..CTM,SCM,SDX,STR

BLACK,BLACK,TRIM2#

 2
69277-1604014

GX5#,MX51,TX50..CTM,SCM,SDX,STR

BLUE,BLUE,TRIM8#

 2
69277-1604006

GX5#,MX51,TX50..CTM,SCM,SDX,STR

D-BROWN,BROWN,TRIM4#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22100

GX5#,TX50

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22100

GX5#,TX50

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22090

GX5#,TX50

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22090

GX5#,TX50

 1
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69395-20020

GX5#,TX50

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22030

GX5#,61,LX60,MX51,61,SX60,TX50

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3002014

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 2
69741-3002001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 2
69741-3002006

GX5#,61,LX60,MX51,61,SX60,TX50

D-BROWN,BROWN,TRIM4#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

GX5#,MX51,TX50

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-30021

GX5#,61,LX60,MX51,61,SX60,TX50

 2
Common parts
90159-60047
90159-60099
90159-80001
90168-40006
90189-06018
90530-54010
91521-40610
93316-16012
93381-16008
93530-54010
Linked diagrams
8401
