GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

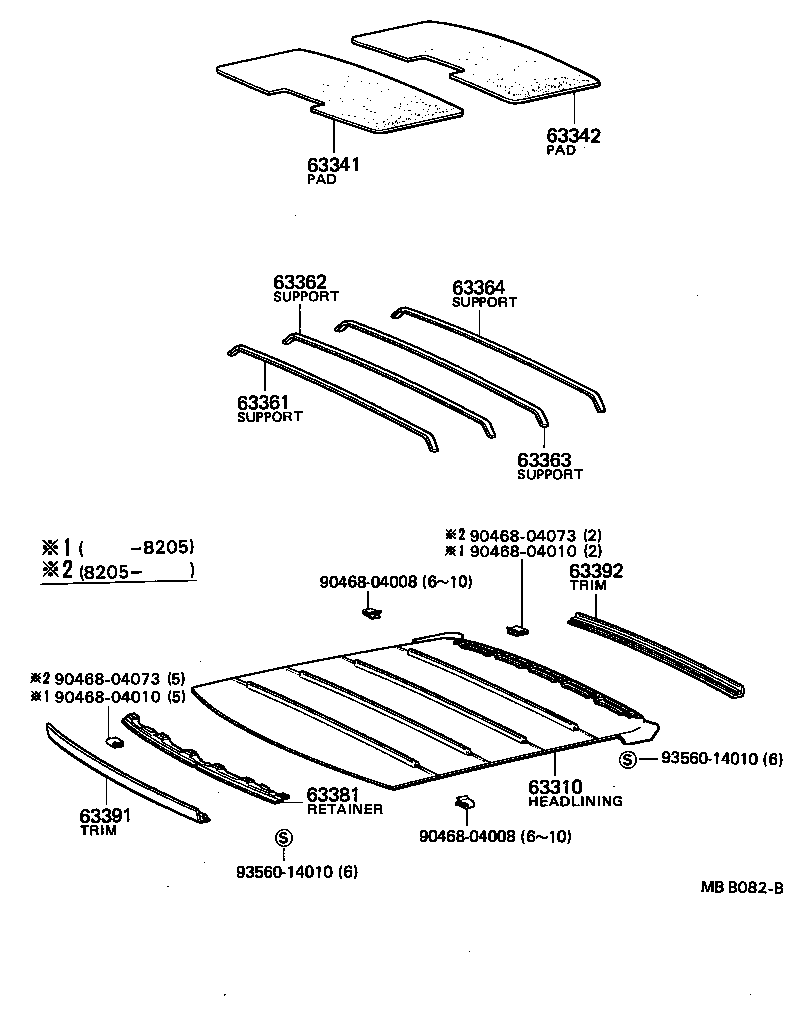

Click highlighted areas on diagram

diagram 63310 63341 63342 63361 63362 63363 63364 63381 63391 63392 9046804008 9046804008 9046804010 9046804010 9046804073 9046804073 9356014010 9356014010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-2211008

GX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR

IVORY,IVORY,TRIM2#,3#,4#

 1
63310-2211004

GX5#,MX51,TX50..CTM,SCM,SDX,STR

BLUE,BLUE,TRIM8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-22080

GX5#,61,LX60,MX51,61,SX60,TX50

 1
63342 - PAD, ROOF SILENCER, NO.2
63341-22080

GX5#,61,LX60,MX51,61,SX60,TX50

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-22060

GX5#,61,LX60,MX51,61,SX60,TX50

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-22060

GX5#,61,LX60,MX51,61,SX60,TX50

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63362-22060

GX5#,61,LX60,MX51,61,SX60,TX50

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63363-22040

GX5#,61,LX60,MX51,61,SX60,TX50

 1
63381 - RETAINER, HEADLINING, FRONT
63381-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-2202001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
63391-2202006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
63391-2202004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-2201006

GX5#,MX51,TX50

D-BROWN,BROWN,TRIM4#

 1
63392-2201001

GX5#,MX51,TX50

BLACK,BLACK,TRIM2#

 1
63392-2201004

GX5#,MX51,TX50

BLUE,BLUE,TRIM8#

 1
Common parts
90468-04008
90468-04010
90468-04073
93560-14010
