GX50-YTMFE (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )

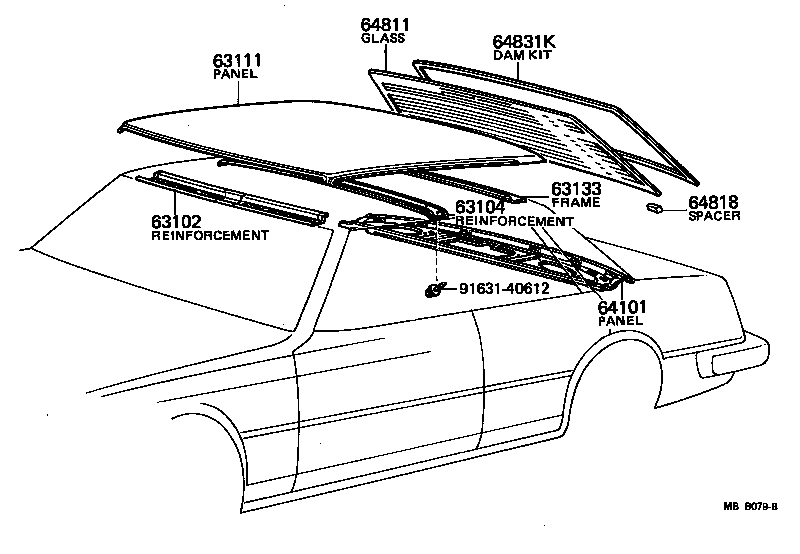

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-22050 |
GX50 EXTRA |
1 | ||
| 63102-22050 |
GX50 EXTRA |
1 | ||
| 63102-22040 |
GX50,61,LX60,MX61,SX60,TX50..CTM,SCM,SDX,STR |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-22030 |
GX50 EXTRA |
1 | ||
| 63103-22030 |
GX50 EXTRA |
1 | ||
| 63103-22040 |
GX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22070 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63133-22040 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22100 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-22180 |
GX5#,61,LX60,MX51,61,SX60,TX50 *EHT,T=4.0,W/O RR WIPER |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56116-30020 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30030 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| Common parts | ||||
| 91631-40612 | ||||
