GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

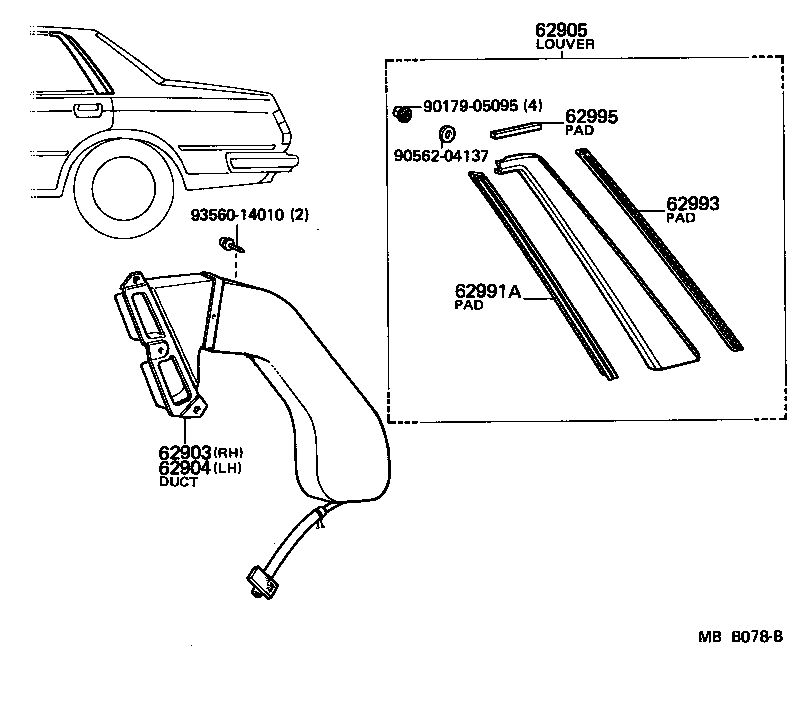

Click highlighted areas on diagram

diagram 62903 62904 62905 62991A 62993 62995 9017905095 9056204137 9356014010
Part # Description Qty Price
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62930-22030

GX5#,61,LX60,MX51,61,SX60,TX50

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62940-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
62905 - LOUVER, QUARTER VENTILATION
62951-29135

GX5#,MX51,TX50

RH

 1
62952-29135

GX5#,MX51,TX50

LH

 1
62991A - PAD, QUARTER VENT LOUVER
62991-22030

GX5#,61,LX60,MX51,61,SX60,TX50

 2
62993 - PAD, QUARTER VENT LOUVER, NO.2
62993-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 2
62995 - PAD, QUARTER VENT LOUVER, NO.3
62995-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 2
Common parts
90179-05095
90562-04137
93560-14010
