GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

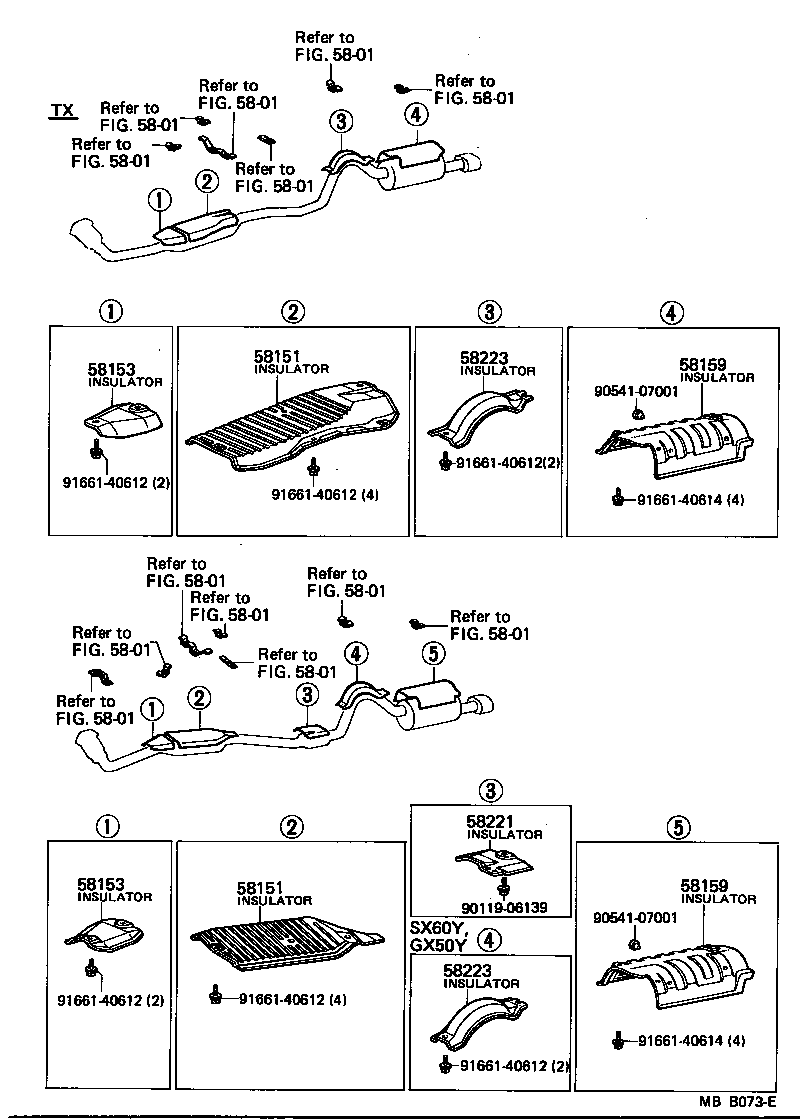

Click highlighted areas on diagram

diagram 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 5801 58151 58151 58153 58153 58159 58159 58221 58223 58223 9011906139 9054107001 9054107001 9166140612 9166140612 9166140612 9166140612 9166140612 9166140612 9166140614 9166140614
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-22041

GX5#,MX51

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-22041

GX5#,MX51

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-22050

GX5#,61,MX51,61,SX60

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-22050

GX5#,61,MX51,61,SX60

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58031-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58031-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-22060

GX5#,MX51

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-22040

GX50,SX60,TX50

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-22040

GX50,SX60,TX50

 1
Common parts
90119-06139
90541-07001
91661-40612
91661-40614
Linked diagrams
5801
