GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

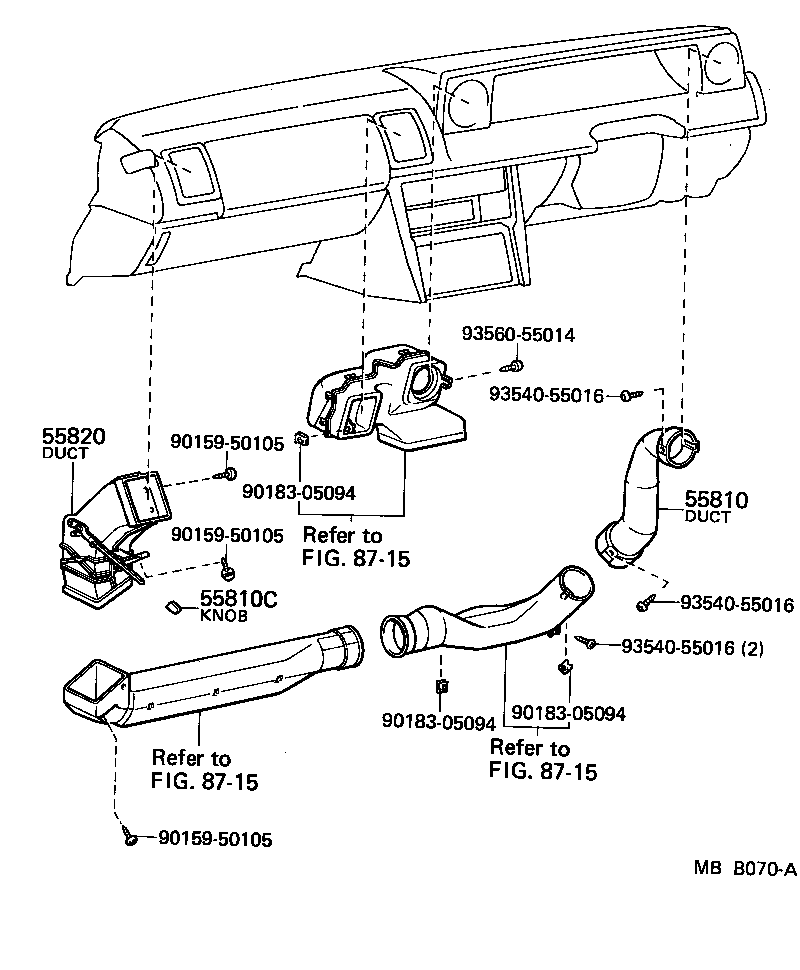

Click highlighted areas on diagram

diagram 55810 55810C 55820 8715 8715 8715 9015950105 9015950105 9015950105 9018305094 9018305094 9018305094 9354055016 9354055016 9354055016 9356055014
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55804-22020

GX5#,LX60,MX51,TX50

 1
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55087-22030

GX5#,61,LX60,MX51,61,SX60,TX50

 1
Common parts
90159-50105
90183-05094
93540-55016
93560-55014
Linked diagrams
8715
