GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

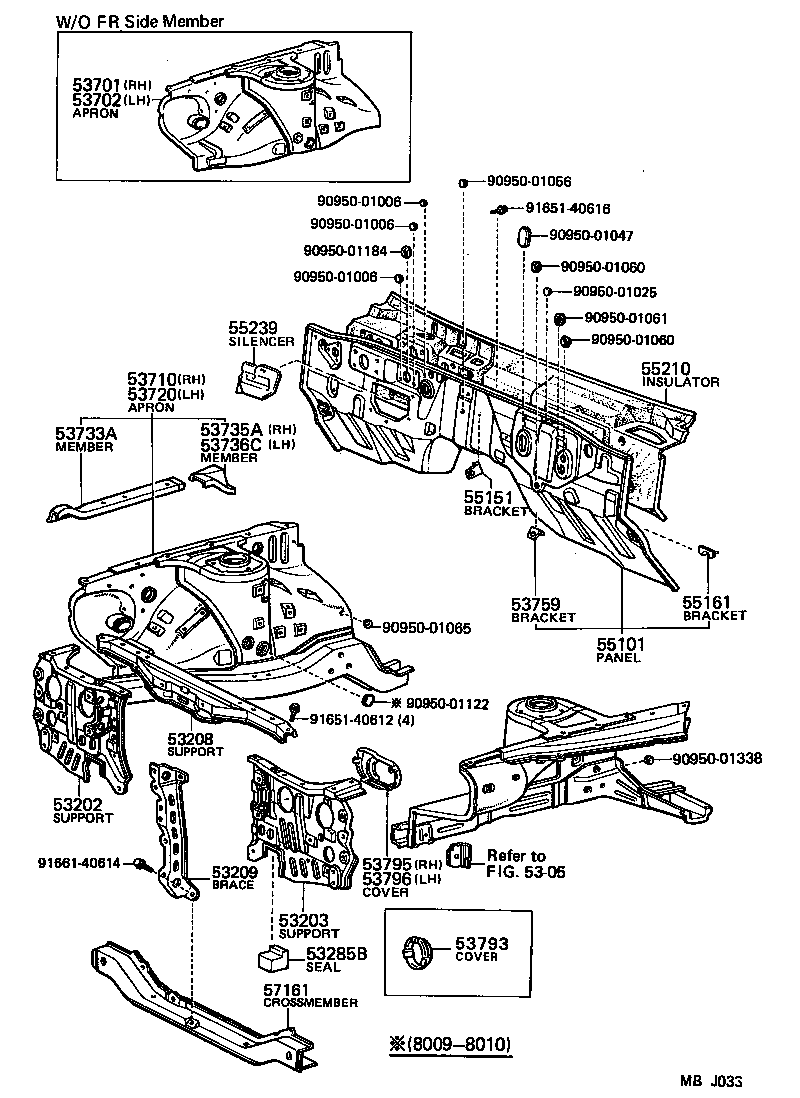

Click highlighted areas on diagram

diagram 5305 53202 53203 53208 53209 53285B 53701 53702 53710 53720 53733A 53735A 53736C 53759 53793 53795 53796 55101 55151 55161 55210 55239 57161 9095001006 9095001006 9095001006 9095001025 9095001047 9095001056 9095001060 9095001060 9095001061 9095001065 9095001122 9095001184 9095001338 9165140612 9165140616 9166140614
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-22060

GX5#,MX51

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-22090

GX5#,MX51,TX50

 1
53208 - SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER
53205-22020

GX5#,MX51,TX50

 1
53209 - BRACE SUB-ASSY, HOOD LOCK
53217-22060

GX5#,TX50

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-22903

GX5#,MX51

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-22905

GX5#,MX51

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-22090

GX5#,MX51

W/URETHANE BUMPER

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-22150

GX5#,MX51

W/URETHANE BUMPER

 1
53759 - BRACKET, FLEXIBLE HOSE MOUNTING, NO.1
53759-12010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
55101 - PANEL SUB-ASSY, DASH
55101-22460

GX5#,61,LX60,MX51,61,SX60,TX50

 1
55161 - BRACKET, HEATER MOUNTING
55164-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-22090

GX5#,TX50

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55212-22020

GX5#,61,LX60,MX51,61,SX60,TX50

 1
57161 - CROSSMEMBER, FRONT
57104-22070

GX5#,61,LX60,MX51,61,SX60,TX50

 1
Common parts
90950-01006
90950-01025
90950-01047
90950-01056
90950-01060
90950-01061
90950-01065
90950-01122
90950-01184
90950-01338
91651-40612
91651-40616
91661-40614
Linked diagrams
5305
