GX50-YTMFE (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )

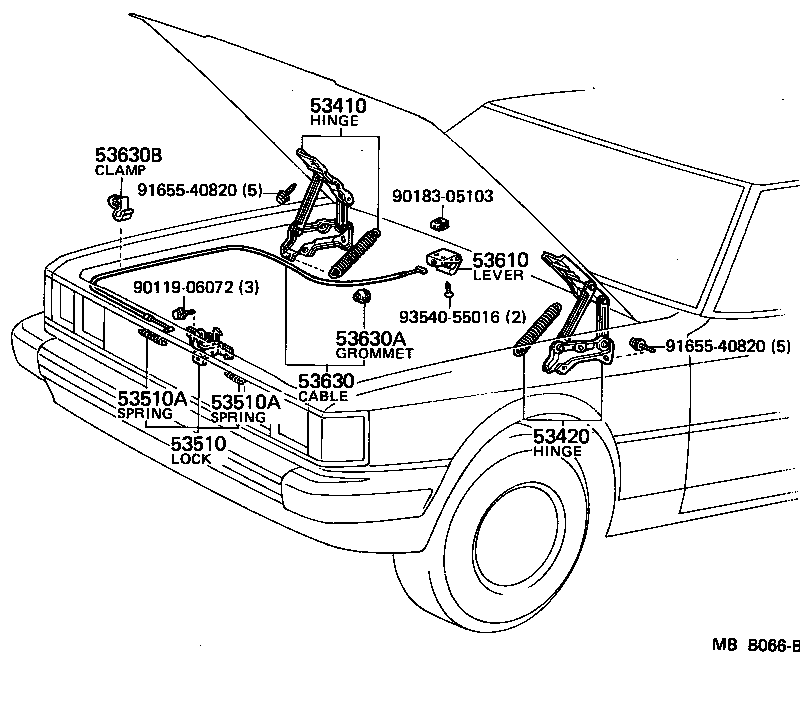

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-22040 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-22040 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-30100 |
GX5#,TX50 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
GX5#,61,LX60,MX51,61,SX60,TX50 線径=0.9,ｺｲﾙ巻数=21.25,CW=21,WD=0.9 |
1 | ||
| 90506-18024 |
GX5#,TX50 CW=18,WD=1.8 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
GX5#,61,LX60,MX51,61,SX60,TX50 線径=0.9,ｺｲﾙ巻数=21.25,CW=21,WD=0.9 |
1 | ||
| 90506-18024 |
GX5#,TX50 CW=18,WD=1.8 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53601-3003005 |
GX5#,MX51,TX50 GREIGE,BEIGE,TRIM4# |
1 | ||
| 53601-3003001 |
GX5#,MX51,TX50 BLACK,BLACK,TRIM2# |
1 | ||
| 53601-3003004 |
GX5#,MX51,TX50 BLUE,BLUE,TRIM8# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-22070 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90480-15194 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 69749-12010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90183-05103 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
