GX50-YTMFE (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003-8208)

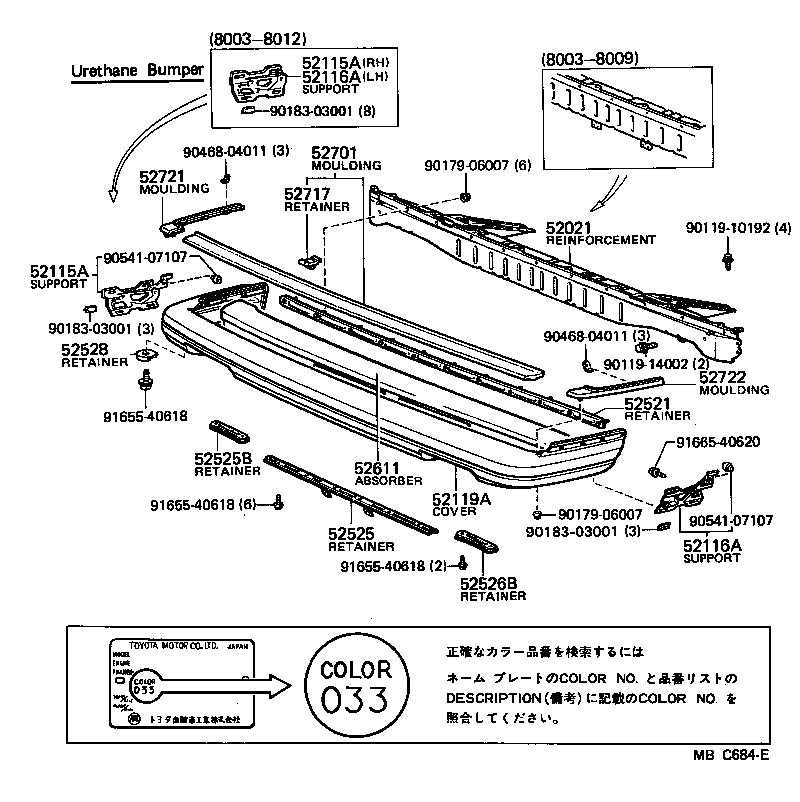

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-22041 |
GX5#,MX51,TX50 |
1 | ||
| 52021-22040 |
GX5#,TX50 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-22060 |
GX5#,TX50 |
1 | ||
| 52115-22061 |
GX5#,TX50 |
1 | ||
| 52061-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-22060 |
GX5#,TX50 |
1 | ||
| 52115-22061 |
GX5#,TX50 |
1 | ||
| 52061-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-22031 |
GX5#,TX50 |
1 | ||
| 52116-22030 |
GX5#,TX50 |
1 | ||
| 52062-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-22031 |
GX5#,TX50 |
1 | ||
| 52116-22030 |
GX5#,TX50 |
1 | ||
| 52062-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-22010 |
GX5#,TX50 BLACK |
1 | ||
| 52119-2203106 |
GX50 EXTRA,BROWN-M,BROWN,490 |
1 | ||
| 52119-2203108 |
GX50 EXTRA,WHITE,IVORY,033 |
1 | ||
| 52119-2203104 |
GX50 EXTRA,BLUE-M,BLUE,865 |
1 | ||
| 52119-22011 |
GX5#,MX51,TX50 BLACK |
1 | ||
| 52119-2203104 |
GX5#,MX51 BLUE-M,BLUE,865 |
1 | ||
| 52119-2203108 |
GX5#,MX51 WHITE,IVORY,033 |
1 | ||
| 52119-2203105 |
GX5#,MX51 BEIGE-M,BEIGE,4A6 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-22040 |
GX5#,MX51,TX50 |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52506-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52525-22010 |
GX5#,TX50 |
1 | ||
| 52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH | ||||
| 52526-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH | ||||
| 52526-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52528 - RETAINER, FRONT BUMPER, LOWER CORNER | ||||
| 52528-20010 |
GX5#,MX51,TX50 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52701 - MOULDING SUB-ASSY, FRONT BUMPER | ||||
| 52701-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52717 - RETAINER, FRONT BUMPER MOULDING | ||||
| 52717-22010 |
GX5#,MX51,TX50 |
8 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-22010 |
GX5#,MX51,TX50 |
1 | ||
| Common parts | ||||
| 90119-10192 | ||||
| 90119-14002 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90468-04011 | ||||
| 90541-07107 | ||||
| 91655-40618 | ||||
| 91665-40620 | ||||
