GX50-YTMFE (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )EFI

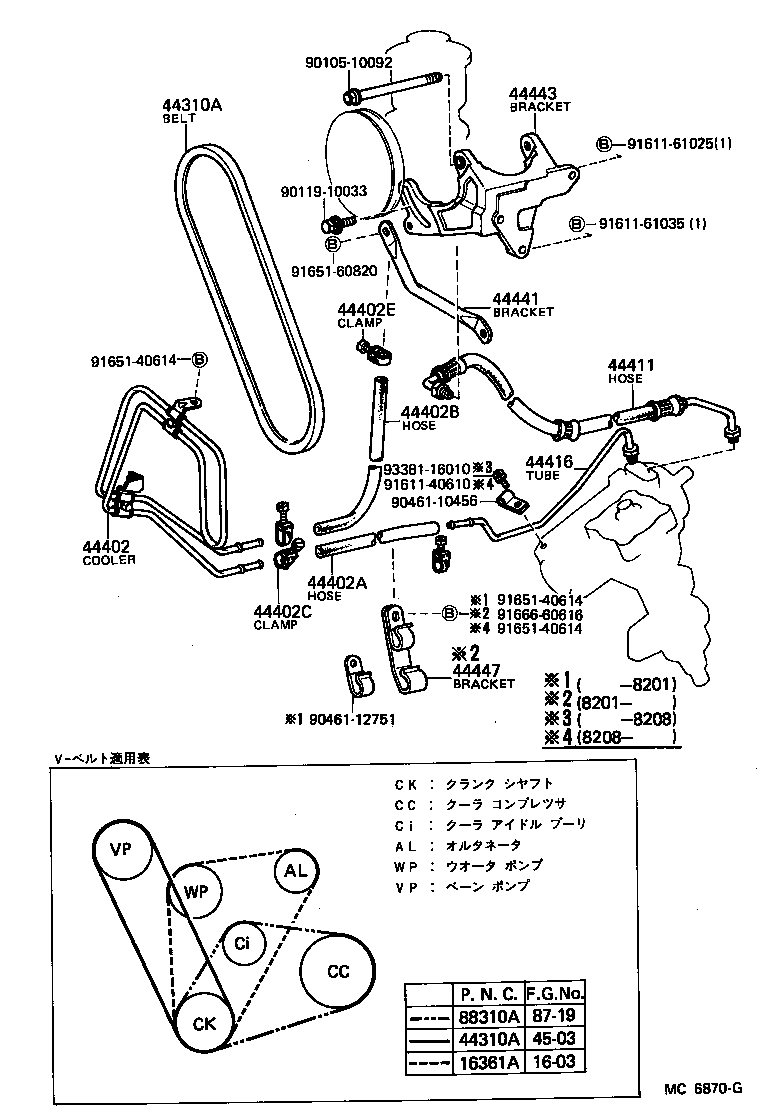

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-51130 |
1GEU..GX5#,61 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02092 |
GX5#,61..EFI |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02092 |
GX5#,61..EFI |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-22060 |
GX5#,MX51 |
1 | ||
| 44402-22050 |
GX5# |
1 | ||
| 44402A - HOSE, POWER STEERING OIL COOLER INLET | ||||
| 90445-18095 |
GX5# |
1 | ||
| 90445-18083 |
GX5# |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90445-18084 |
GX5# |
1 | ||
| 44412-22030 |
GX5#,MX51 |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
GX5#,61,MX51,61,SX60 |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
GX5#,61,MX51,61,SX60 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-22140 |
GX5# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-22070 |
GX5# |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-22010 |
GX5#,61..EFI |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-22030 |
GX5#,61..EFI |
1 | ||
| 44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT | ||||
| 44447-22010 |
GX5#,MX51 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00920 |
GX5# |
1 | ||
| 99322-00880 |
GX5#..SDX,STR |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90119-10033 | ||||
| 90461-10456 | ||||
| 90461-12751 | ||||
| 91611-40610 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91651-40614 | ||||
| 91651-60820 | ||||
| 91666-60616 | ||||
| 93381-16010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
