GX50-YTMFE (1980)
Toyota Cresta

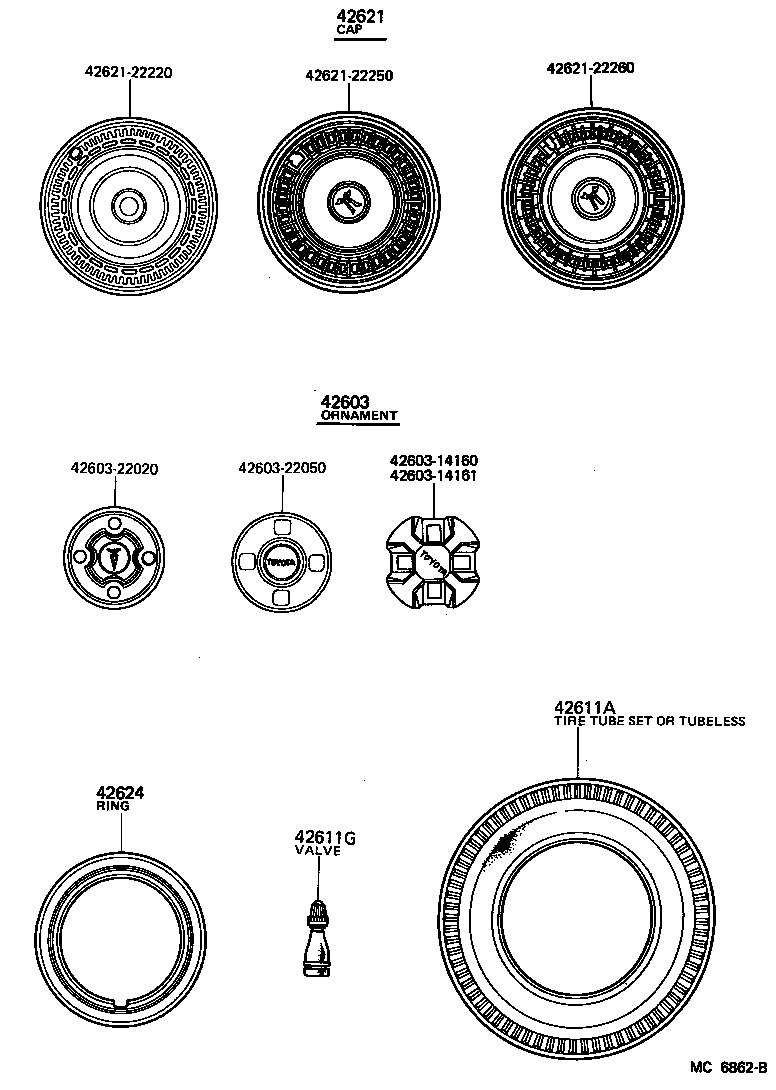

ILLUST NO. 1 OF 2(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-22180 |
GX50,TX50 6.45-14-4,TUBELESS |
5 | ||
| 42605-22140 |
GX50,TX50 6.45-14-4,W/TUBE |
5 | ||
| 42652-22240 |
GX50,TX50 175SR14,TUBELESS |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
5 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-22220 |
GX5#,TX50..CTM,SCM,SDX,SLU |
4 | ||
| 42621-22220 |
GX50,TX50 |
4 | ||
| Common parts | ||||
| 42603-14160 | ||||
| 42603-14161 | ||||
| 42603-22020 | ||||
| 42603-22050 | ||||
| 42621-22220 | ||||
| 42621-22250 | ||||
| 42621-22260 | ||||
ILLUST NO. 2 OF 2(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-20070 |
GX50,TX50 5J-14,TYPE A |
5 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-20070 |
GX50,TX50 5J-14,TYPE A |
5 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-20070 |
GX50,TX50 5J-14,TYPE A |
5 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
GX5#,MX51,TX50..CTM,SCM,SDX,SLU WHEEL CAP |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
GX5#,MX51,TX50..CTM,SCM,SDX,SLU WHEEL CAP |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03022 |
GX5#,61,LX60,MX51,61,SX60,TX50 40G,厚さ=9.5,40G |
1 | ||
| 90942-03017 |
GX5#,61,LX60,MX51,61,SX60,TX50 20G,厚さ=8,20G |
1 | ||
| 90942-03031 |
GX5#,61,LX60,MX51,61,SX60,TX50 80G,厚さ=9.5,80G |
1 | ||
| 90942-03020 |
GX5#,61,LX60,MX51,61,SX60,TX50 30G,厚さ=10,30G |
1 | ||
| 90942-03025 |
GX5#,61,LX60,MX51,61,SX60,TX50 50G,厚さ=9.5,50G |
1 | ||
| 90942-03029 |
GX5#,61,LX60,MX51,61,SX60,TX50 70G,厚さ=9.5,70G |
1 | ||
| 90942-03041 |
GX5#,61,LX60,MX51,61,SX60,TX50 10G,厚さ=7.5,10G |
1 | ||
| 90942-03027 |
GX5#,61,LX60,MX51,61,SX60,TX50 60G,厚さ=9.5,60G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03022 |
GX5#,61,LX60,MX51,61,SX60,TX50 40G,厚さ=9.5,40G |
1 | ||
| 90942-03017 |
GX5#,61,LX60,MX51,61,SX60,TX50 20G,厚さ=8,20G |
1 | ||
| 90942-03031 |
GX5#,61,LX60,MX51,61,SX60,TX50 80G,厚さ=9.5,80G |
1 | ||
| 90942-03020 |
GX5#,61,LX60,MX51,61,SX60,TX50 30G,厚さ=10,30G |
1 | ||
| 90942-03025 |
GX5#,61,LX60,MX51,61,SX60,TX50 50G,厚さ=9.5,50G |
1 | ||
| 90942-03029 |
GX5#,61,LX60,MX51,61,SX60,TX50 70G,厚さ=9.5,70G |
1 | ||
| 90942-03041 |
GX5#,61,LX60,MX51,61,SX60,TX50 10G,厚さ=7.5,10G |
1 | ||
| 90942-03027 |
GX5#,61,LX60,MX51,61,SX60,TX50 60G,厚さ=9.5,60G |
1 | ||
