GX50-YTMFE (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003-8010)MTM

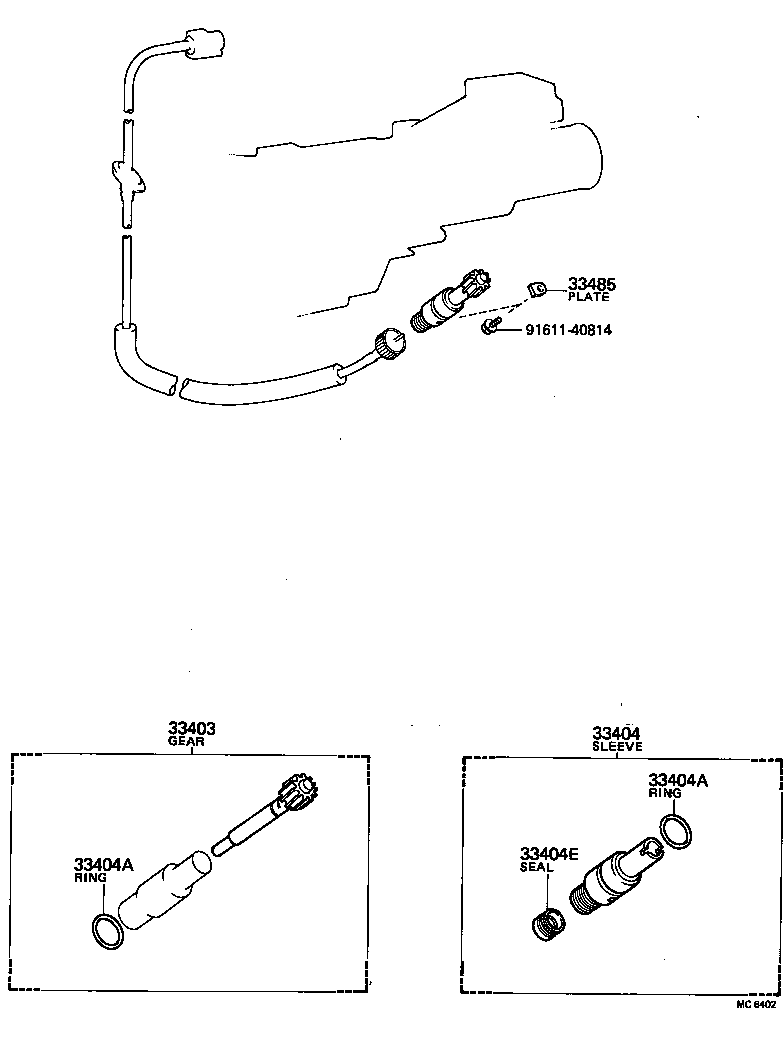

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-69026 |
GX50,TX50..MTM N=19 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-30040 |
GX5#,TX50..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
GX5#,TX50..MTM |
1 | ||
| 96710-02030 |
GX5#,TX50..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
GX5#,TX50..MTM |
1 | ||
| 96710-02030 |
GX5#,TX50..MTM |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
GX5#,61,LX60,SX60,TX50..MTM |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
GX5#,61,LX60,SX60,TX50..MTM |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
(8010- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-69026 |
GX50,TX50..MTM N=19 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-30040 |
GX5#,TX50..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
GX5#,TX50..MTM |
1 | ||
| 96710-02030 |
GX5#,TX50..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
GX5#,TX50..MTM |
1 | ||
| 96710-02030 |
GX5#,TX50..MTM |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
GX5#,61,LX60,SX60,TX50..MTM |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
GX5#,61,LX60,SX60,TX50..MTM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
