GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8208)1GEU

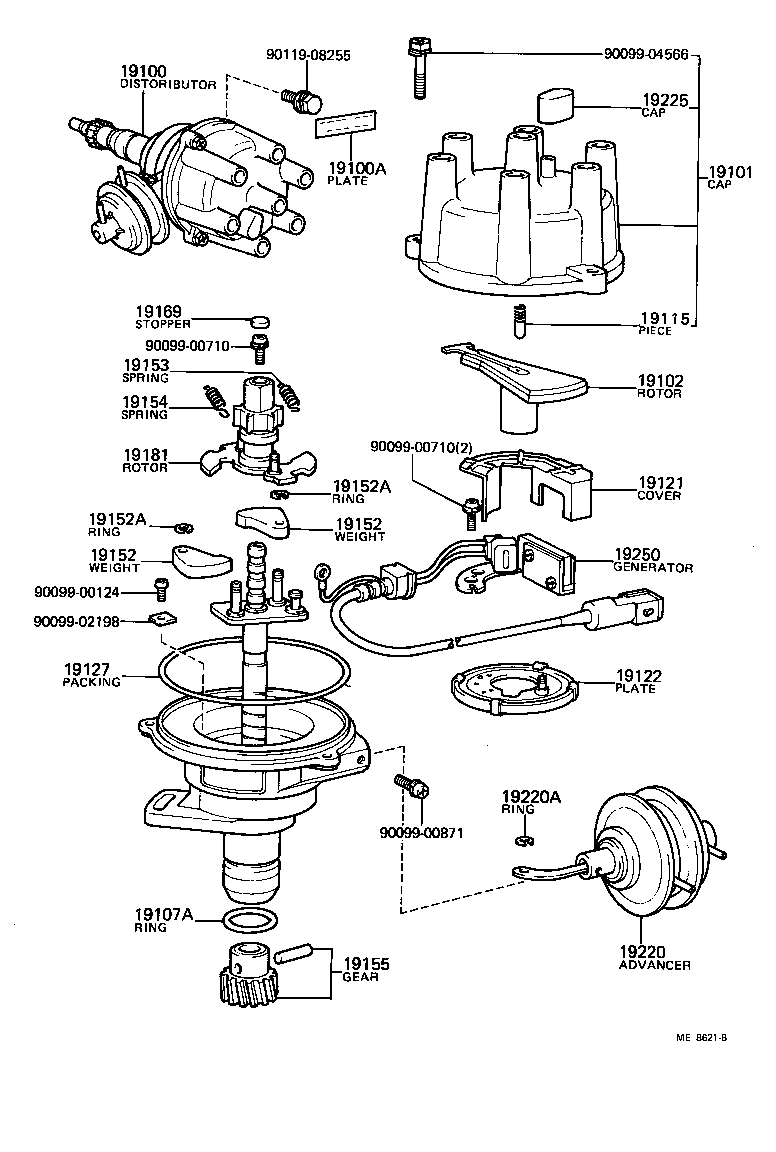

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19121 19122 19127 19152 19152 19152A 19152A 19153 19154 19155 19169 19181 19220 19220A 19225 19250 9009900124 9009900710 9009900710 9009900871 9009902198 9009904566 9011908255
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-70010

1GEU..GX5#

 1
19100-70020

1GEU..GX5#

 1
19100A - TAPE, SEALING
90919-24004

1G#..GX5#,61

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-70010

1GEU..GX5#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-70010

1GEU..GX5#,61

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14018

1G#..GX5#,61

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1G#..GX5#,61

 2
19121 - COVER, DUST PROOF
19121-27020

1GEU..GX5#,61

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-88262

1GEU..GX5#,61

 1
19127 - PACKING, DUST PROOF
19127-52020

1G#..GX5#,61

 1
19152 - WEIGHT, GOVERNOR
19152-45060

1GEU..GX5#

 2
19152-45060

1GEU..GX5#

 2
19152 - WEIGHT, GOVERNOR
19152-45060

1GEU..GX5#

 2
19152-45060

1GEU..GX5#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

1GEU..GX5#,61

 4
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

1GEU..GX5#,61

 4
19153 - SPRING, GOVERNOR, A
19153-70010

1GEU..GX5#

 1
19154 - SPRING, GOVERNOR, B
19154-70010

1GEU..GX5#

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-70010

1GEU..GX5#,61

 1
19169 - STOPPER, CAM GREASE
19169-32010

1GEU..GX5#,61

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-70010

1GEU..GX5#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-70010

1GEU..GX5#

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07104

1GEU..GX5#

 1
19225 - CAP, RUBBER
19225-41140

1G#..GX5#,61

 1
19250 - GENERATOR ASSY, SIGNAL
19250-70010

1GEU..GX5#

 1
19250-70020

1GEU..GX5#

 1
Common parts
90099-00124
90099-00710
90099-00871
90099-02198
90099-04566
90119-08255
