GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

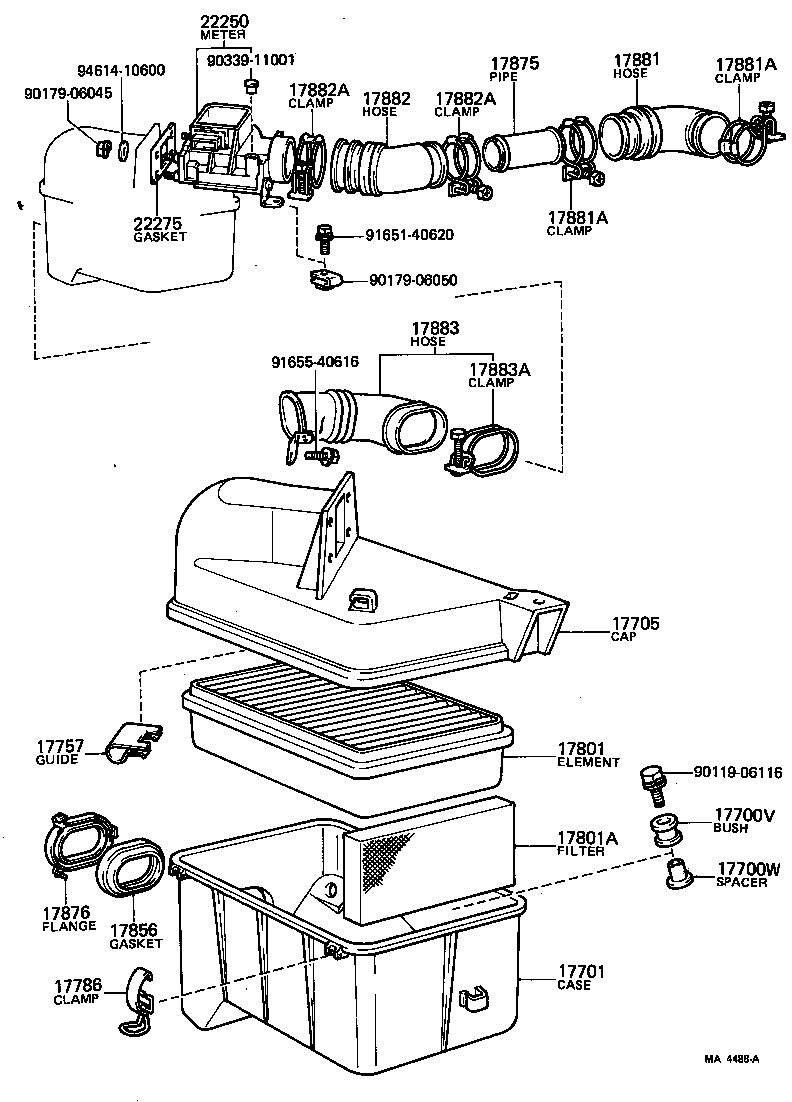

(8003-8112)1GEU

Click highlighted areas on diagram

diagram 17700V 17700W 17701 17705 17757 17786 17801 17801A 17856 17875 17876 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 22250 22275 9011906116 9017906045 9017906050 9033911001 9165140620 9165540616 9461410600
Part # Description Qty Price
17700V - BUSH(FOR AIR CLEANER)
90385-08005

1G#..GX5#,61

 3
17700W - SPACER(FOR AIR CLEANER)
90561-06003

1G#..GX5#,61

 3
17701 - CASE SUB-ASSY, AIR CLEANER
17711-70010

1GEU..GX5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17735-70010

1GEU..GX5#

 1
17757 - GUIDE, AIR CLEANER OUTLET
17757-70010

1G#..GX5#,61

 1
17786 - CLAMP, AIR CLEANER
17786-26010

1GEU..GX5#

 4
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70010

1G#..GX5#,61

 1
17801A - PREFILTER
17813-70010

1G#..GX5#,61

 1
17856 - GASKET, AIR INTAKE FLANGE
17856-70010

1G#..GX5#,61

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-70010

1GEU..GX5#,61

 1
17876 - FLANGE, AIR INTAKE
17876-70010

1G#..GX5#,61

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70010

1GEU..GX5#,61

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1GEU..GX5#,61

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1GEU..GX5#,61

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-70010

1GEU..GX5#,61

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1GEU..GX5#,61

PIPE SIDE

 1
96111-10800

1GEU..GX5#,61

AIR CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1GEU..GX5#,61

PIPE SIDE

 1
96111-10800

1GEU..GX5#,61

AIR CLEANER SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-70010

1GEU..GX5#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-01012

1GEU..GX5#

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-70010

1GEU..GX5#

 1
22275 - GASKET, AIR FLOW METER
22275-41010

1G#..GX5#,61

 1
Common parts
90119-06116
90179-06045
90179-06050
90339-11001
91651-40620
91655-40616
94614-10600

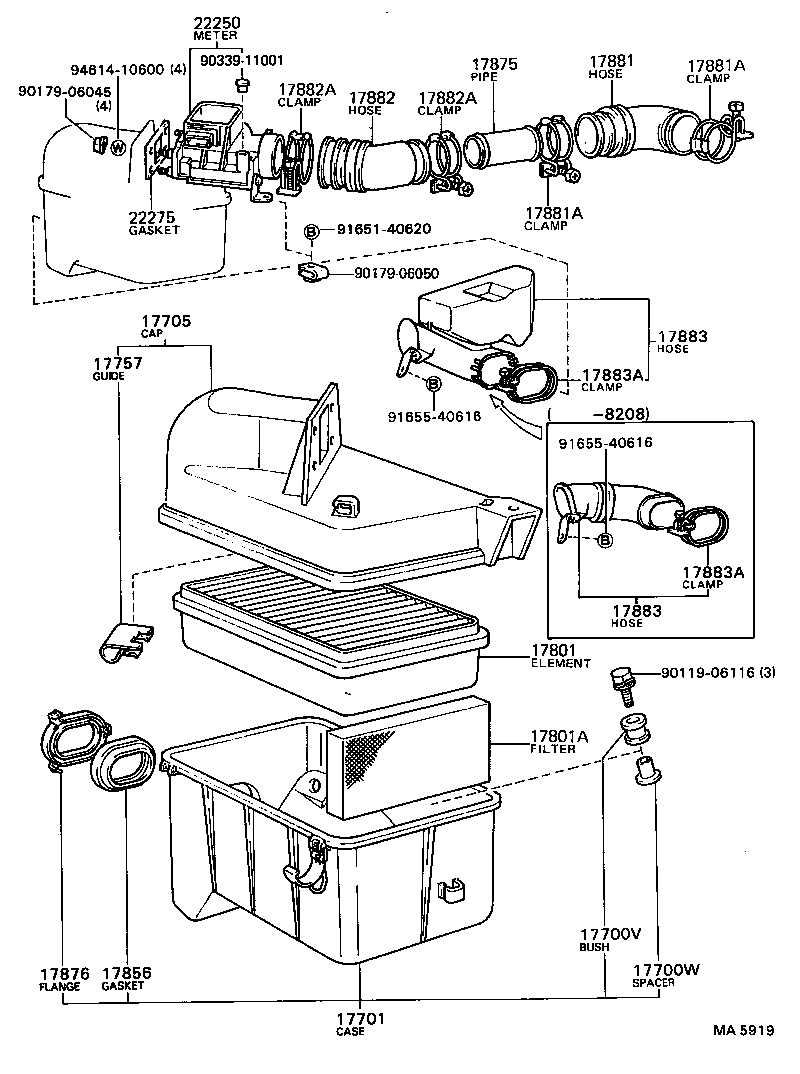

(8112- )1GEU

Click highlighted areas on diagram

diagram 17700V 17700W 17701 17705 17757 17801 17801A 17856 17875 17876 17881 17881A 17881A 17882 17882A 17882A 17883 17883 17883A 17883A 22250 22275 9011906116 9017906045 9017906050 9033911001 9165140620 9165540616 9165540616 9461410600
Part # Description Qty Price
17700V - BUSH(FOR AIR CLEANER)
90385-08005

1G#..GX5#,61

 3
17700W - SPACER(FOR AIR CLEANER)
90561-06003

1G#..GX5#,61

 3
17701 - CASE SUB-ASSY, AIR CLEANER
17711-70010

1GEU..GX5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17735-70010

1GEU..GX5#

 1
17757 - GUIDE, AIR CLEANER OUTLET
17757-70010

1G#..GX5#,61

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70010

1G#..GX5#,61

 1
17801A - PREFILTER
17813-70010

1G#..GX5#,61

 1
17856 - GASKET, AIR INTAKE FLANGE
17856-70010

1G#..GX5#,61

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-70010

1GEU..GX5#,61

 1
17876 - FLANGE, AIR INTAKE
17876-70010

1G#..GX5#,61

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70010

1GEU..GX5#,61

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1GEU..GX5#,61

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

1GEU..GX5#,61

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-70010

1GEU..GX5#,61

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1GEU..GX5#,61

PIPE SIDE

 1
96111-10800

1GEU..GX5#,61

AIR CLEANER SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10710

1GEU..GX5#,61

PIPE SIDE

 1
96111-10800

1GEU..GX5#,61

AIR CLEANER SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-70010

1GEU..GX5#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-70010

1GEU..GX5#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-01012

1GEU..GX5#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-01012

1GEU..GX5#

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-70010

1GEU..GX5#

 1
22275 - GASKET, AIR FLOW METER
22275-41010

1G#..GX5#,61

 1
Common parts
90119-06116
90179-06045
90179-06050
90339-11001
91651-40620
91655-40616
94614-10600
