GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )1GEU

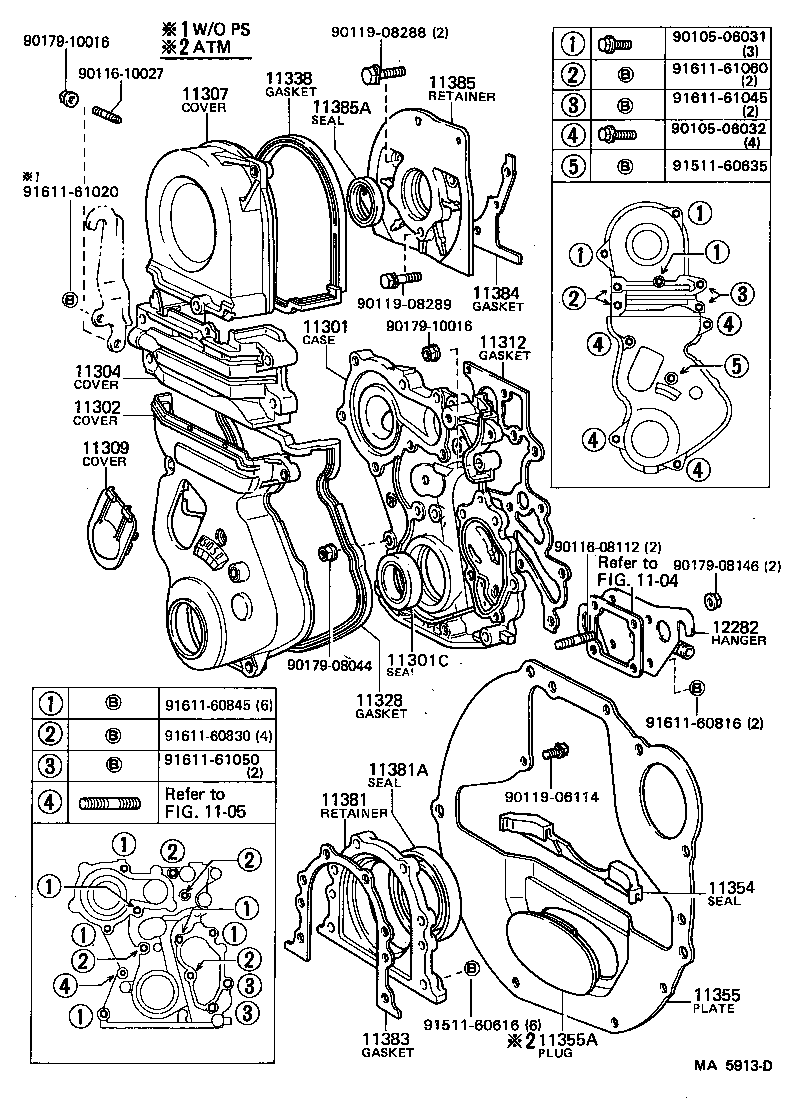

Click highlighted areas on diagram

diagram 1104 1105 11301 11301C 11302 11304 11307 11309 11312 11328 11338 11354 11355 11355A 11381 11381A 11383 11384 11385 11385A 12282 9010506031 9010506032 9011608112 9011610027 9011906114 9011908288 9011908289 9017908044 9017908146 9017910016 9017910016 9151160616 9151160635 9161160816 9161160830 9161160845 9161161020 9161161045 9161161050 9161161060
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-70010

1GEU..GX5#

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45003

1G#..GX5#,61

HTC 45 62 8

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-70010

1GEU..GX5#,61

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-70010

1GEU..GX5#,61

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-70010

1GEU..GX5#,61

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-70010

1GEU..GX5#,61

 1
11312 - GASKET, FRONT END PLATE
11312-70010

1GEU..GX5#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70010

1GEU..GX5#,61

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11329-70010

1GEU..GX5#,61

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010

1G#..GX5#,61

 1
11355 - PLATE, REAR END
11355-70010

1G#..GX5#,61..5F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010

1G#..GX5#,61

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

1G#..GX5#,61

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70010

1G#..GX5#,61

 1
11384 - GASKET, OIL SEAL RETAINER, NO.2
11384-70010

1GEU..GX5#,61

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-70010

1GEU..GX5#,61

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38017

1GEU..GX5#,61

HTC 38 50 8

 1
12282 - HANGER, ENGINE, NO.2
12282-70010

1GEU..GX5#

 1
Common parts
90105-06031
90105-06032
90116-08112
90116-10027
90119-06114
90119-08288
90119-08289
90179-08044
90179-08146
90179-10016
91511-60616
91511-60635
91611-60816
91611-60830
91611-60845
91611-61020
91611-61045
91611-61050
91611-61060
Linked diagrams
1104
1105
