GX50-YTMFE (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8204)1GEU

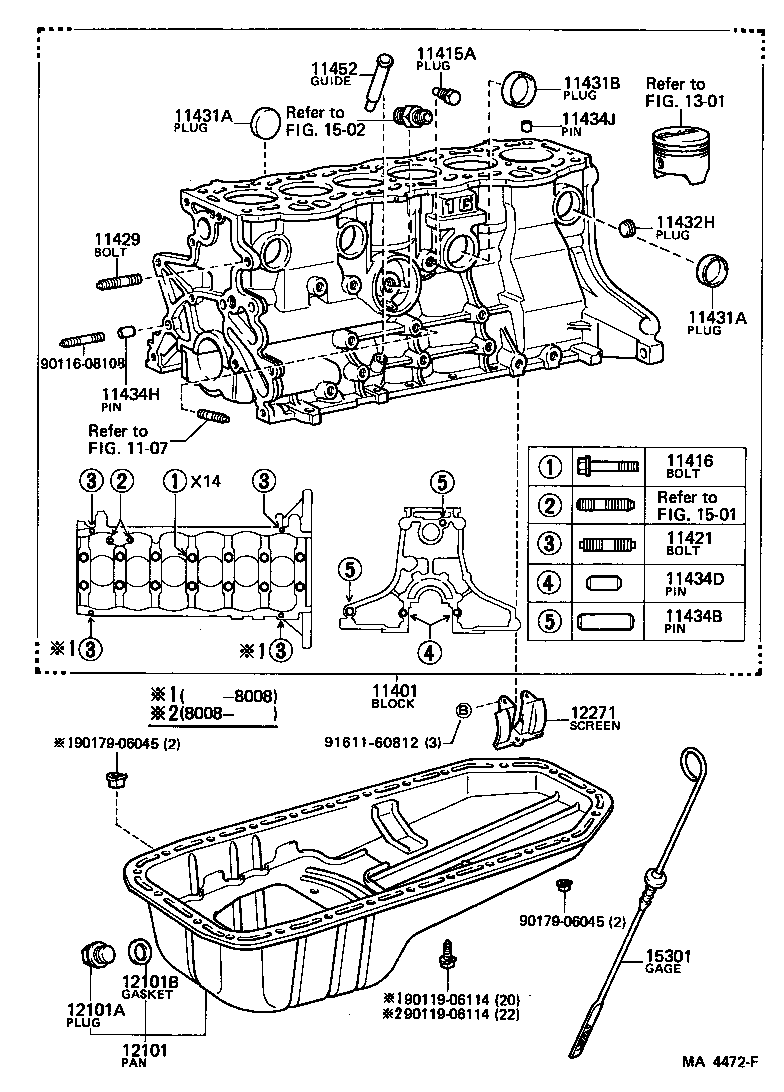

Click highlighted areas on diagram

diagram 1107 11401 11415A 11416 11421 11429 11431A 11431A 11431B 11432H 11434B 11434D 11434H 11434J 11452 12101 12101A 12101B 12271 1301 1501 1502 15301 9011608108 9011906114 9011906114 9017906045 9017906045 9161160812
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79015

1GEU..GX5#

 1
11401-79025

1GEU..GX5#

 1
11401-79016

1GEU..GX5#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

1G#..GX5#,61

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1G#..GX5#,61

*10-1.25PX67-18

 14
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1GEU..GX5#

L=24.5,S=8.5&8.5

 4
11429 - BOLT, STUD(FOR ALTERNATOR BRACKET)
90116-10051

1G#..GX5#,61

L=70,S=12&22

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1G#..GX5#,61

OD=35

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1G#..GX5#,61

OD=35

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1G#..GX5#,61

OD=40

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1G#..GX5#,61

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1G#..GX5#,61

長さ=22,外径=10,L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1G#..GX5#,61

長さ=14,外径=6,L=14,OD=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11021

1G#..GX5#,61

L=8,OD=11,ID=8.5

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1G#..GX5#,61

L=12,OD=13,ID=10.5

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22011

1GEU..GX5#,61

 1
12101 - PAN SUB-ASSY, OIL
12101-79015

1GEU..GX5#,61

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1G#..GX5#,61

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1G#..GX5#,61

 1
12271 - SCREEN, OIL SEPARATOR
12271-70010

1GEU..GX5#,61

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-70010

1GEU..GX5#,61

 1
Common parts
90116-08108
90119-06114
90179-06045
91611-60812
Linked diagrams
1107
1301
1501
1502

(8204- )1GEU

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11421 11429 11431A 11431A 11431B 11432H 11434B 11434D 11434H 11434J 11452 12101 12101A 12101B 12271 1301 1301 15301 9011608108 9011906114 9017906045 9161160812
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79015

1GEU..GX5#

 1
11401-79025

1GEU..GX5#

 1
11401-79016

1GEU..GX5#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

1G#..GX5#,61

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1G#..GX5#,61

*10-1.25PX67-18

 14
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1GEU..GX5#

L=24.5,S=8.5&8.5

 4
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1GEU..GX5#

L=24.5,S=8.5&8.5

 4
11429 - BOLT, STUD(FOR ALTERNATOR BRACKET)
90116-10051

1G#..GX5#,61

L=70,S=12&22

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1G#..GX5#,61

OD=35

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1G#..GX5#,61

OD=35

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1G#..GX5#,61

OD=40

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1G#..GX5#,61

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1G#..GX5#,61

長さ=22,外径=10,L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1G#..GX5#,61

長さ=14,外径=6,L=14,OD=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11021

1G#..GX5#,61

L=8,OD=11,ID=8.5

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1G#..GX5#,61

L=12,OD=13,ID=10.5

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22011

1GEU..GX5#,61

 1
12101 - PAN SUB-ASSY, OIL
12101-79015

1GEU..GX5#,61

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1G#..GX5#,61

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1G#..GX5#,61

 1
12271 - SCREEN, OIL SEPARATOR
12271-70010

1GEU..GX5#,61

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-70010

1GEU..GX5#,61

 1
Common parts
90116-08108
90119-06114
90179-06045
91611-60812
Linked diagrams
1301
