GX50-YTMFE (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )

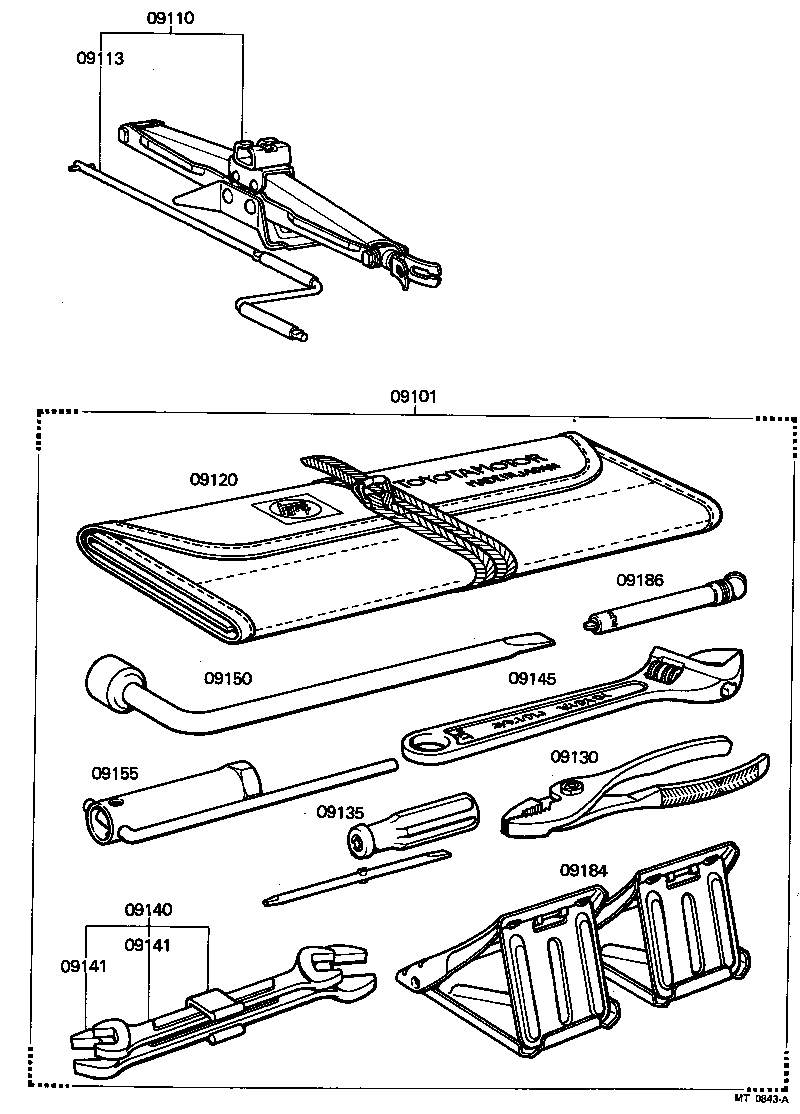

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09101 - TOOL SET, STANDARD W/O JACK | ||||
| 09101-22021 |
GX5#,MX51 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09110-22020 |
GX5#,61,MX51,61,SX60,TX50 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-22010 |
GX5#,61,MX51,61,SX60,TX50 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-22010 |
GX5#,MX51,TX50 |
1 | ||
| 09130 - PLIERS | ||||
| 99913-21500 |
GX5#,MX51,TX50 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 09140 - SPANNER SET | ||||
| 09140-00070 |
GX5#,MX51,TX50 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-00130 |
GX5#,MX51,TX50 14X17 |
1 | ||
| 09141-00120 |
GX5#,MX51,TX50 10X12 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-00130 |
GX5#,MX51,TX50 14X17 |
1 | ||
| 09141-00120 |
GX5#,MX51,TX50 10X12 |
1 | ||
| 09145 - WRENCH, MONKEY | ||||
| 99911-10200 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-22010 |
GX5#,MX51 |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 09186 - GAGE, TIRE | ||||
| 09186-00010 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
