GX105-CEPQK (1998)
Toyota Cresta
Production
Aug 1998
-
Jun 2001
Engine
1GFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

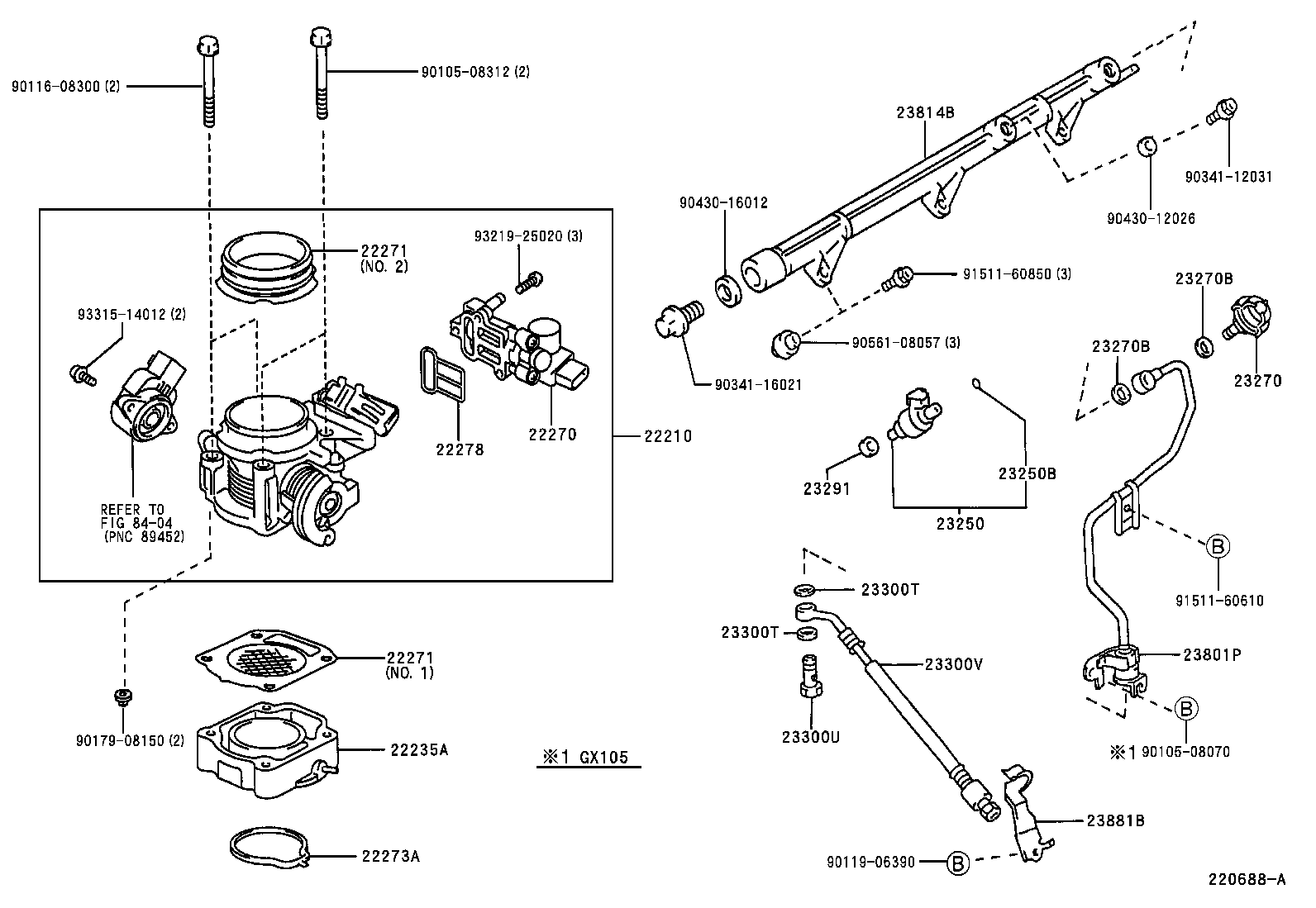

ILLUST NO. 1 OF 3(9808- )1GFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70410 |
1GFE..GX10# |
1 | ||
| 22235A - INLET, AUXILIARY AIR | ||||
| 22235-70010 |
1GFE..GX10# |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-70130 |
1GFE..GX10# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-70030 |
1GFE..GX10# NO.1 |
1 | ||
| 22271-70040 |
1GFE..GX10# NO.2 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-70030 |
1GFE..GX10# NO.1 |
1 | ||
| 22271-70040 |
1GFE..GX10# NO.2 |
1 | ||
| 22273A - GASKET, THROTTLE BODY, NO.2 | ||||
| 22273-70020 |
1GFE..GX10# |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-46020 |
1GFE..GX10# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-70120 |
1GFE..GX10# |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1GFE..GX10# |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-46010 |
1GFE..GX10# |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-41081 |
1GFE..GX10# |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-41081 |
1GFE..GX10# |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1GFE..GX10# |
6 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
1GFE..GX10# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
1GFE..GX10# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12029 |
1GFE..GX10# |
1 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01421 |
1GFE..GX105 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-70130 |
1GFE..GX105 |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-70050 |
1GFE..GX10# |
1 | ||
| 23881B - BRACKET, FUEL HOSE | ||||
| 23881-46040 |
1GFE..GX105 |
1 | ||
| Common parts | ||||
| 90105-08070 | ||||
| 90105-08312 | ||||
| 90116-08300 | ||||
| 90119-06390 | ||||
| 90179-08150 | ||||
| 90341-12031 | ||||
| 90341-16021 | ||||
| 90430-12026 | ||||
| 90430-16012 | ||||
| 90561-08057 | ||||
| 91511-60610 | ||||
| 91511-60850 | ||||
| 93219-25020 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8404 | ||||
