GX100-CEPSK (1998)

Toyota Cresta

Production Aug 1998 - Jun 2001
Engine 1GFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )1GFE

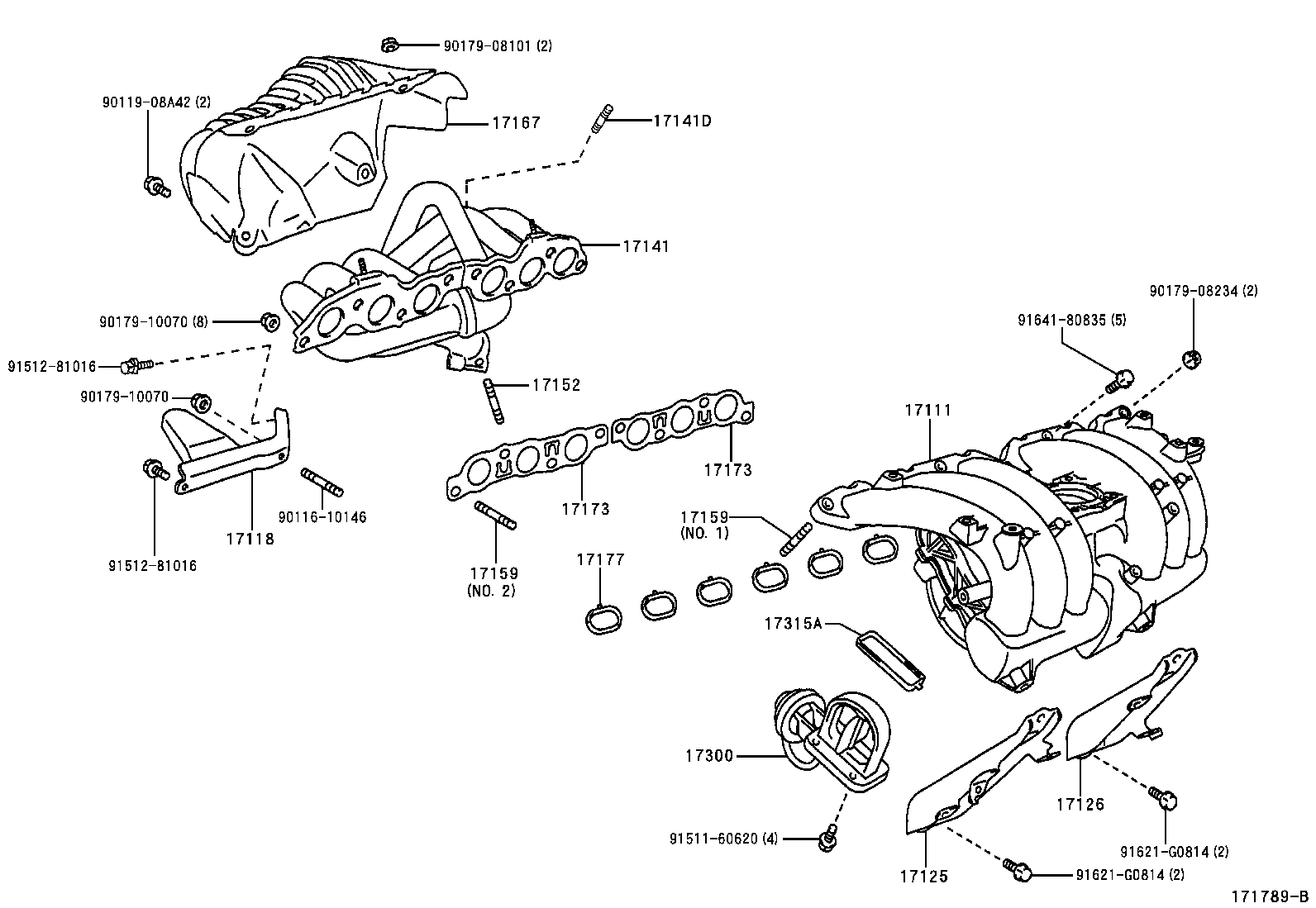

Click highlighted areas on diagram

diagram 17111 17118 17125 17126 17141 17141D 17152 17159 17159 17167 17173 17173 17177 17300 17315A 9011610146 9011908A42 9017908101 9017908234 9017910070 9017910070 9151160620 9151281016 9151281016 91621G0814 91621G0814 9164180835
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-70080

1GFE..GX100

 1
17101-70100

1GFE..GX10#

 1
17118 - STAY, MANIFOLD
17118-70110

1GFE..GX10#

 1
17118-70100

1GFE..GX100

 2
17125 - STAY, SURGE TANK, NO.1
17125-70020

1GFE..GX100

 1
17126 - STAY, SURGE TANK, NO.2
17126-70030

1GFE..GX100

 1
17141 - MANIFOLD, EXHAUST
17141-70090

1GFE..GX10#

 1
17141-70070

1GFE..GX100

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

1GFE..GX10#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

1GFE..GX10#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-C0832

1GFE..GX10#

NO.1

 2
90116-10063

1GFE..GX100

NO.2

 9
90116-10205

1GFE..GX10#

NO.2

 8
90116-08281

1GFE..GX100

NO.1

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-C0832

1GFE..GX10#

NO.1

 2
90116-10063

1GFE..GX100

NO.2

 9
90116-10205

1GFE..GX10#

NO.2

 8
90116-08281

1GFE..GX100

NO.1

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-70050

1GFE..GX10#

 1
17167-70040

1GFE..GX100

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70020

1GFE..GX100

 3
17173-70050

1GFE..GX10#

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70020

1GFE..GX100

 3
17173-70050

1GFE..GX10#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-70040

1GFE..GX100

 1
17177-70050

1GFE..GX10#

 6
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-70010

1GFE..GX10#

 1
17315A - GASKET, INTAKE AIR CONTROL VALVE
17315-70010

1GFE..GX10#

 1
Common parts
90116-10146
90119-08A42
90179-08101
90179-08234
90179-10070
91511-60620
91512-81016
91621-G0814
91641-80835
