GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

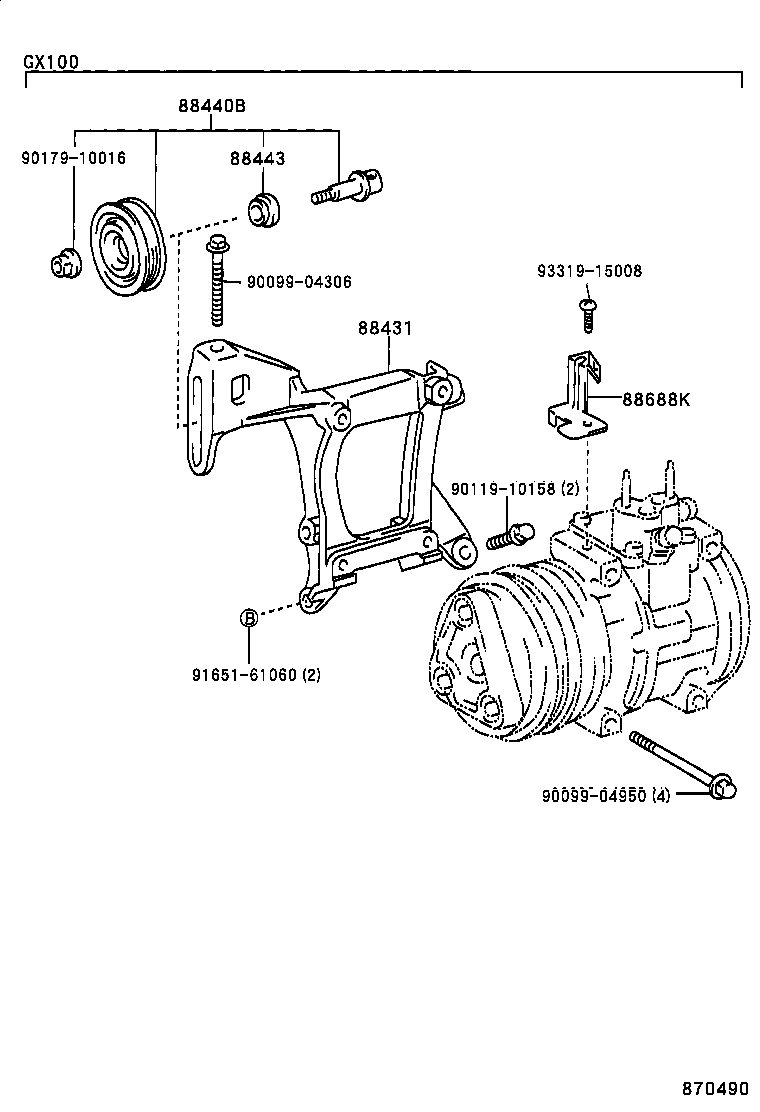

ILLUST NO. 1 OF 2(9609-9808)GX100

Click highlighted areas on diagram

diagram 88431 88440B 88443 88688K 9009904306 9009904950 9011910158 9017910016 9165161060 9331915008
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-24060

GX100

 1
88440B - PULLEY ASSY, IDLE
88440-26100

GX100

 1
88443 - COLLAR, IDLE PULLEY
88443-36010

GX100,LX100

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-2A120

GX100

 1
Common parts
90099-04306
90099-04950
90119-10158
90179-10016
91651-61060
93319-15008

ILLUST NO. 2 OF 2(9609- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907063 9009907065 9009907114 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-2A040

GX100

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

GX100,JZX10#,LX100

 1
88320 - COMPRESSOR ASSY, COOLER
88320-2A060

GX100

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

GX10#,JZX10#,LX100

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-2A010

GX100,LX100

 1
88410 - CLUTCH ASSY, MAGNET
88410-2A040

GX100

 1
Common parts
90099-04349
90099-07063
90099-07065
90099-07114
93319-15008
