GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609-9808)GX100

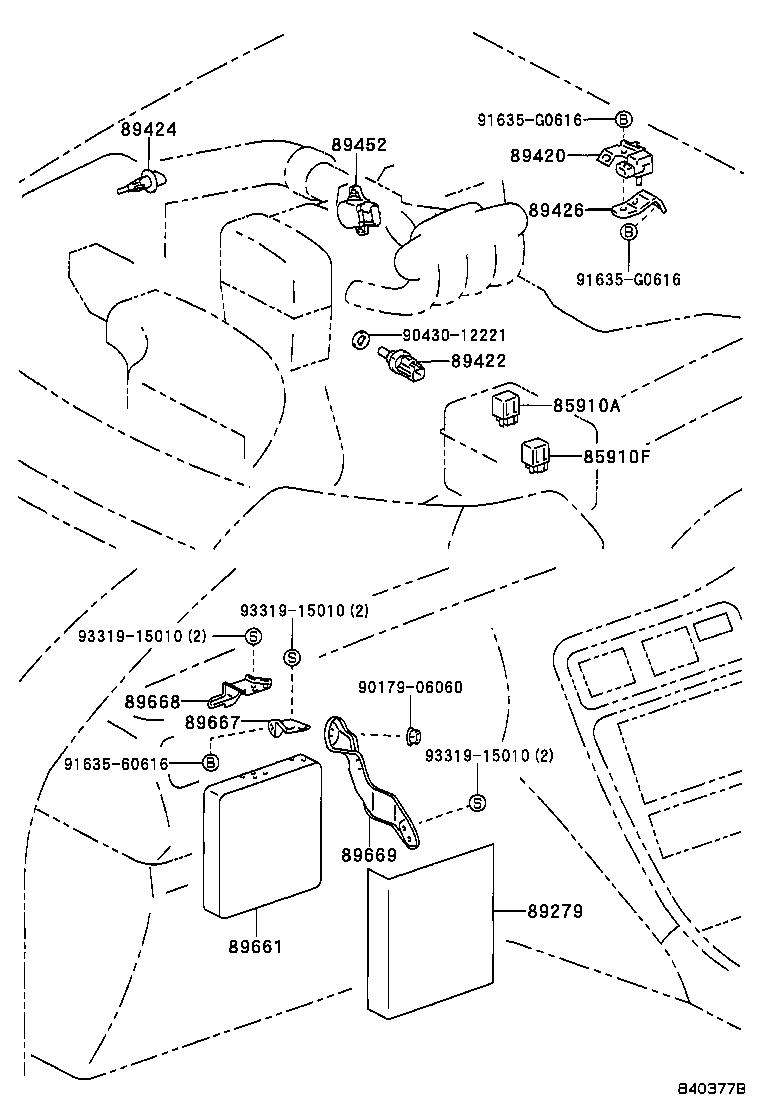

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89420 89422 89424 89426 89452 89661 89667 89668 89669 9017906060 9043012221 9163560616 91635G0616 91635G0616 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

GX10#,JZX10#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

GX10#,JZX10#

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-22030

GX10#,JZX10#

 1
89420 - SENSOR ASSY, VACUUM
89420-22270

GX100

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

GX100,JZX10#..EXC,EXCG,ROU,SLT

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

GX10#,JZX10#..EXC,EXCG,ROU,ROUS,SLT

 1
89426 - BRACKET, VACUUM SENSOR
89426-22190

GX100

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22090

GX100,JZX101

 1
89661 - COMPUTER, ENGINE CONTROL
89661-22810

GX100..MTM

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-22130

GX10#,JZX10#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-22170

GX10#,JZX10#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-22200

GX10#,JZX10#

 1
Common parts
90179-06060
90430-12221
91635-60616
91635-G0616
93319-15010
