GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )MTM ; (9609- )ROU,ROUG,ROUS,SC

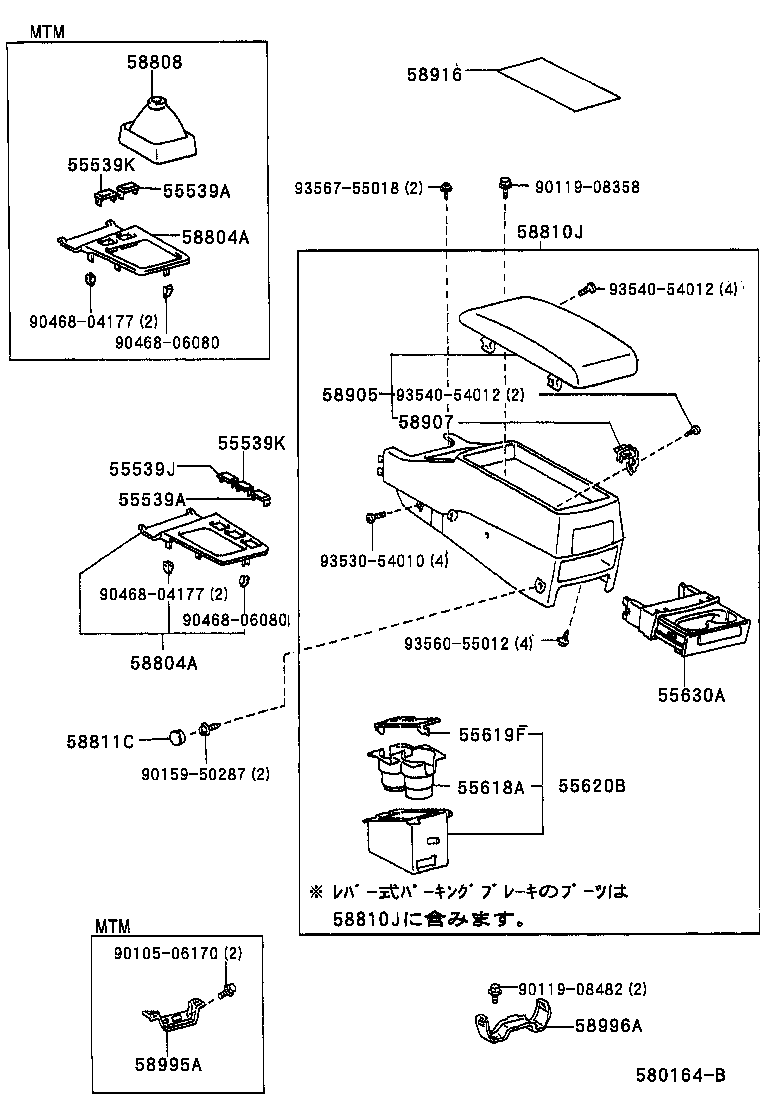

Click highlighted areas on diagram

diagram 55539A 55539A 55539J 55539K 55539K 55618A 55619F 55620B 55630A 58804A 58804A 58808 58810J 58811C 58905 58907 58916 58995A 58996A 9010506170 9011908358 9011908482 9015950287 9046804177 9046804177 9046806080 9046806080 9353054010 9354054012 9354054012 9356055012 9356755018
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-22160

GX100..MTM;JZX100..EXCG

 1
55539A - COVER, SPARE SWITCH HOLE
55539-22160

GX100..MTM;JZX100..EXCG

 1
55539K - COVER, SPARE SWITCH HOLE
55539-22160

GX100..MTM;JZX100,LX100..EXC,SLT

 1
55539K - COVER, SPARE SWITCH HOLE
55539-22160

GX100..MTM;JZX100,LX100..EXC,SLT

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-22050

GX100..MTM;GX100,JZX100,LX100..ROU,ROUG,ROUS,SC

 1
55619F - HOLDER, CONSOLE BOX CUP, NO.2
55619-22020G0

LX100..SC;GX100..MTM

DK.SAGE,TRIM6#

 1
55619-22020E0

GX100..MTM

ORCHID BROWN,TRIM4#

 1
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-22040G0

LX100..SC;GX100..MTM

DK.SAGE,TRIM6#

 1
55620-22040E0

GX100..MTM

ORCHID BROWN,TRIM4#

 1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-22010E0

GX100..MTM

ORCHID BROWN,TRIM4#

 1
55630-22010G0

LX100..SC;GX100..MTM

DK.SAGE,TRIM6#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-22160

GX100..MTM

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-22160

GX100..MTM

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-22120E0

GX100..MTM

ORCHID BROWN,TRIM4#

 1
58808-22120G0

GX100..MTM

DK.SAGE,TRIM6#

 1
58810J - BOX ASSY, CONSOLE
58810-22560G0

GX100..MTM

DK.SAGE,TRIM6#

 1
58810-22560E0

GX100..MTM

ORCHID BROWN,TRIM4#

 1
58811C - CAP(FOR CONSOLE)
90339-10014E1

GX10#,JZX10#,LX100..EXC,EXCG,SLT

ORCHID,TRIM4#

 2
90339-10014G1

GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT

SAGE,TRIM6#

 2
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-22380G0

GX100..MTM

SAGE,TRIM6#

 1
58905-22380E0

GX100..MTM

ORCHID,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-22020

GX100..MTM;GX100,JZX100,LX100..ROU,ROUG,ROUS,SC

 2
58916 - MAT, BOX BOTTOM
58916-22100

GX100..MTM;GX100,JZX100,LX100..ROU,ROUG,ROUS,SC

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-22030

GX100..MTM

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-22070

GX10#,JZX10#,LX100

 1
Common parts
90105-06170
90119-08358
90119-08482
90159-50287
90468-04177
90468-06080
93530-54010
93540-54012
93560-55012
93567-55018
