GX100-CEMQK (1996)
Toyota Cresta
Production
Sep 1996
-
Aug 1998
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )MTM

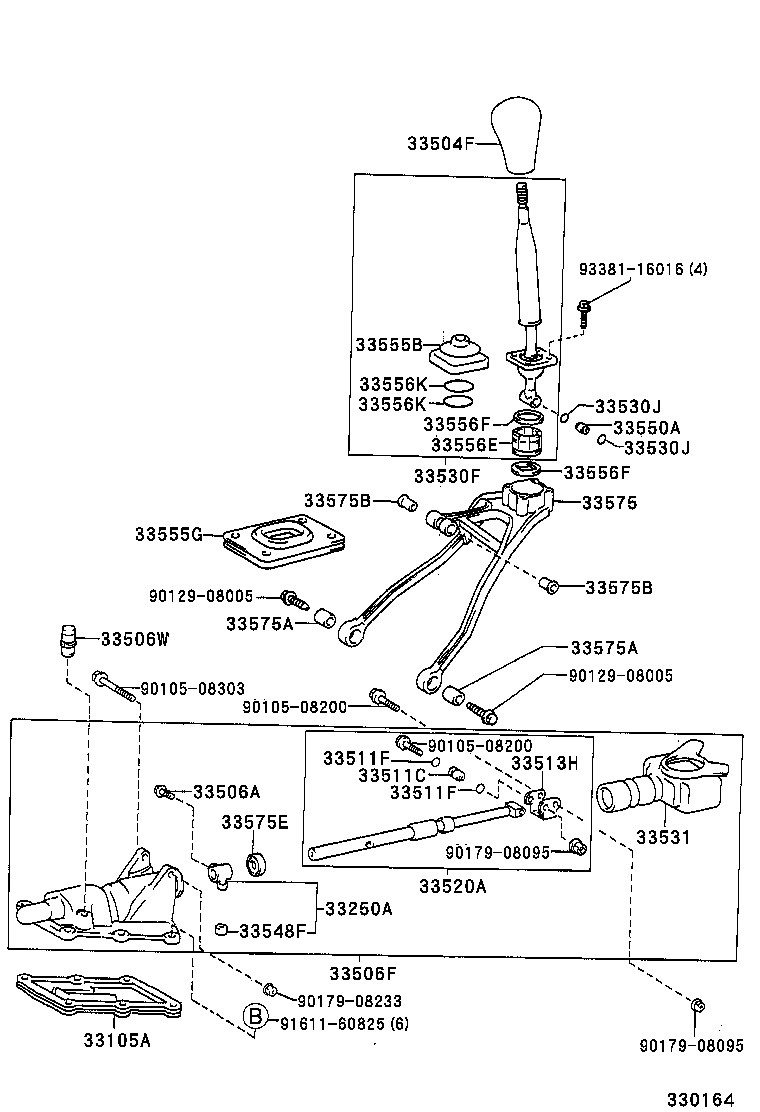

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM) | ||||
| 33105-22010 |
GX100..MTM |
1 | ||
| 33250A - LEVER ASSY, SHIFT, INNER NO.2 | ||||
| 33250-22011 |
GX100..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180E8 |
GX100..MTM ORCHID BROWN,TRIM4# |
1 | ||
| 33504-12180G3 |
GX100..MTM DK.SAGE,TRIM6# |
1 | ||
| 33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90105-08079 |
GX100..MTM |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-22091 |
GX100..MTM |
1 | ||
| 33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER) | ||||
| 90930-03114 |
GX100..MTM |
1 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08134 |
GX100..MTM |
1 | ||
| 33511F - RING, O (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90301-11015 |
GX100..MTM |
2 | ||
| 33511F - RING, O (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90301-11015 |
GX100..MTM |
2 | ||
| 33513H - YOKE, CONTROL SHAFT, NO.1 | ||||
| 33513-22030 |
GX100..MTM |
1 | ||
| 33520A - SHAFT ASSY, FLOOR SHIFT CONTROL | ||||
| 33520-22181 |
GX100..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-24050 |
GX100..MTM |
1 | ||
| 33530J - RING, O (FOR SHIFT LEVER) | ||||
| 90301-11015 |
GX100..MTM |
2 | ||
| 33530J - RING, O (FOR SHIFT LEVER) | ||||
| 90301-11015 |
GX100..MTM |
2 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-22021 |
GX100..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-22020 |
GX100..MTM |
1 | ||
| 33550A - COLLAR FOR FLOOR SHIFT) | ||||
| 90387-08134 |
GX100..MTM |
1 | ||
| 33555B - BOOT, SHIFT & SELECT LEVER | ||||
| 33555-22130 |
GX100..MTM |
1 | ||
| 33555G - BOOT, SHIFT & SELECT LEVER, NO.3 | ||||
| 33555-22110 |
GX100..MTM |
1 | ||
| 33556E - CUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 33556-14031 |
GX100..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-14050 |
GX100..MTM 下側 |
1 | ||
| 33556-14041 |
GX100..MTM 上側 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-14050 |
GX100..MTM 下側 |
1 | ||
| 33556-14041 |
GX100..MTM 上側 |
1 | ||
| 33556K - RING, O, N0.1 (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 96711-19033 |
GX100..MTM |
2 | ||
| 33556K - RING, O, N0.1 (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 96711-19033 |
GX100..MTM |
2 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-22212 |
GX100..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22010 |
GX100..MTM |
2 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22010 |
GX100..MTM |
2 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22020 |
GX100..MTM |
2 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33546-22020 |
GX100..MTM |
2 | ||
| 33575E - SEAL, OIL (FOR FLOOR SHIFT CONTROL SHIFT LEVER RETAINER | ||||
| 90311-20006 |
GX100..MTM |
1 | ||
| Common parts | ||||
| 90105-08200 | ||||
| 90105-08303 | ||||
| 90129-08005 | ||||
| 90179-08095 | ||||
| 90179-08233 | ||||
| 91611-60825 | ||||
| 93381-16016 | ||||
