GX100-CEMQK (1996)
Toyota Cresta
Production
Sep 1996
-
Aug 1998
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9609-9808)MTM

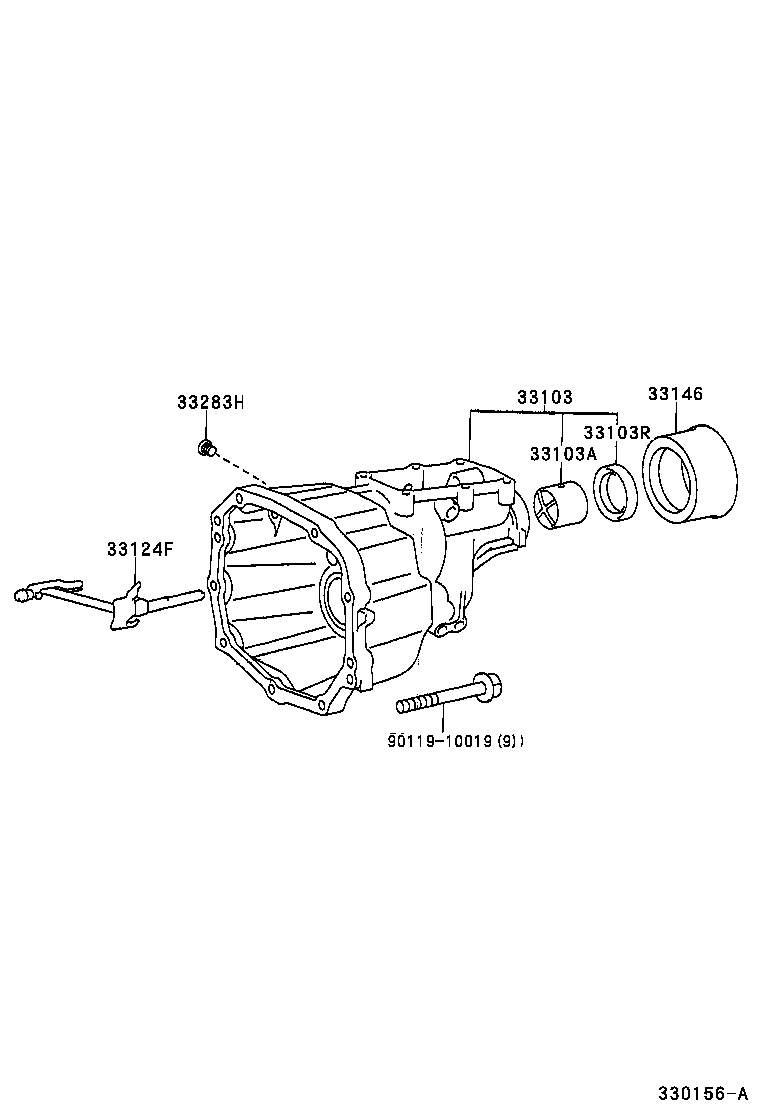

Click highlighted areas on diagram
W57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-30201 |
GX100..MTM |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73105 |
GX100..MTM |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38032 |
GX100..MTM |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33106-30040 |
GX100..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30020 |
GX100..MTM |
1 | ||
| 33283H - PLUG, W/HEAD STRAIGHT SCREW | ||||
| 90341-10065 |
GX100..MTM |
1 | ||
| Common parts | ||||
| 90119-10019 | ||||
