GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609-9808)MTM

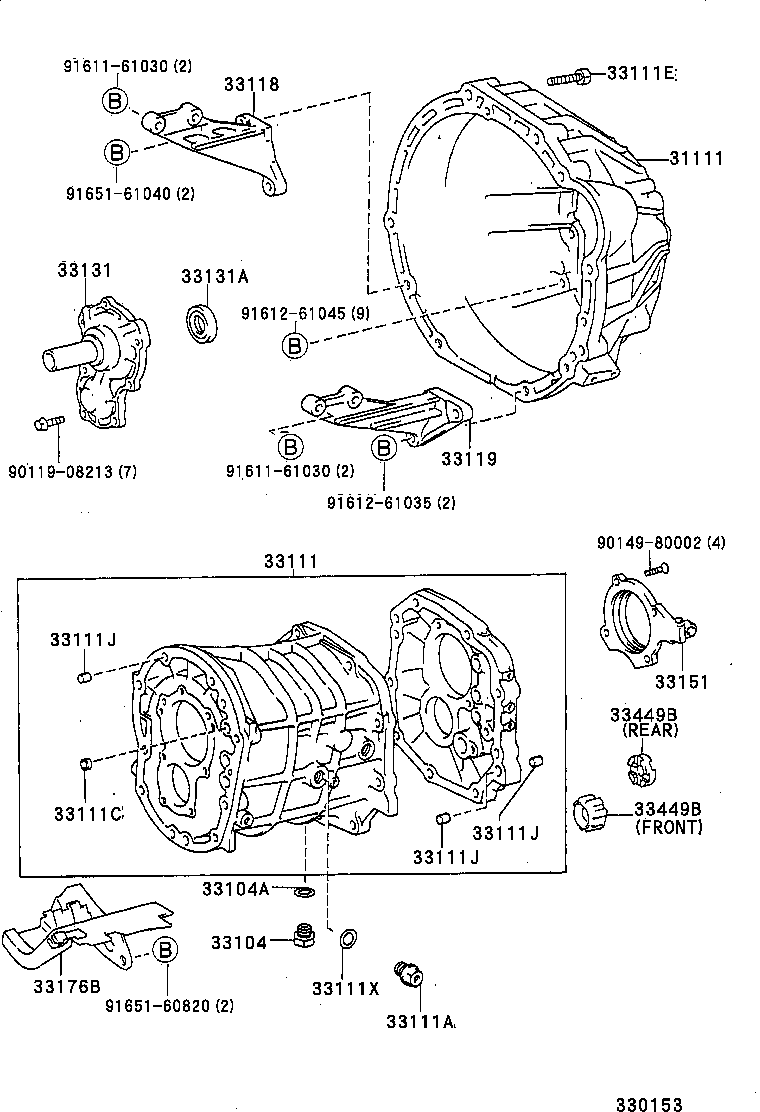

Click highlighted areas on diagram

W57

diagram 31111 33104 33104A 33111 33111A 33111C 33111E 33111J 33111J 33111J 33111X 33118 33119 33131 33131A 33151 33176B 33449B 33449B 9011908213 9014980002 9161161030 9161161030 9161261035 9161261045 9165160820 9165161040
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-22130

GX100..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

GX100..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

GX100..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-30071

GX100..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

GX100..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-41800

GX100..MTM

外径=18

 2
33111E - BOLT(FOR TRANSMISSION CASE & ENGINE SETTING)
91619-61250

GX100..MTM

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX100..MTM

長さ=16,外径=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX100..MTM

長さ=16,外径=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX100..MTM

長さ=16,外径=12

 6
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

GX100..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22051

GX100..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22042

GX100..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-30080

GX100..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014

GX100..MTM

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-30020

GX100..MTM

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-30020

GX100..MTM

 1
33449B - MAGNET, TRANSMISSION
33449-30020

GX100..MTM

ﾌﾛﾝﾄ

 1
33449-30010

GX100..MTM

ﾘﾔ

 1
33449B - MAGNET, TRANSMISSION
33449-30020

GX100..MTM

ﾌﾛﾝﾄ

 1
33449-30010

GX100..MTM

ﾘﾔ

 1
Common parts
90119-08213
90149-80002
91611-61030
91612-61035
91612-61045
91651-60820
91651-61040
