GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

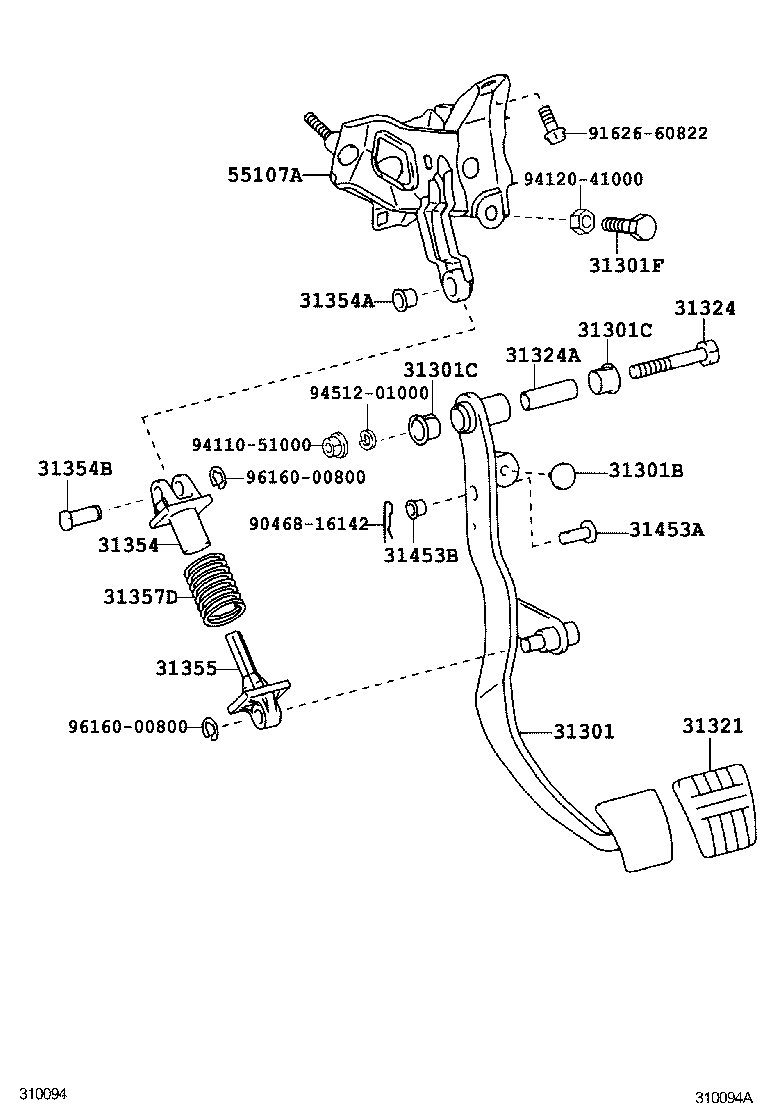

ILLUST NO. 1 OF 2(9609-9808)MTM

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31321 31324 31324A 31354 31354A 31354B 31355 31357D 31453A 31453B 55107A 9046816142 9162660822 9411051000 9412041000 9451201000 9616000800 9616000800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-22260

GX100..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

GX100..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GX100..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GX100..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

GX100..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

GX100..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

GX100..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

GX100..MTM

 1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-20030

GX100..MTM

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019

GX100..MTM

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127

GX100..MTM

 1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-20030

GX100..MTM

 1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90501-35021

GX100..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

GX100..MTM

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033

GX100..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-22170

GX100..MTM

 1
Common parts
90468-16142
91626-60822
94110-51000
94120-41000
94512-01000
96160-00800

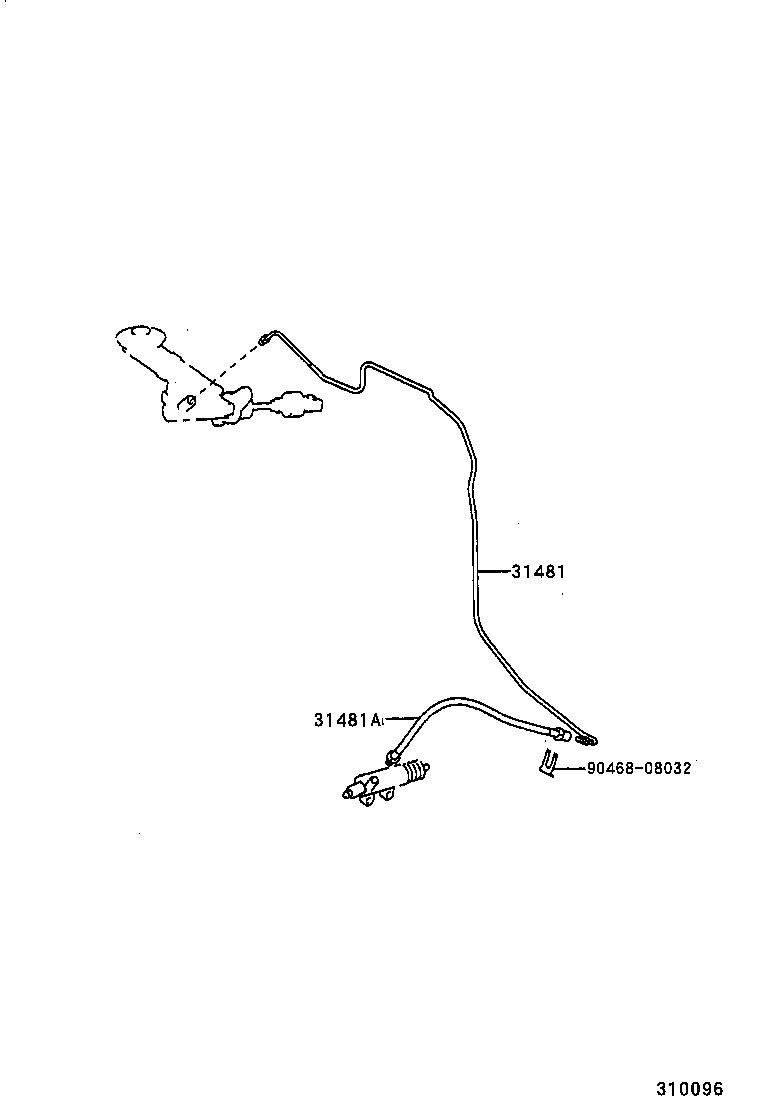

ILLUST NO. 2 OF 2(9609-9808)MTM

Click highlighted areas on diagram

diagram 31481 31481A 9046808032
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-22500

GX100..MTM

 1
31481A - HOSE, CLUTCH, NO.1
96940-32655

GX100..MTM

 1
Common parts
90468-08032
