GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609-9808)MTM

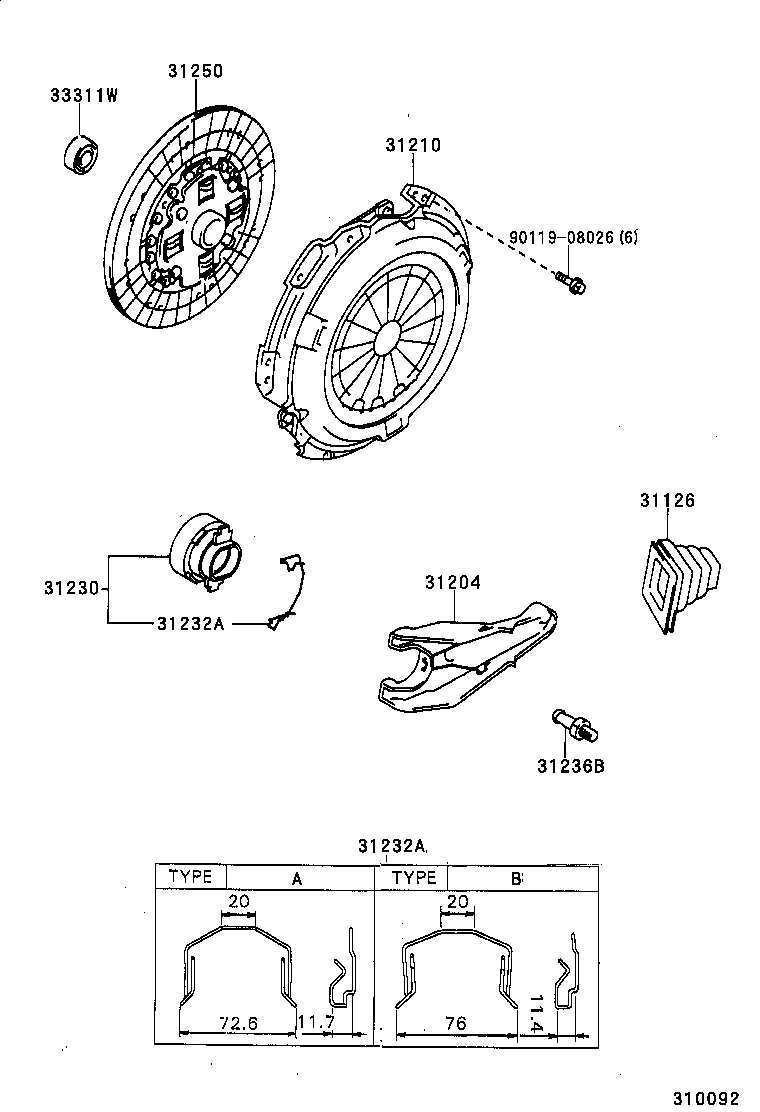

Click highlighted areas on diagram

W57

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20070

GX100..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35050

GX100..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-22160

GX100..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35090

GX100..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

GX100..MTM

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35040

GX100..MTM

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

GX100..MTM

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35040

GX100..MTM

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31236B - SUPPORT, RELEASE FORK
31236-30060

GX100..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-35370

GX100..MTM

 1
31250-22360

GX100..MTM

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12003

GX100..MTM

 1
Common parts
90119-08026
