GX100-CEMQK (1996)
Toyota Cresta
(9609-9808)1GFE
12V 80A

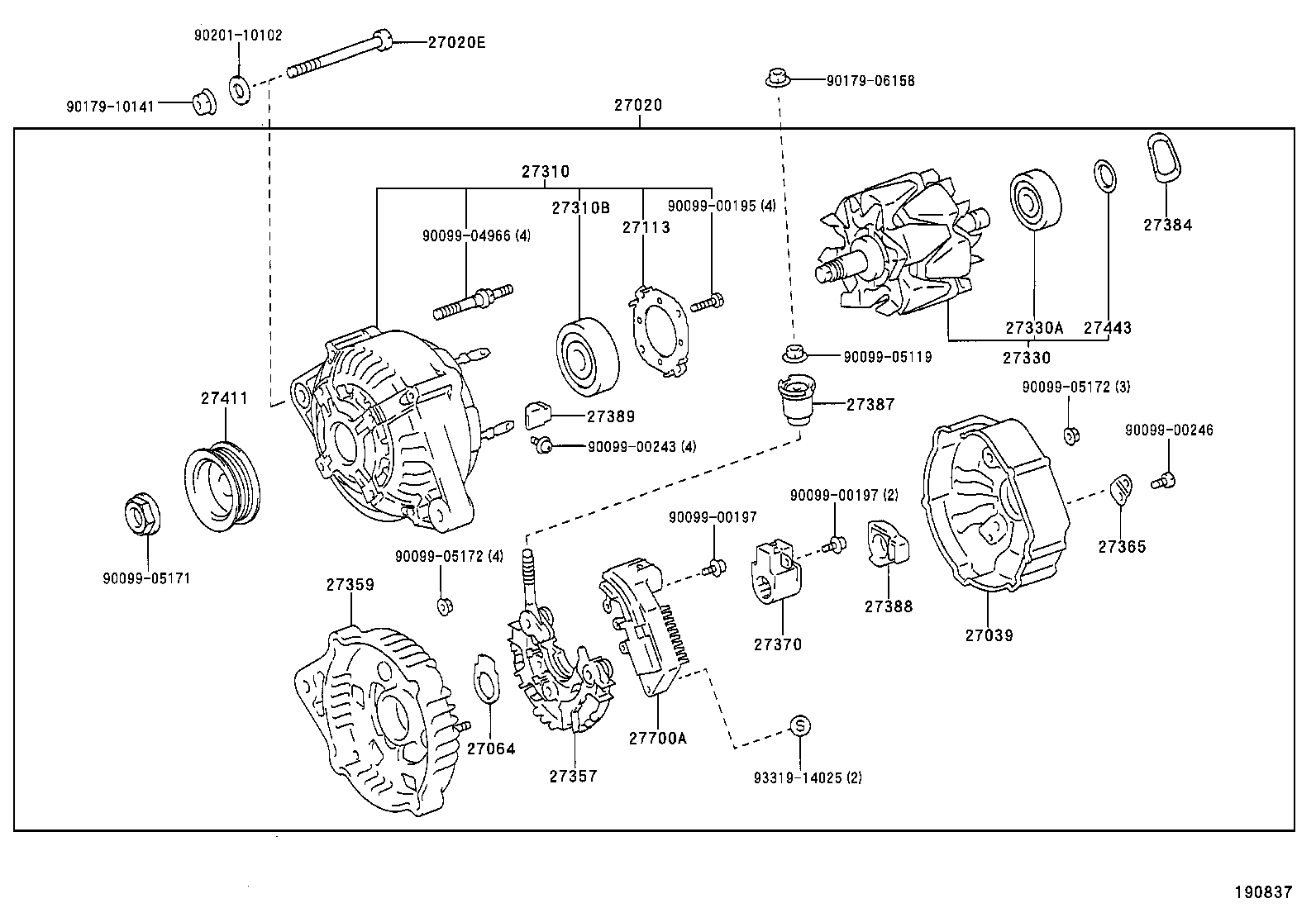

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-70380 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27060-70460 |
1GFE..GX100..MTM 12V 80A,ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10133 |
1GFE..GX100 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27039-16380 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27039-55080 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27312-70200 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-70100 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27310-74480 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-10178 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27330-64570 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27330-72101 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1GFE,2LTE..GX10#,LX100 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27357-63020 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74330 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27359-70260 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27370-35060 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27387-70170 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27387-70171 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1GFE,1JZ#,2JZGE,2LTE..GX100,JZX10#,LX100 |
1 | ||
| 27388-42010 |
1GFE,1JZGTE,2JZGE,2LTE..GX100,JZX100,101,LX100 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100 |
4 | ||
| 27389-63020 |
1GFE..GX100..MTM 12V 70A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-70330 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27411-70261 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-46050 |
1GFE..GX100..MTM |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 90179-10141 | ||||
| 90201-10102 | ||||
| 93319-14025 | ||||
(9609-9808)1GFE..MTM
12V 70A

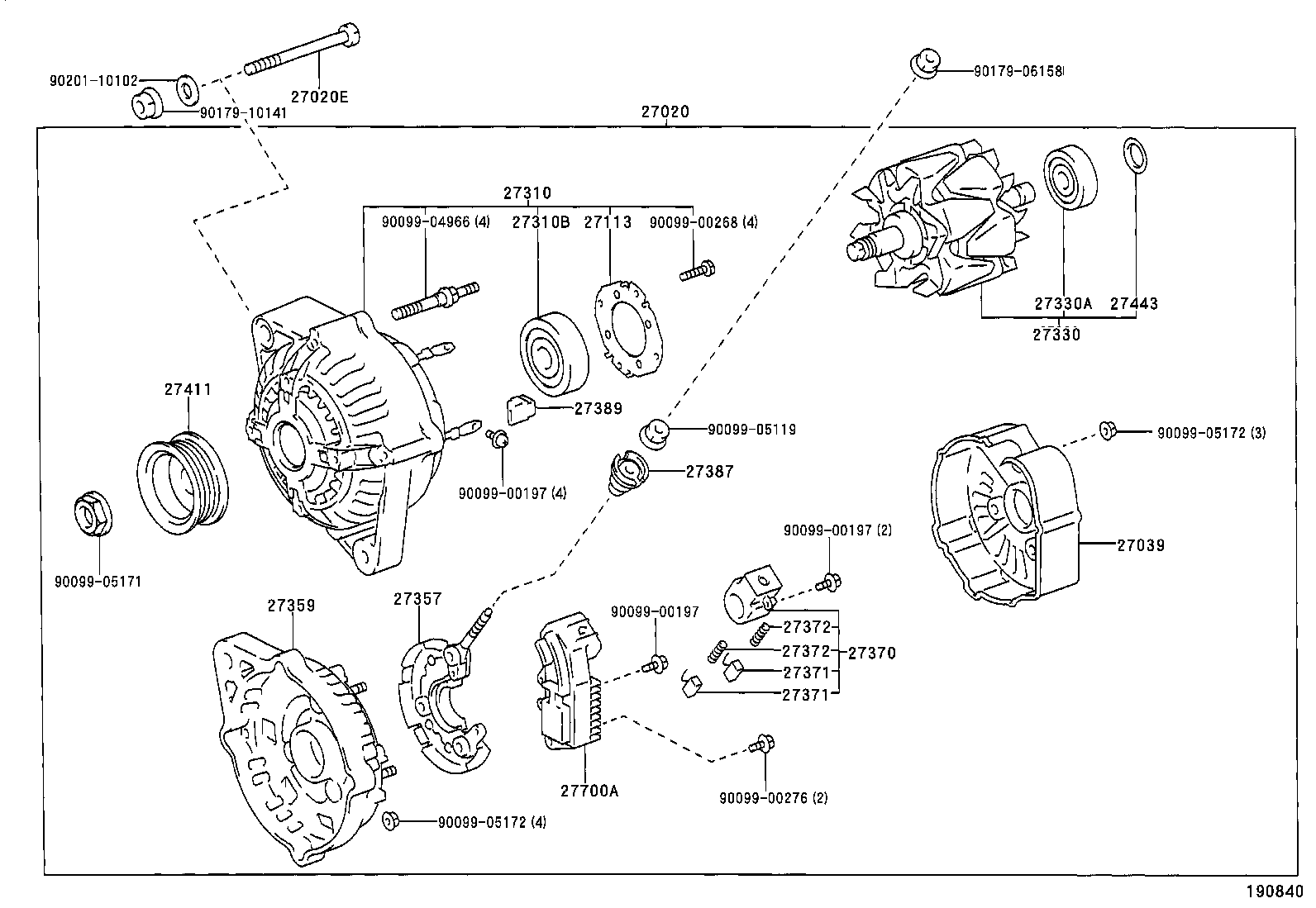

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-70380 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27060-70460 |
1GFE..GX100..MTM 12V 80A,ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10133 |
1GFE..GX100 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27039-16380 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27039-55080 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27312-70200 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-70100 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27310-74480 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-10178 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27330-64570 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27330-72101 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1GFE,2LTE..GX10#,LX100 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27357-63020 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74330 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27359-70260 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27370-35060 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1GFE..GX100..MTM |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1GFE..GX100..MTM |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1GFE..GX100..MTM |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1GFE..GX100..MTM |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27387-70170 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27387-70171 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100 |
4 | ||
| 27389-63020 |
1GFE..GX100..MTM 12V 70A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-70330 |
1GFE..GX100..MTM 12V 80A, ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 27411-70261 |
1GFE..GX100..MTM 12V 70A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-46050 |
1GFE..GX100..MTM |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00276 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 90179-10141 | ||||
| 90201-10102 | ||||
