GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1GFE

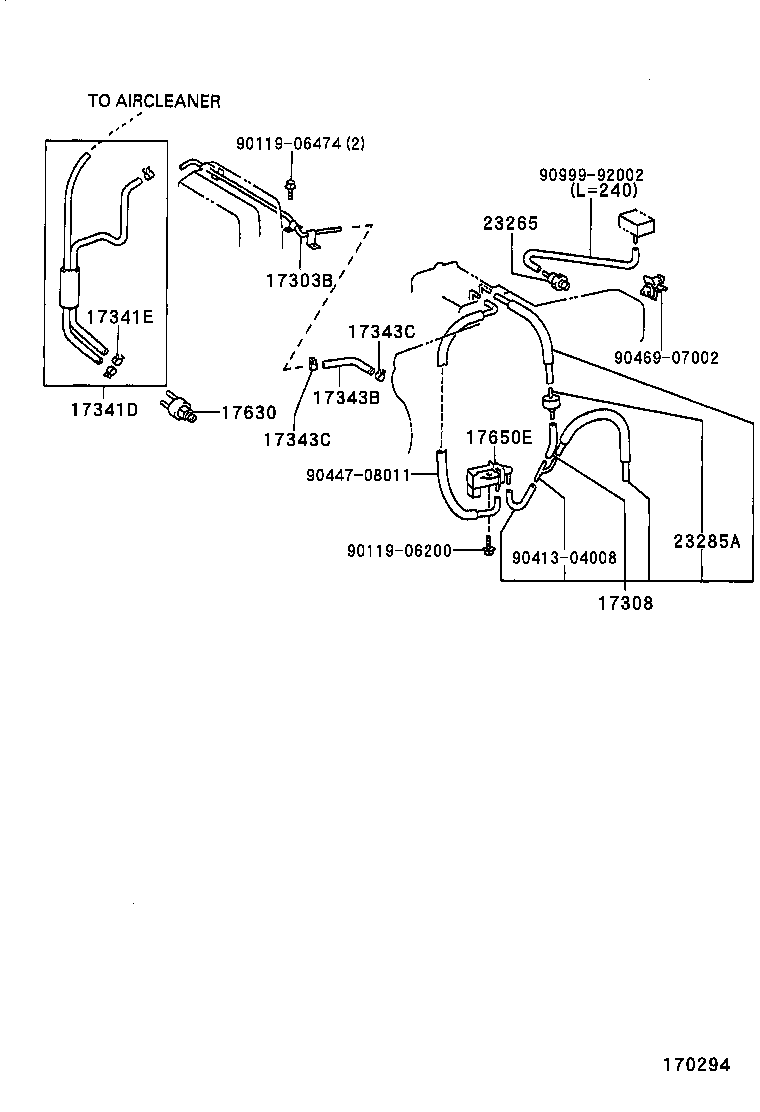

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9609-9808)1GFE

Click highlighted areas on diagram

diagram 17303B 17308 17341D 17341E 17343B 17343C 17343C 17630 17650E 23265 23285A 9011906200 9011906474 9041304008 9044708011 9046907002 9099992002
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-70080

1GFE..GX100

 1
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-70030

1GFE..GX100

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-70250

1GFE..GX100

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-51000

1GFE..GX100

 3
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-70050

1GFE..GX100

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10106

1GFE..GX100

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10106

1GFE..GX100

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70010

1GFE..GX100

 1
17650E - VALVE, VACUUM SWITCHING
90910-12120

1GFE..GX100

 1
23265 - FILTER, GAS, NO.1
90917-11022

1GFE..GX10#

 1
23285A - VALVE, CHECK, NO.1
90917-10080

1GFE..GX100

 1
Common parts
90119-06200
90119-06474
90413-04008
90447-08011
90469-07002
90999-92002
