GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609-9808)1GFE

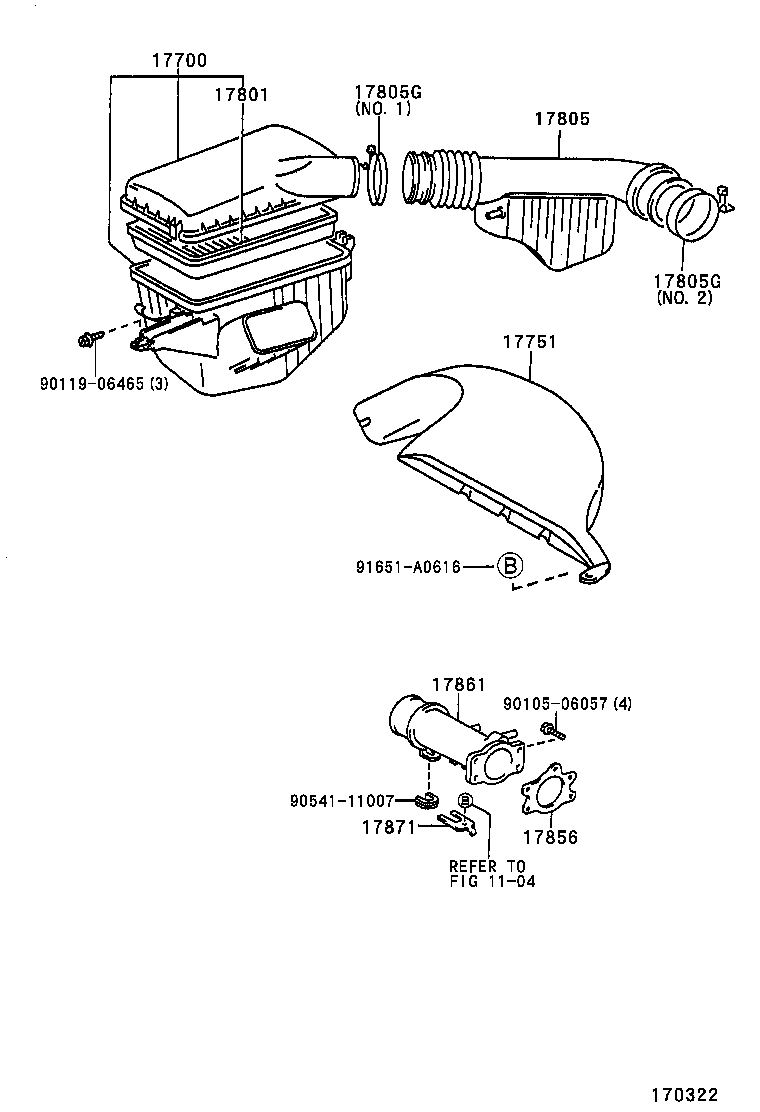

Click highlighted areas on diagram

diagram 1104 17700 17751 17801 17805 17805G 17805G 17856 17861 17871 9010506057 9011906465 9054111007 91651A0616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-70170

1GFE..GX100

 1
17751 - INLET, AIR CLEANER, NO.1
17751-46090

1GFE..GX100

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46070

1GFE..GX100

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-70010

1GFE..GX100

 1
17805G - CLAMP, HOSE(FOR AIR CONNECTOR)
96111-10850

1GFE..GX100

NO.1

 1
96111-10730

1GFE..GX100

NO.2

 1
17805G - CLAMP, HOSE(FOR AIR CONNECTOR)
96111-10850

1GFE..GX100

NO.1

 1
96111-10730

1GFE..GX100

NO.2

 1
17856 - GASKET, AIR INTAKE FLANGE
17856-70020

1GFE..GX100

 1
17861 - CONNECTOR, INTAKE AIR
17861-70070

1GFE..GX100

 1
17871 - STAY, AIR CONNECTOR
17871-70040

1GFE..GX100

 1
Common parts
90105-06057
90119-06465
90541-11007
91651-A0616
Linked diagrams
1104
