GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609-9808)1GFE

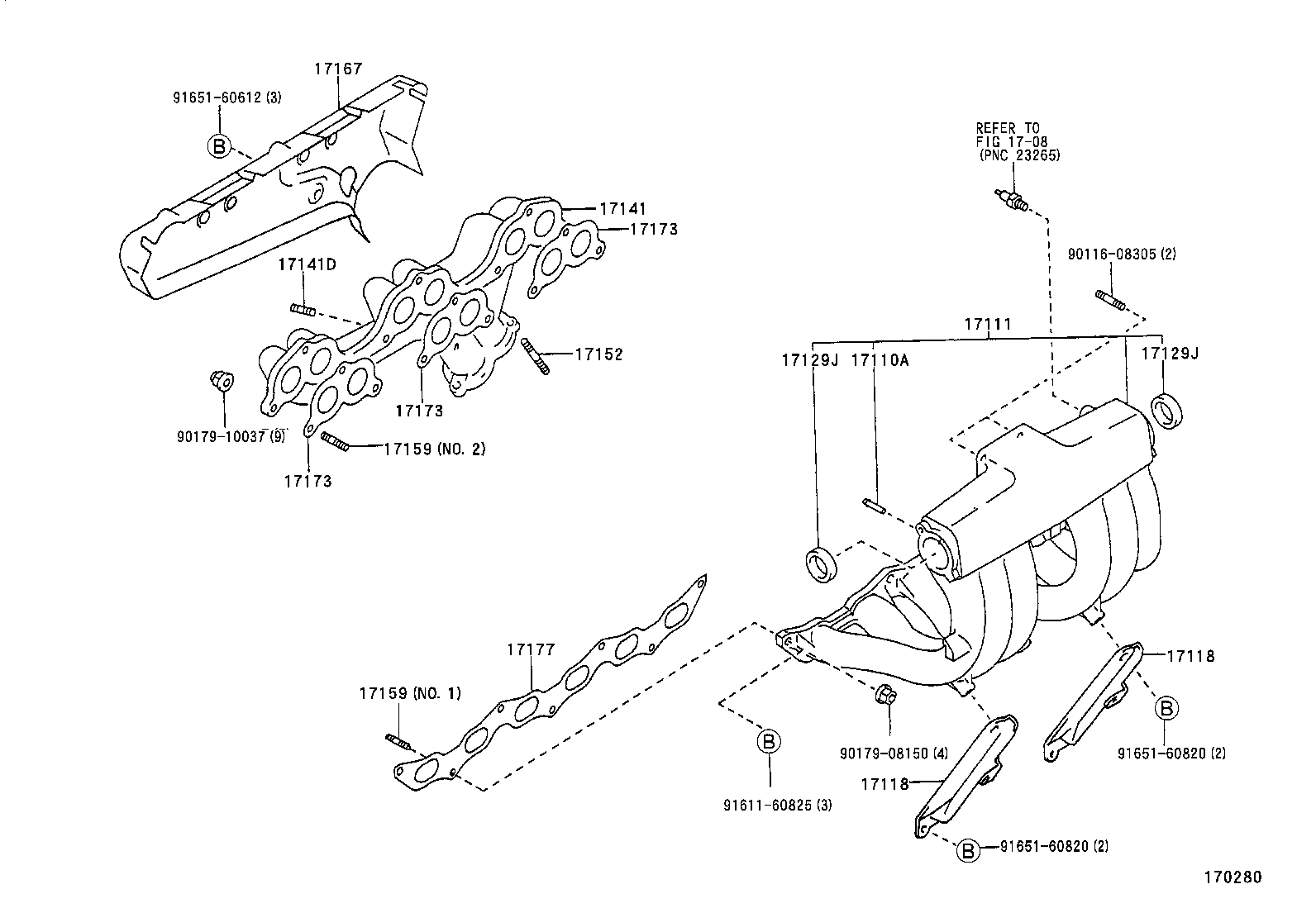

Click highlighted areas on diagram

diagram 1708 17110A 17111 17118 17118 17129J 17129J 17141 17141D 17152 17159 17159 17167 17173 17173 17173 17177 9011608305 9017908150 9017910037 9161160825 9165160612 9165160820 9165160820
Part # Description Qty Price
17110A - UNION, VACUUM HOSE
90406-06002

1GFE..GX100

 1
17111 - MANIFOLD, INTAKE
17101-70080

1GFE..GX100

 1
17118 - STAY, MANIFOLD
17118-70100

1GFE..GX100

 2
17118 - STAY, MANIFOLD
17118-70100

1GFE..GX100

 2
17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
96411-44000

1GFE..GX100

外径=40

 2
17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
96411-44000

1GFE..GX100

外径=40

 2
17141 - MANIFOLD, EXHAUST
17141-70070

1GFE..GX100

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

1GFE..GX10#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

1GFE..GX10#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

1GFE..GX100

NO.2

 9
90116-08281

1GFE..GX100

NO.1

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

1GFE..GX100

NO.2

 9
90116-08281

1GFE..GX100

NO.1

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-70040

1GFE..GX100

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70020

1GFE..GX100

 3
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70020

1GFE..GX100

 3
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-70020

1GFE..GX100

 3
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-70040

1GFE..GX100

 1
Common parts
90116-08305
90179-08150
90179-10037
91611-60825
91651-60612
91651-60820
Linked diagrams
1708
