GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1GFE

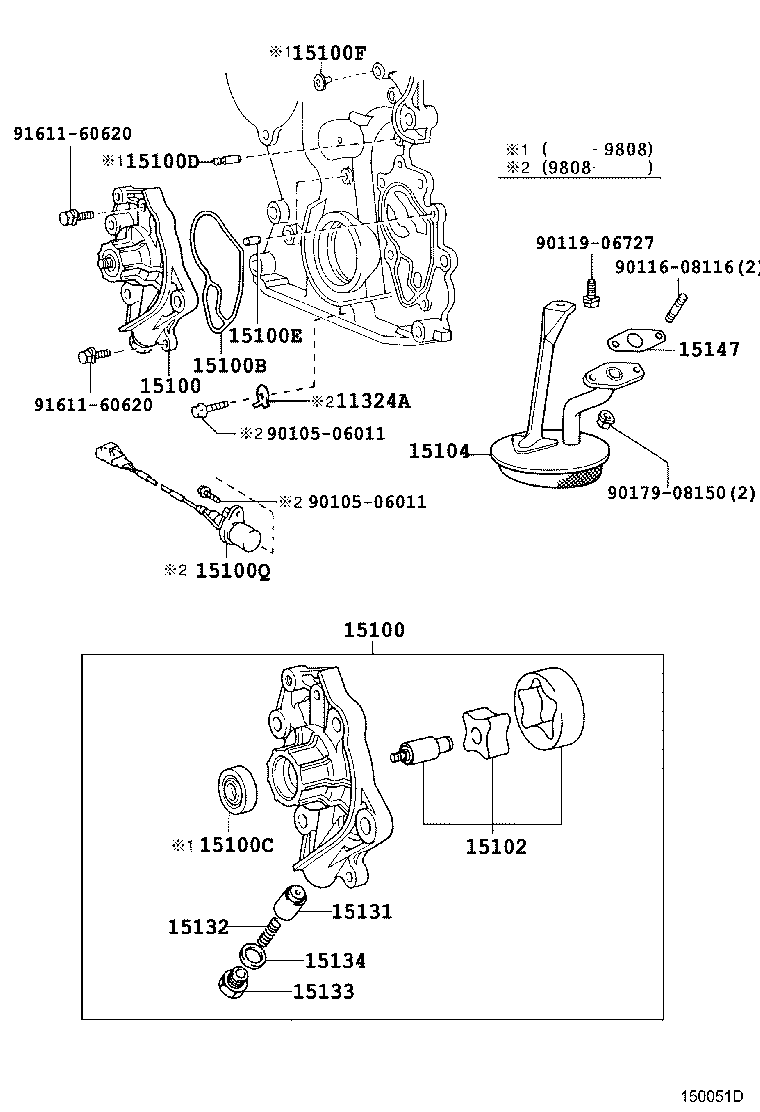

Click highlighted areas on diagram

diagram 11324A 15100 15100 15100B 15100C 15100D 15100E 15100F 15100Q 15102 15104 15131 15132 15133 15134 15147 9010506011 9010506011 9011608116 9011906727 9017908150 9161160620 9161160620
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-70030

1GFE..GX100

 1
15100 - PUMP ASSY, OIL
15100-70030

1GFE..GX100

 1
15100B - RING, O(FOR OIL PUMP)
15188-70010

1GFE..GX100

 1
15100C - SEAL(FOR OIL PUMP)
90029-21005

1GFE..GX100

 1
15100D - PIN(FOR OIL PUMP SET)
15182-70010

1GFE..GX100

 1
15100E - PIN, STRAIGHT (FOR OIL PUMP SET)
15181-70010

1GFE..GX10#

 2
15100F - BUSH (FOR OIL PUMP)
90029-38302

1GFE..GX100

 1
15102 - ROTOR SET, OIL PUMP
15102-70011

1GFE..GX100

 1
15104 - STRAINER SUB-ASSY, OIL
15104-70040

1GFE..GX100

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

1GFE..GX10#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

1GFE..GX10#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

1GFE..GX10#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-70030

1GFE..GX100

 1
15147 - GASKET, OIL STRAINER
15147-70021

1GFE..GX100

 1
Common parts
90105-06011
90116-08116
90119-06727
90179-08150
91611-60620
