GX100-CEMQK (1996)

Toyota Cresta

Production Sep 1996 - Aug 1998
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )1GFE..GX100

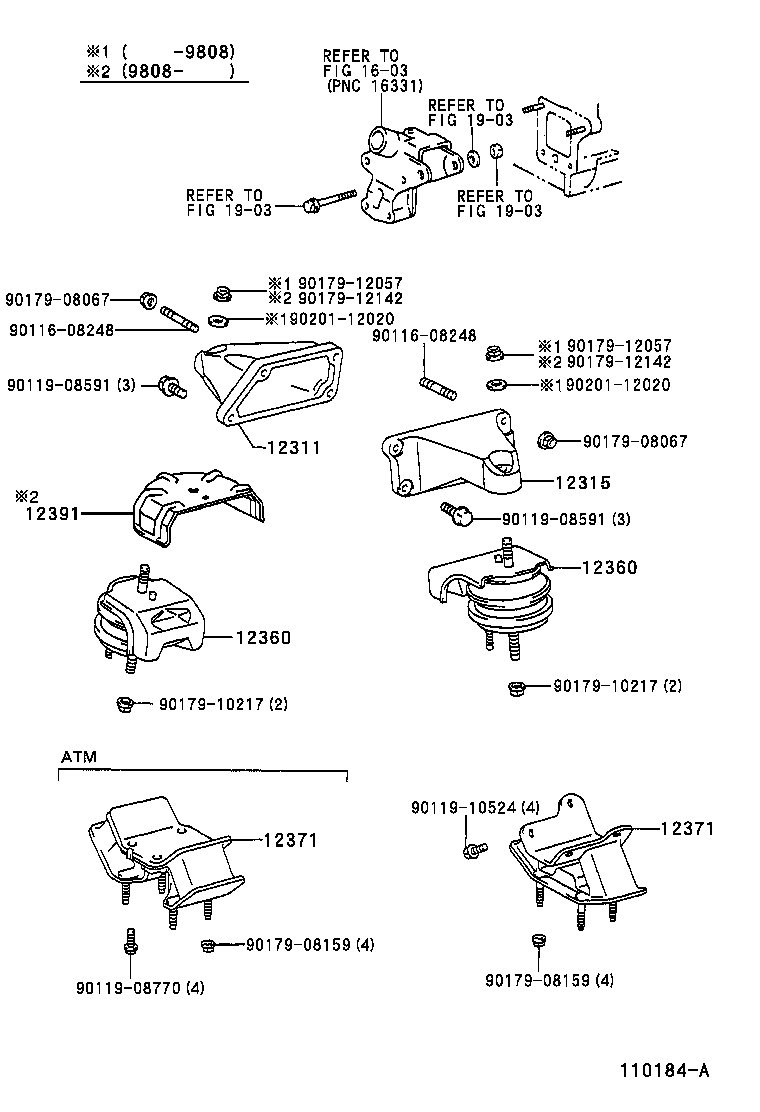

Click highlighted areas on diagram

diagram 12311 12315 12360 12360 12371 12371 12391 1603 1903 1903 1903 9011608248 9011608248 9011908591 9011908591 9011908770 9011910524 9017908067 9017908067 9017908159 9017908159 9017910217 9017910217 9017912057 9017912057 9017912142 9017912142 9020112020 9020112020
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70120

1GFE..GX100

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70100

1GFE..GX100

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-70030

1GFE..GX100

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-70030

1GFE..GX100

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-70060

1GFE..GX100..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-70060

1GFE..GX100..MTM

 1
Common parts
90116-08248
90119-08591
90119-08770
90119-10524
90179-08067
90179-08159
90179-10217
90179-12057
90179-12142
90201-12020
Linked diagrams
1603
1903
