NL50-BEPXX (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Dec 1997
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

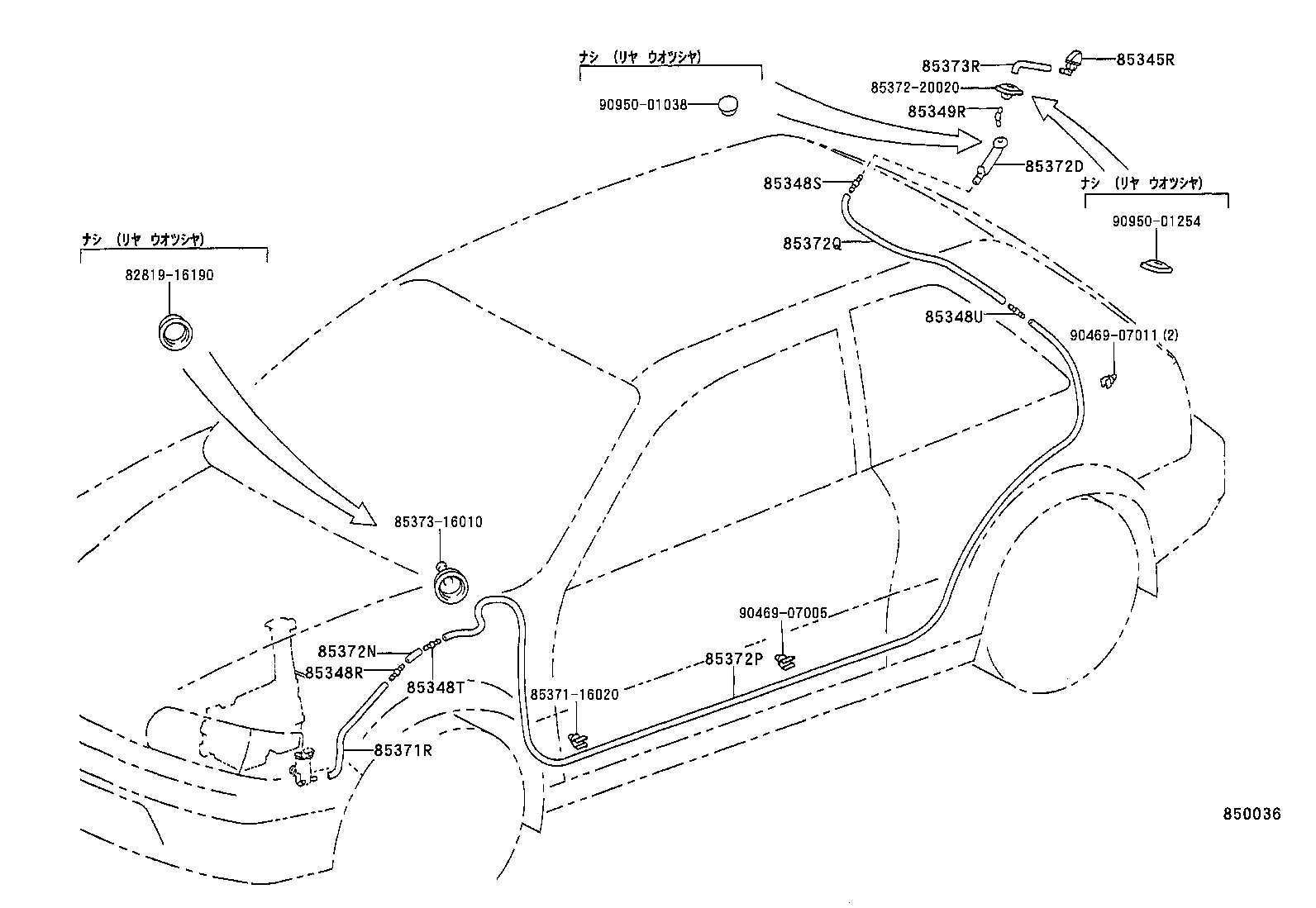

Click highlighted areas on diagram

diagram 8281916190 85345R 85348R 85348S 85348T 85348U 85349R 8537116020 85371R 8537220020 85372D 85372N 85372P 85372Q 8537316010 85373R 9046907005 9046907011 9095001038 9095001254
Part # Description Qty Price
Common parts
82819-16190
85371-16020
85372-20020
85373-16010
90469-07005
90469-07011
90950-01038
90950-01254
