NL50-BEPDX (1994)
Toyota Corsa/Tercel

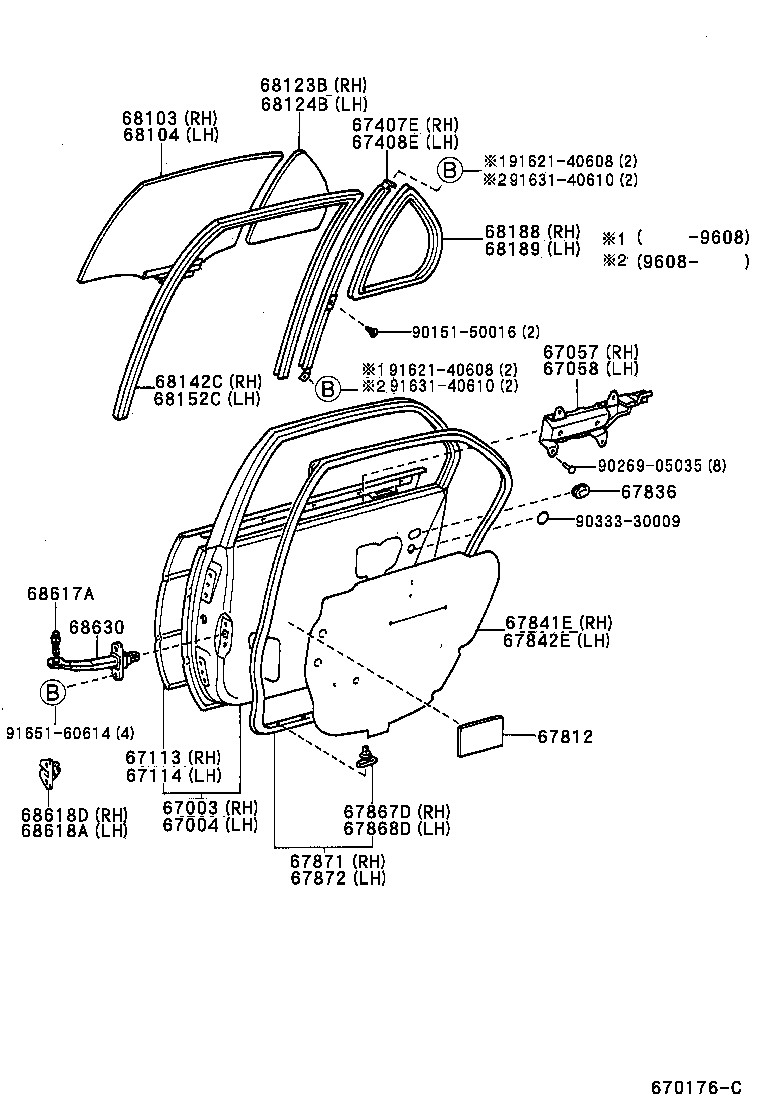

ILLUST NO. 2 OF 2(9409- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-16260 |
EL5#,NL50..4DS..(AX,JOI) |
1 | ||
| 67003-16250 |
EL5#,NL50..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-16250 |
EL5#,NL50..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67004-16260 |
EL5#,NL50..4DS..(AX,JOI) |
1 | ||
| 67057 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH | ||||
| 67057-16010 |
EL5#,NL50..4DS |
1 | ||
| 67058 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH | ||||
| 67058-16010 |
EL5#,NL50..4DS |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-16100 |
EL5#,NL50..4DS |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-16100 |
EL5#,NL50..4DS |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-16070 |
EL5#,NL50..4DS |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-16070 |
EL5#,NL50..4DS |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-20060 |
EL5#,NL50..4DS |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-16150 |
EL5#,NL50..4DS..(AX,JOI) |
1 | ||
| 67841-16160 |
EL5#,NL50..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-16150 |
EL5#,NL50..4DS..(AX,JOI) |
1 | ||
| 67842-16090 |
EL5#,NL50..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
EL5#,NL50..4DS |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
EL5#,NL50..4DS |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-16210 |
EL5#,NL50..4DS |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-16210 |
EL5#,NL50..4DS |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-16060 |
EL5#,NL50..4DS *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68103-16060 |
EL5#,NL50..4DS..(AX,JOI) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68103-16050 |
EL5#,NL50..4DS *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-16060 |
EL5#,NL50..4DS *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68104-16050 |
EL5#,NL50..4DS *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68104-16060 |
EL5#,NL50..4DS..(AX,JOI) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-16170 |
EL5#,NL50..4DS..(AX,JOI) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123-16160 |
EL5#,NL50..4DS *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68123-16170 |
EL5#,NL50..4DS *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-16160 |
EL5#,NL50..4DS *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68124-16170 |
EL5#,NL50..4DS..(AX,JOI) *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124-16170 |
EL5#,NL50..4DS *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-16100 |
EL5#,NL50..4DS |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-16020 |
EL5#,NL50..4DS |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-16080 |
EL5#,NL50..4DS |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-16080 |
EL5#,NL50..4DS |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-12030 |
EL5#,NL50..4DS |
2 | ||
| 68617-20011 |
EL5#,NL50..4DS |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 61377-16030 |
EL5#,NL50..4DS |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 61377-16030 |
EL5#,NL50..4DS |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-16090 |
EL5#,NL50..4DS |
2 | ||
| Common parts | ||||
| 90151-50016 | ||||
| 90269-05035 | ||||
| 90333-30009 | ||||
| 91621-40608 | ||||
| 91631-40610 | ||||
| 91651-60614 | ||||
ILLUST NO. 1 OF 2(9409- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-16610B0 |
EL5#,NL50..4DS..(AX,JOI) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-16540B1 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 67630-16620B0 |
EL5#,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-16550B3 |
EL5#,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),BLUISH GRAY,TRIM1# |
1 | ||
| 67630-16621B1 |
EL5#,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-16611B1 |
EL5#,NL50..4DS..(AX,JOI) SHADOW GRAY,TRIM1# |
1 | ||
| 67630-16611E0 |
EL5#,NL50..4DS..(AX,JOI) OAK,TRIM4# |
1 | ||
| 67630-16621E0 |
EL5#,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),OAK,TRIM4# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-16120 |
EL5#,NL50..4DS ﾗｲﾄ ｸﾞﾚｰ |
6 | ||
| 67771-12050 |
EL5#,NL50..4DS ﾚｯﾄﾞ |
2 | ||
| 67771-16120 |
EL5#,NL50..4DS |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-16550B1 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 67640-16620B0 |
EL5#,NL50..4DS..(AX,JOI) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-16560B3 |
EL5#,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),BLUISH GRAY,TRIM1# |
1 | ||
| 67640-16631E0 |
EL5#,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),OAK,TRIM4# |
1 | ||
| 67640-16621E0 |
EL5#,NL50..4DS..(AX,JOI) OAK,TRIM4# |
1 | ||
| 67640-16621B1 |
EL5#,NL50..4DS..(AX,JOI) SHADOW GRAY,TRIM1# |
1 | ||
| 67640-16630B0 |
EL5#,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-16631B1 |
EL5#,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),SHADOW GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16120 |
EL5#,NL50..4DS ﾗｲﾄ ｸﾞﾚｰ |
6 | ||
| 67771-12050 |
EL5#,NL50..4DS ﾚｯﾄﾞ |
2 | ||
| 67771-16120 |
EL5#,NL50..4DS |
8 | ||
| 67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-12050E0 |
EL5#,NL50..4DS OAK,TRIM4# |
1 | ||
| 69751-12050B0 |
EL5#,NL50..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-12050E0 |
EL5#,NL50..4DS OAK,TRIM4# |
1 | ||
| 69751-12050B0 |
EL5#,NL50..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68174-16070 |
EL5#,NL50..4DS 左側 |
1 | ||
| 68173-16080 |
EL5#,NL50..4DS 右側 |
1 | ||
| 68174-16080 |
EL5#,NL50..4DS 左側 |
1 | ||
| 68173-16070 |
EL5#,NL50..4DS 右側 |
1 | ||
| 68173-16090 |
EL5#,NL50..4DS 右側 |
1 | ||
| 68174-16090 |
EL5#,NL50..4DS 左側 |
1 | ||
| Common parts | ||||
| 90164-60008 | ||||
| 90189-06018 | ||||
| 90189-06205 | ||||
