NL50-BEMXX (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Dec 1997
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409-9712)4DS

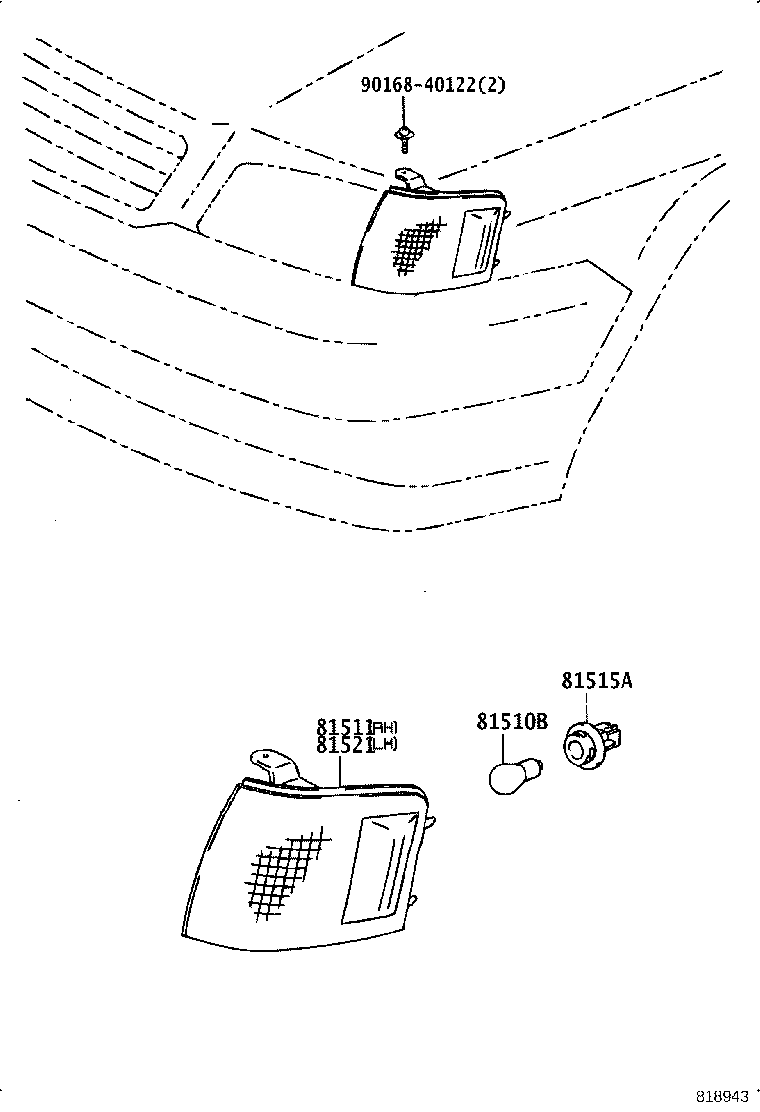

Click highlighted areas on diagram

diagram 81510B 81511 81515A 81521 9016840122
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

EL5#,NL50

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-16230

EL5#,NL50..4DS

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078

EL5#,NL50

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-16230

EL5#,NL50..4DS

 1
Common parts
90168-40122
